ADSL2+ Wireless N300 Modem Router

Watch movies, download music, play online games and enjoy other bandwidth-intensive activities with seamless access to a high-speed 24Mbps ADSL2+ Internet connection. The ADSL2+ Wireless N300 Modem Router integrates a single ADSL broadband service with both high-speed 300Mbps wireless networking and wired connectivity via 4 Ethernet ports. The Router also includes a raft of advanced security features including a built-in firewall, VPN pass-through, denial of service for unwanted guests, SSID hiding and wireless security to safeguard your network.
NB6Plus4WN - ADSL2 Wireless N300 Modem Router
NB6Plus4WN - ADSL2 Wireless N300 Modem Router

ADSL2+. Solid Performance

Designed to heighten and enhance your online experience, this powerful ADSL/2/2+ router delivers Internet access speeds of up to 24Mbps to support heavy bandwidth activities such as high-definition streaming and file sharing between multiple computers.

Personal WiFi

Create a reliable wireless network for devices such as laptops, tablet computers, smart phones, and gaming consoles. With super-fast WiFi speeds of up to 300Mbps you can simultaneously connect all of your WiFi devices to the network without obstructing performance. The ADSL2+ Wireless N300 Modem Router also helps to reduce costs by connecting multiple devices on a single broadband plan.
NB6Plus4WN - ADSL2 Wireless N300 Modem Router
NB6Plus4WN - ADSL2 Wireless N300 Modem Router

High-speed Ethernet

Compliment your WiFi network with high-speed wired device connections via the 4 Ethernet ports. Enjoy interference free data streaming with multiple wired connections to devices such as IPTVs, Blu-ray players and set-top boxes.

Technical Specifications

ADSL COMPLIANCE

  • ADSL standard ITU G.992.3 Annex A (G.dmt.bis) / ITU G.992.5 Annex A
  • ADSL Maximum Rate: 12 Mbps for downstream and 1 Mbps for upstream
  • ADSL2+ Maximum Rate: 24 Mbps for downstream and 1.2 Mbps for upstream
  • Support dying gasp

ATM

  • Compliant to ATM Forum UNI 3.1 / 4.0 Permanent Virtual Circuits (PVCs)
  • Support up to 16 PVCs for UBR, CBR, VBR-nrt, VBR-rt with traffic shaping
  • RFC2684 LLC Encapsulation and VC Multiplexing over AAL5
  • RFC2364 Point-to-Point Protocol (PPP) over AAL5
  • RFC2225 Classical IP and ARP over ATM
  • RFC2516 PPP over Ethernet: support Relay (Transparent Forwarding) and Client functions
  • Support PPPoA or PPPoE Bridged mode
  • OAM F4/F5 End-to-End/Segment Loopback Cells

BRIDGING FEATURES

  • Supports self-learning bridge specified in IEEE 802.1d Transparent Bridging
  • Supports up to 4096 learning MAC addresses
  • Transparent Bridging among 10/100 Mb Ethernet ports and wireless LAN
  • Supports IGMP Snooping
  • Supports 802.1Q VLAN packet pass-through

ROUTING

  • DHCP Client/Relay/Server
  • DNS Relay and embedded DNS server
  • Static routes, RFC1058 RIPv1, RFC1723 RIPv2, Source Routing.
  • ALGs (Application Level Gateways):, VPN pass-through with multiple sessions, SIP, etc
  • Support Port Forwarding; Port Triggering; DMZ host; DDNS; Static DNS;
  • UPnP IGD (Internet Gateway Device) with NAT traversal capability
  • Time protocol can be used to get current time from network time server.
  • Support IGMPv1/v2/v3 Proxy
  • Support QoS for prioritize the transmission of different traffic classes
  • Support port mapping function;
  • Support 802.1Q VLAN Tagging on egress WAN interface

CONFIGURATION AND MANAGEMENT

  • Telnet/HTTP/SSH for local or remote management
  • Configuration file backup and restore
  • Support TR-069 and TR-111 Part 1

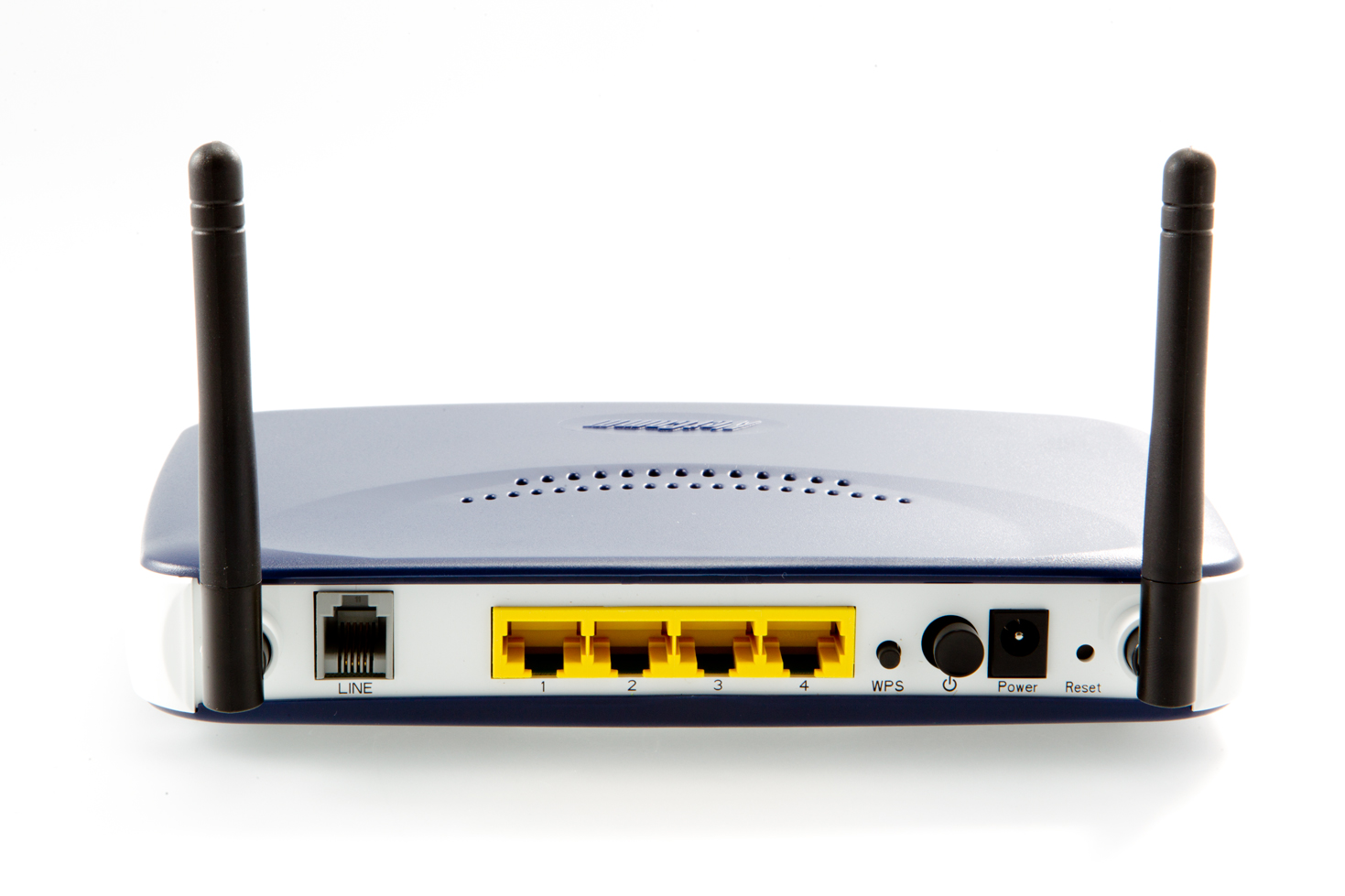

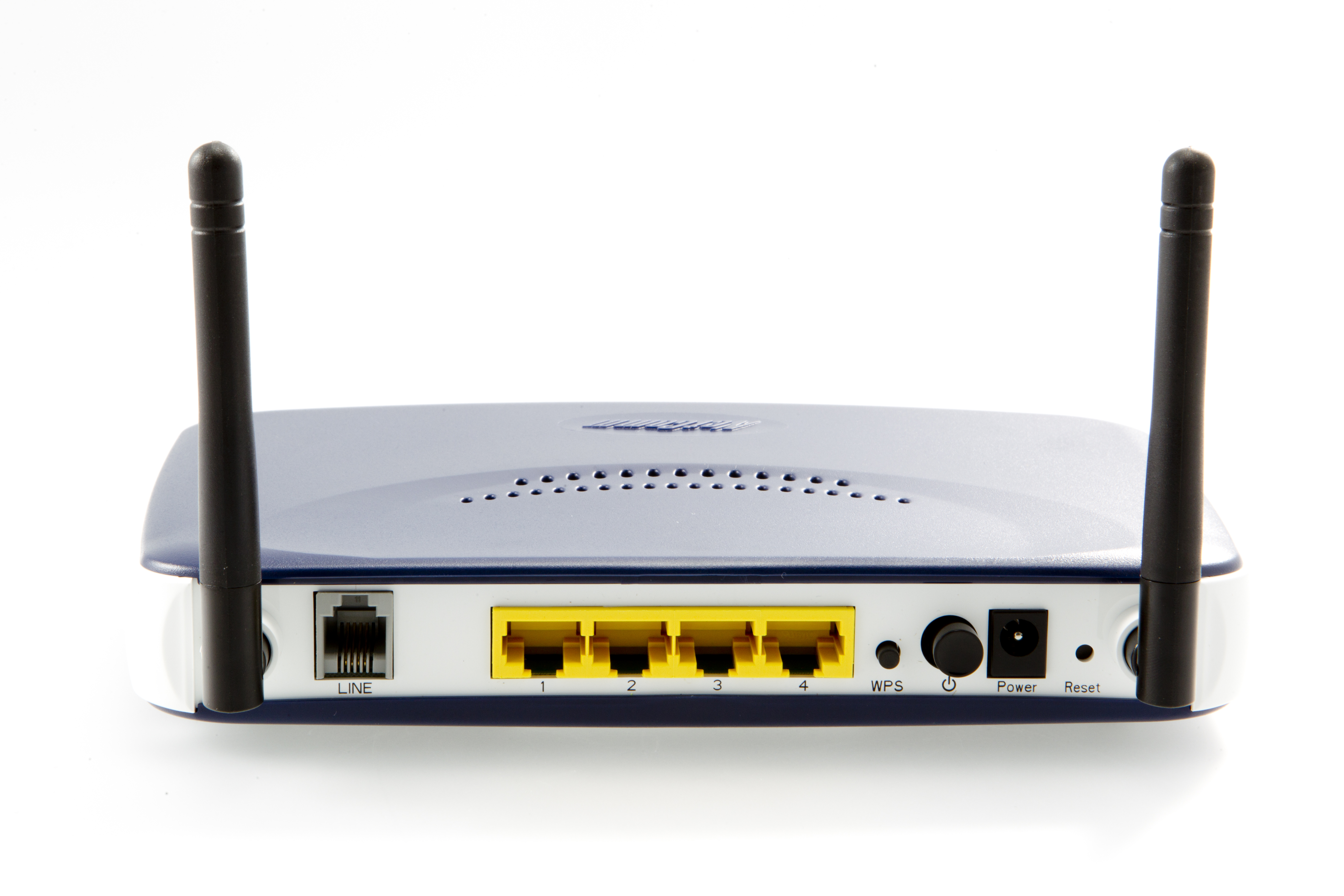

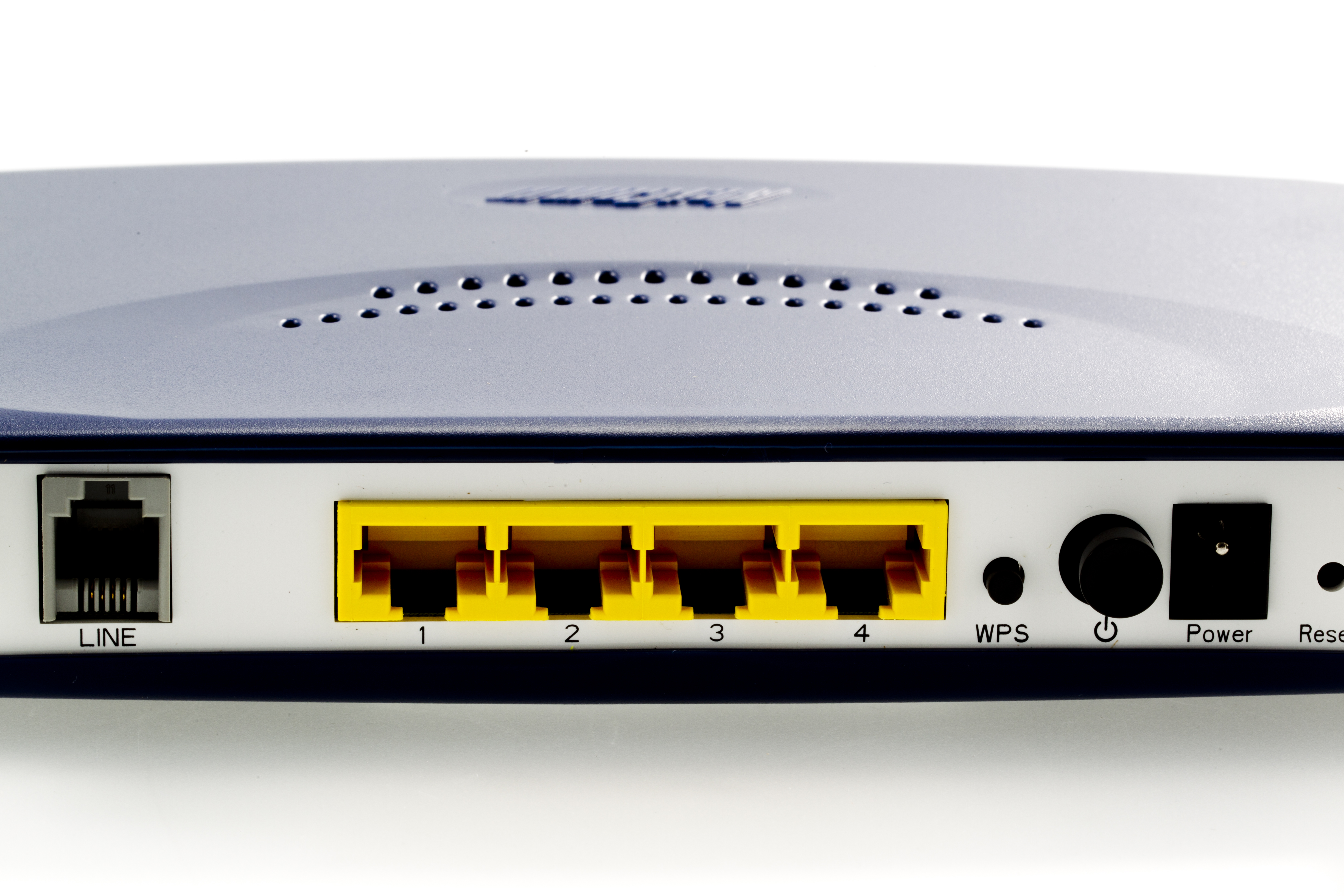

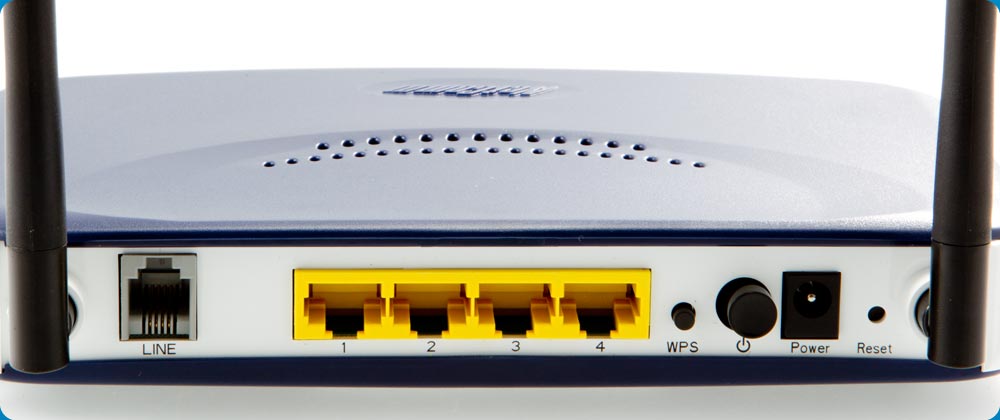

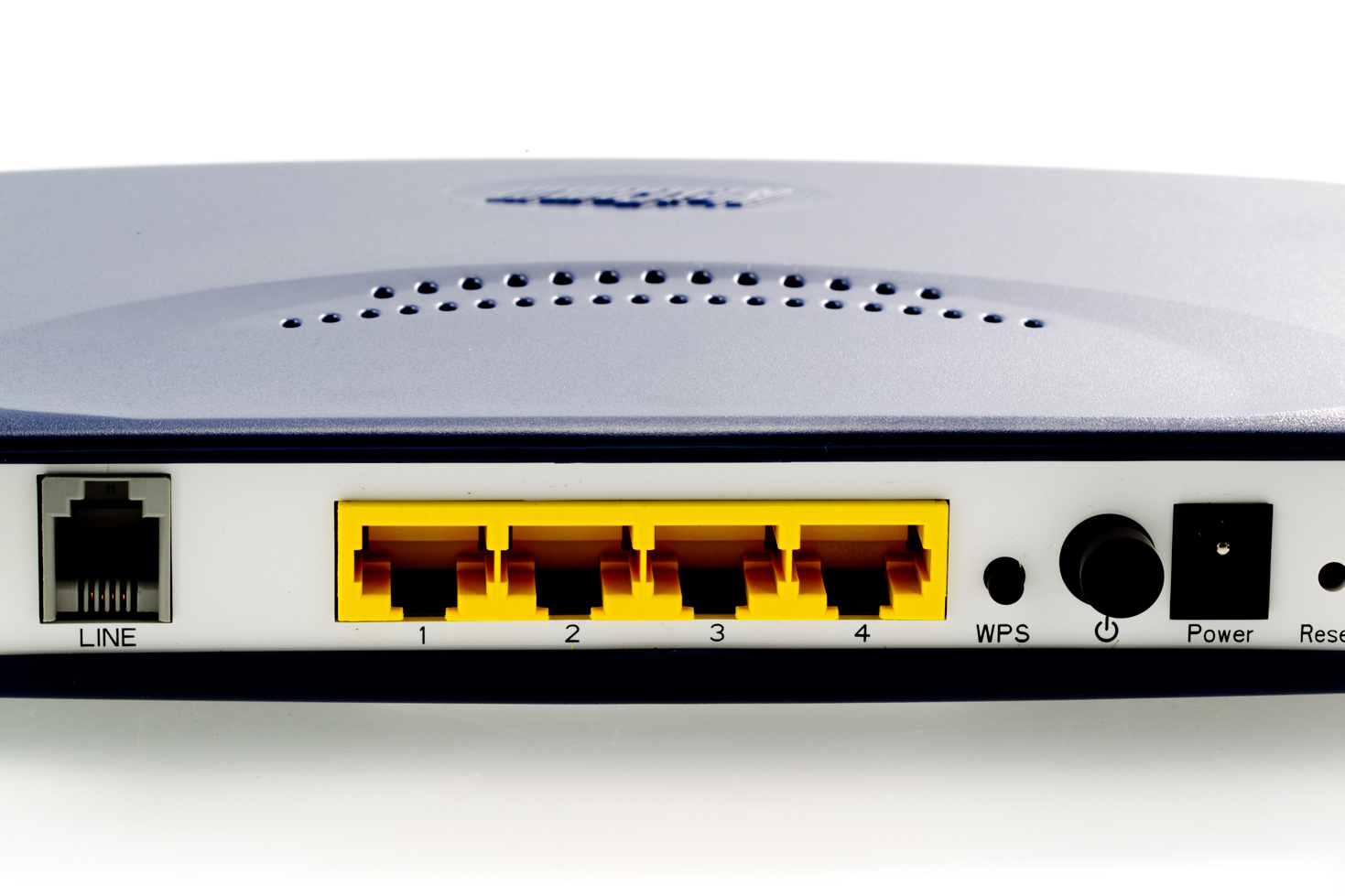

HARDWARE INTERFACE

  • One RJ-11 port for ADSL connection
  • Four RJ-45 ports for IEEE 802.3/802.3u 10/100 Base-T auto-sensing and auto-crossover
  • One hidden button for restoration of factory default settings
  • One push button for WPS PBC support
  • External power adapter 12VDC/1.5A (output)

WIRELESS LAN

  • Supports IEEE 802.11n (draft 2.0), IEEE 802.11g and IEEE 802.11b
  • Data Rates: Up to 300Mbps for 802.11n, up to 54Mbps for 802.11g and up to 11Mbps for 802.11b
  • Antenna Configuration:  2 fixed external antennas (2T2R)
  • RF Output Power: 15±1.5 dBm in 2.4 GHz
  • Coverage Area: Up to 300 metres1
  • Operating Frequency: 2.412 ~ 2.484 GHz
  • Operating Channels: 13 channels (Australia)
  • Support 802.1x, WPA/WPA-PSK, WPA2/WPA2-PSK, Mixed WPA/WPA2, and Mixed WPA-PSK/WPA2-PSK
  • Supports multiple SSIDs
  • Supports wireless QoS (WMM)
  • Support WEP (Wired Equivalent Privacy) RC4 with 64-bit or 128-bit key length
  • Support Access Control List, only registered WLAN clients are allowed
  • Supports wireless protected setup (WPS) with PIN and PBC method
  • Support repeater function to extend coverage (WDS)
  • Support client isolation for wireless hotspot

ENVIRONMENTAL CONDITIONS

  • Operating temperature 0 ~ 40°Celsius
  • Relative humidity 20 ~ 90% (non-condensing)

DIMENSIONS

  • 190 mm (W) x 30 mm (H) x 150 mm (D)
  • Weight: 320g
Specifications are subject to change without notice
