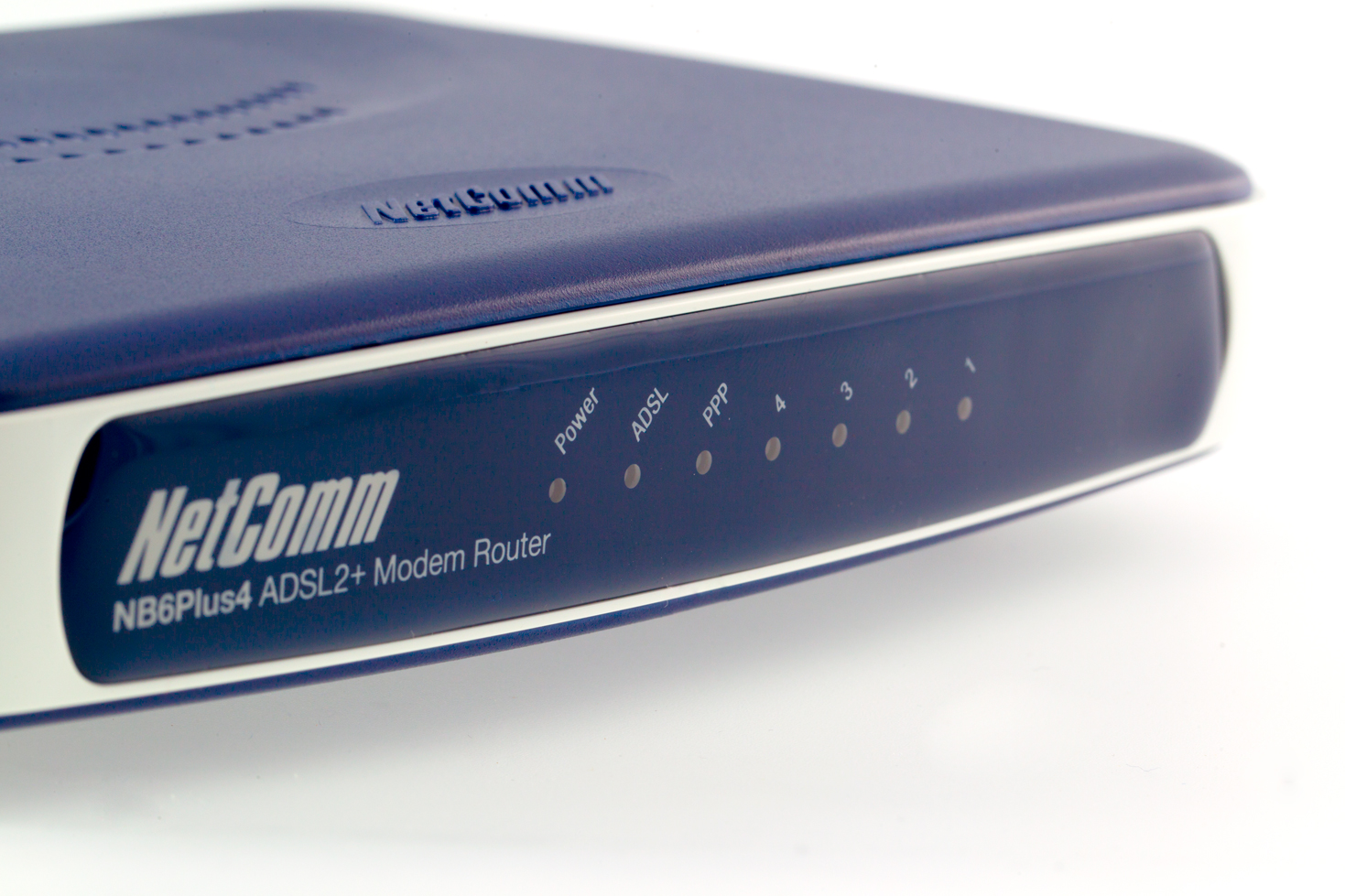

Experience the Internet at full throttle with the compact but powerful NB6Plus4. The simple setup dual-interface Router includes 4 Ethernet ports for high-speed Internet connectivity and file sharing between multiple computers.
Decked out with features designed to support security and prioritisation functions such as online gaming and VoIP, the NB6Plus4 includes a NAT firewall, Quality of Service (QoS) and simple web based setup and configuration.
ADSL2+. Enhanced velocity
Access a super high-speed ADSL2+ Internet connection using a broadband modem with the capacity to support ADSL, ADSL2 and ADSL2+ connectivity for maximum choice.
All 4 Ethernet.
Create a reliable network for multiple wired devices via the 4 Ethernet ports. Boasting speeds of up to 24Mbps, the NB6Plus4W supports bandwidth-intensive activities such as watching movies, downloading music and online gaming.
Technical Specifications
ADSL COMPLIANCE
ADSL
ANSI T1.413 Issue 2
ITU G.992.1 Annex A (G.dmt)
ITU G.992.2 Annex A (G.lite)
ITU G.994.1 (G.hs)
Support dying gasp
Maximum Rate: 8 Mbps downstream and 1 Mbps upstream
ADSL2
ITU G.992.3
ITU G.992.4
Maximum Rate: 12 Mbps downstream and 1 Mbps upstream
ADSL2+
ITU G.992.5
ITU G.992.5 Annex M
Maximum Rate: 24 Mbps downstream and 1.2 Mbps upstream
ATM
PPPoA (RFC 2364) and PPPoA Bridged mode
PPPoE (RFC 2516) and PPPoE Bridged mode
IPoA (RFC 2225)
Bridged mode over AAL5 (RFC2684/1483)
ATM Forum UNI 3.1 / 4.0 compliant PVCs
UBR and CBR with traffic shaping
OAM F4/F5 loopback cells
BRIDGING
IEEE 802.1d self-learning bridge
Learning up to 4096 MAC addresses
Transparent Bridging between 10/100 Ethernet and USB
ROUTING
NAT / PAT allows multiple users to share Internet access
UPnP IGD with NAT traversal capability
Port Forwarding: users can setup multiple virtual servers (e.g., Web, FTP, Mail servers) on the local network.
DNS Relay, Dynamic DNS
DHCP Client/Relay/Server
IGMP Proxy
Support IP/Bridge QoS for different traffic classes
Support reservation of bandwidth to guarantee voice quality of VoIP applications
SUPPORTED APPLICATIONS
Application Level Gateways preset for Auth/Ident, DNS, FTP, PPTP, IPSEC, POP3, SMTP, SSH, TELNET, TFTP & WEB servers. Multiple Virtual Servers can be setup in local network
Multiple VPN passthrough sessions
NetMeeting, MSN Messenger, FTP, Quick Time, mIRC, Real Player, CuSeeMe, online gaming
SECURITY
PAP, CHAP, and MS-CHAP for PPP authentication
Firewall based on incoming & outgoing filtering of IP address/Port number/Protocol type
Ping blocking from WAN
DMZ hosting
CONFIGURATION AND MANAGEMENT
Embedded web configuration interface with password protection
Remote management control
Telnet session for local or remote management
System events logging
DSL connection diagnostics
Firmware upgrade via web browser
User setting backup & restore
TR069/TR104
HARDWARE INTERFACE
One RJ-11 port for ADSL connection
Four Ethernet ports for IEEE 802.3/802.3u 10/100 Base-T auto-sensing, auto cross-over
One hidden reset button for restoring factory default settings
One Power on/off button
CHIPSET
Broadcom BCM6348 single-chip ADSL2+ with integrated MIPS32 CPU, transceiver & Analog Front End
POWER SUPPLY
External power adapter 12VAC/1.0A (output)
ENVIRONMENTAL CONDITIONS
Operating temperature 0 ~ 40°Celsius
Relative humidity 20 ~ 90% (non-condensing)
DIMENSIONS
190 mm (W) x 30 mm (H) x 150 mm (D)
Weight: 320g
Specifications are subject to change without notice
