Get online with a simple, fast and reliable ADSL2+ Internet connection. This entry-level device offers speeds of up to 24Mbps to let you send emails, browse the web, download files and play online games via a wired connection to the built-in Ethernet LAN port. The Router also offers advanced security features and user friendly setup using the configuration wizard.
ADSL2+ Connectivity.
Access the Internet via your ADSL2+ connection with speeds of up to 24Mbps to seamlessly support all of your online activities.
Easy Ethernet
Simply connect a wired device to the Ethernet port for instant and reliable high-speed Internet access without connection interference.
Technical Specifications
ADSL COMPLIANCE
ADSL
ANSI T1.413 Issue 2
ITU G.992.1 Annex A (G.dmt)
ITU G.992.2 Annex A (G.lite)
ITU G.994.1 (G.hs)
Maximum Rate: 8 Mbps downstream and 1 Mbps upstream
ADSL2
ITU G.992.3
ITU G.992.4
Maximum Rate: 12 Mbps downstream and 1 Mbps upstream
ADSL2+
ITU G.992.5
ITU G.992.5 Annex M
Maximum Rate: 24 Mbps downstream and 1.2 Mbps upstream
ATM
PPPoA (RFC 2364) and PPPoA Bridged mode
PPPoE (RFC 2516) and PPPoE Bridged mode
IPoA (RFC 2225)
Bridged mode over AAL5 (RFC2684/1483)
ATM Forum UNI 3.1 / 4.0 compliant PVCs
UBR and CBR with traffic shaping
OAM F4/F5 loopback cells
BRIDGING
IEEE 802.1d self-learning bridge
Learning up to 4096 MAC addresses
Transparent Bridging between 10/100 Ethernet and USB
ROUTING
NAT / PAT allows multiple users to share Internet access
UPnP IGD with NAT traversal capability
Port Forwarding: users can setup multiple virtual servers (e.g., Web, FTP, Mail servers) on the local network.
DNS Relay, Dynamic DNS
DHCP Client/Relay/Server
IGMP Proxy
Support IP/Bridge QoS for different traffic classes
Support reservation of bandwidth to guarantee voice quality of VoIP applications
SUPPORTED APPLICATIONS
Application Level Gateways preset for Auth/Ident, DNS, FTP, PPTP, IPSEC, POP3, SMTP, SSH, TELNET, TFTP & WEB servers. Multiple Virtual Servers can be setup in local network
VPN passthrough: PPTP & IPSEC
Netmeeting, MSN Messenger, FTP, Quick Time, mIRC, Real Player, CuSeeMe, online gaming
SECURITY
PAP, CHAP, and MS-CHAP for PPP authentication
Firewall based on incoming & outgoing filtering of IP address/Port number/Protocol type
Ping blocking from WAN
DMZ hosting
CONFIGURATION AND MANAGEMENT
Embedded web configuration interface with password protection
Remote management control
Telnet session for local or remote management
System events logging
DSL connection diagnostics
Firmware upgrade via web browser
User setting backup & restore

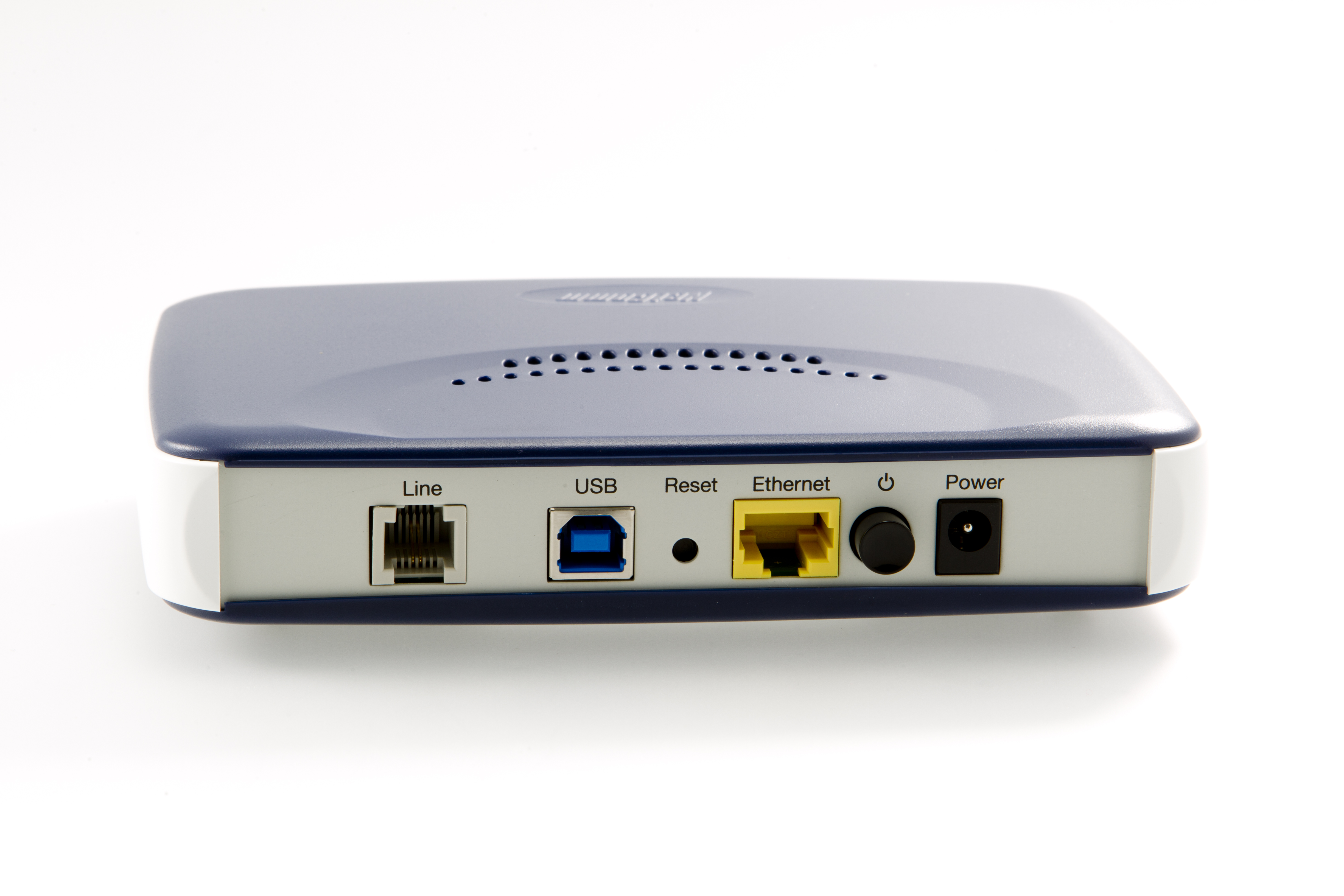

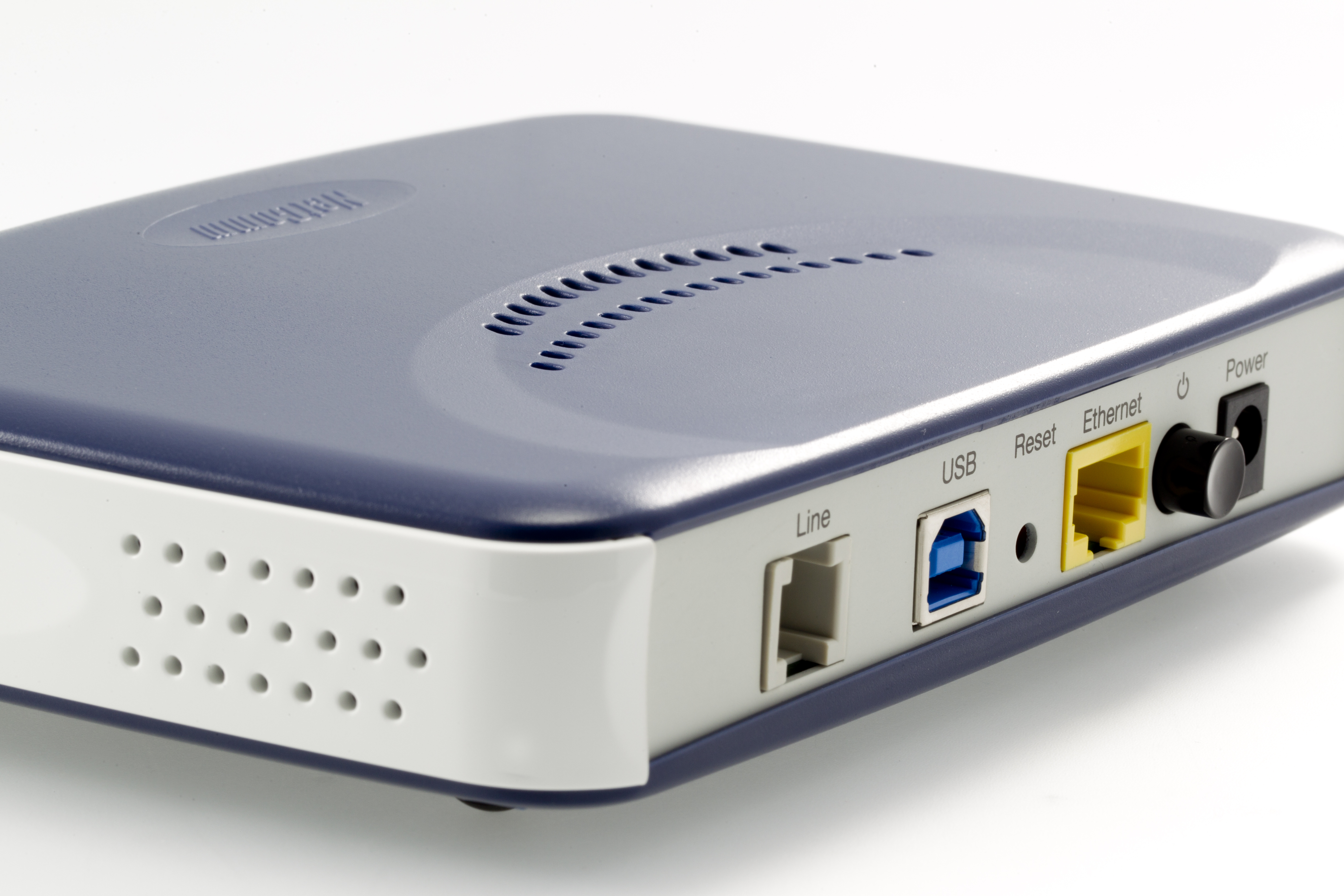

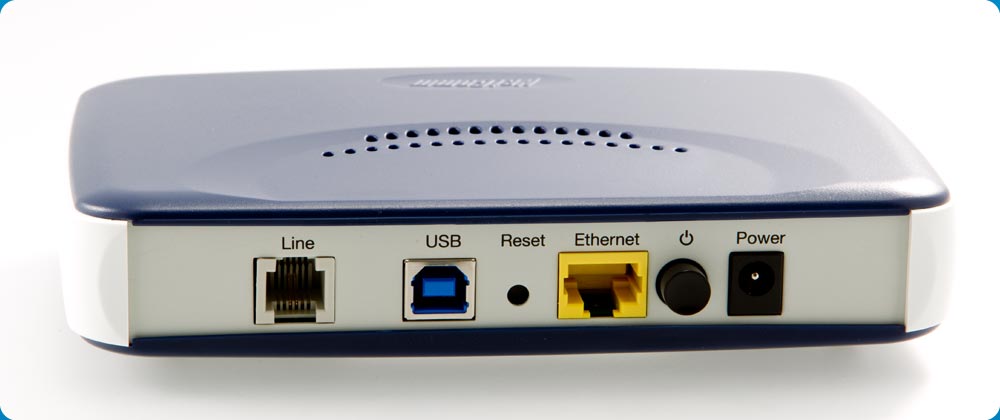

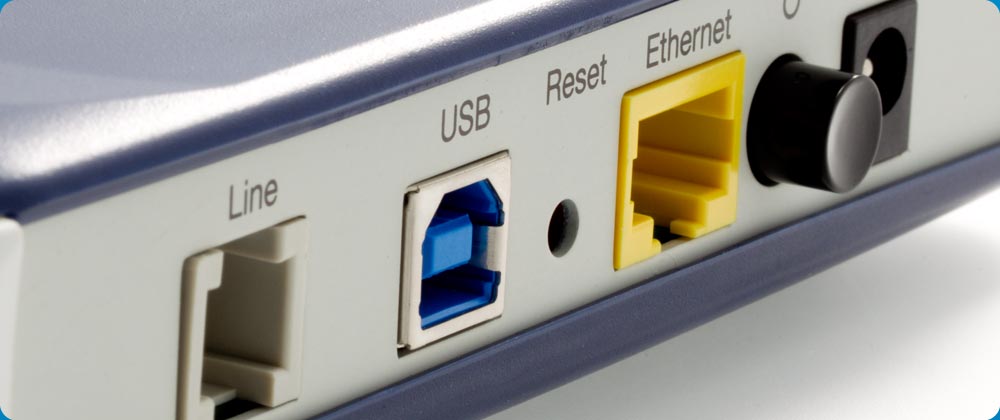

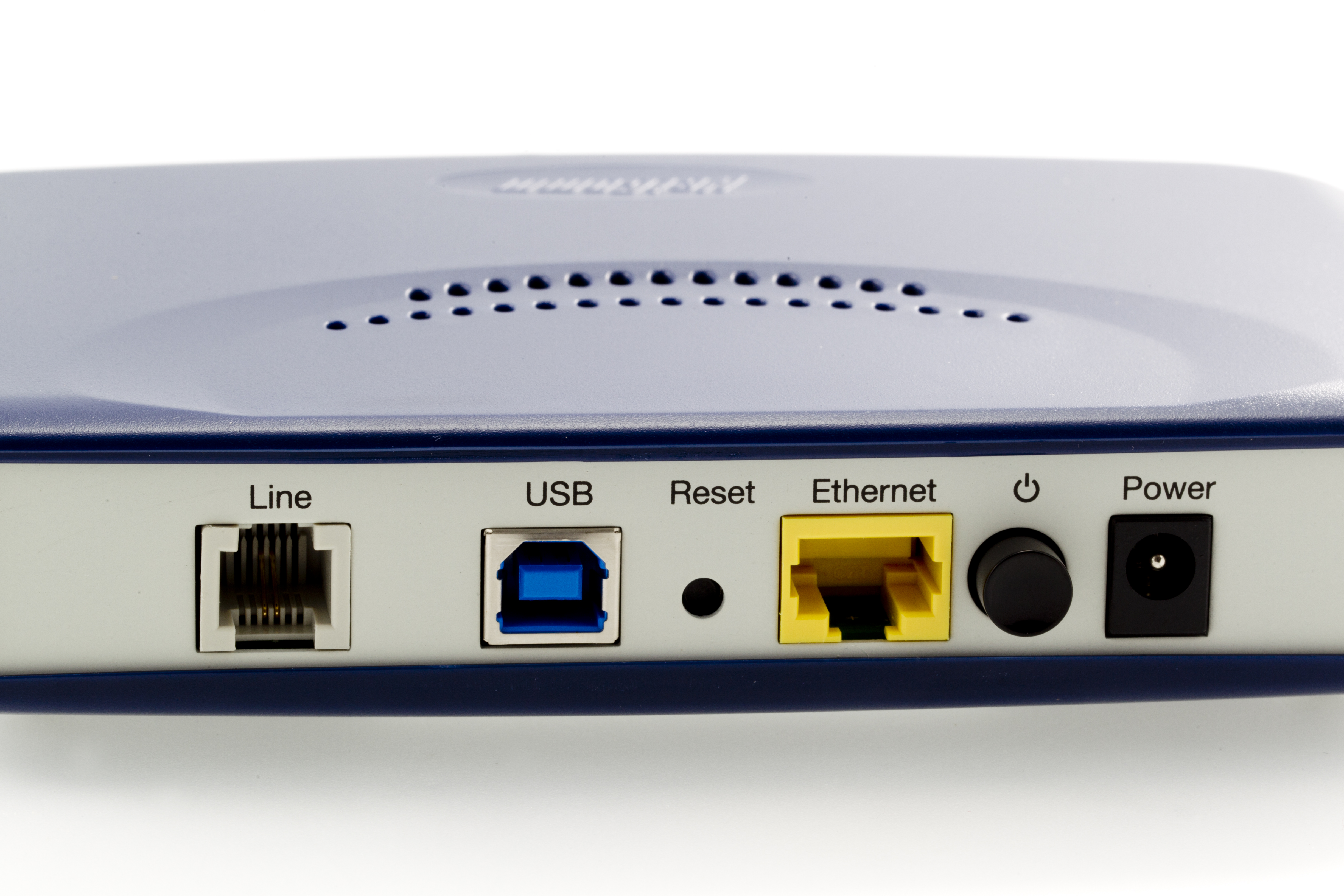

HARDWARE INTERFACE
One RJ-11 port for ADSL connection
One Ethernet port for IEEE 802.3/802.3u 10/100 Base-T auto-sensing, auto cross-over
One USB port compliant to USB v1.1
One hidden reset button for restoring factory default settings
CHIPSET
Broadcom BCM6332 single-chip ADSL2+
POWER REQUIREMENT AND OPERATION
ENVIRONMENT REQUIREMENT
Power Adaptor: Output 12 VDC, 0.5A
Power Consumption: less than 5 W
Ambient Temperature: 0 to 40°C
Relative Humidity: 20% to 90% (non-condensing)
PHYSICAL

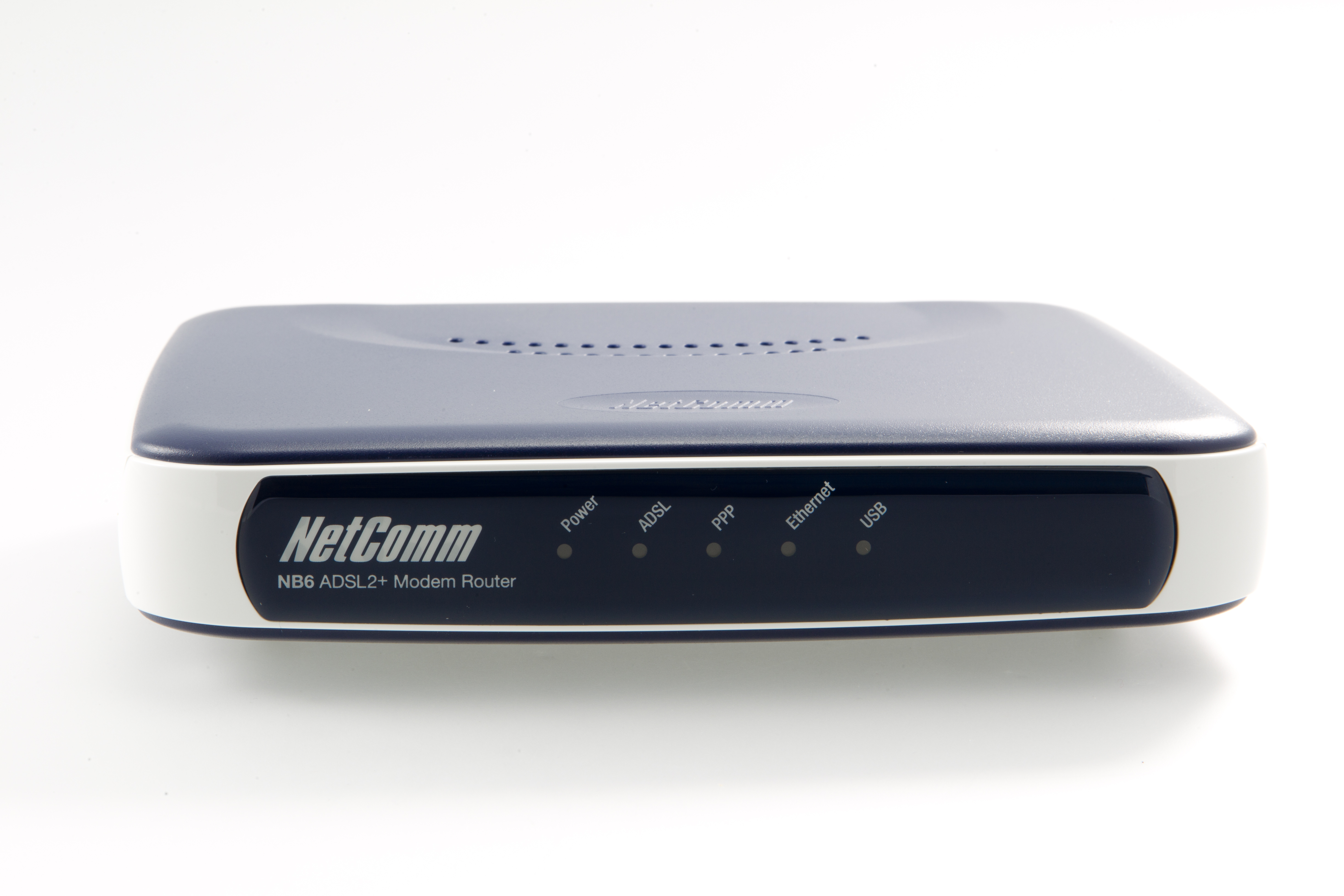

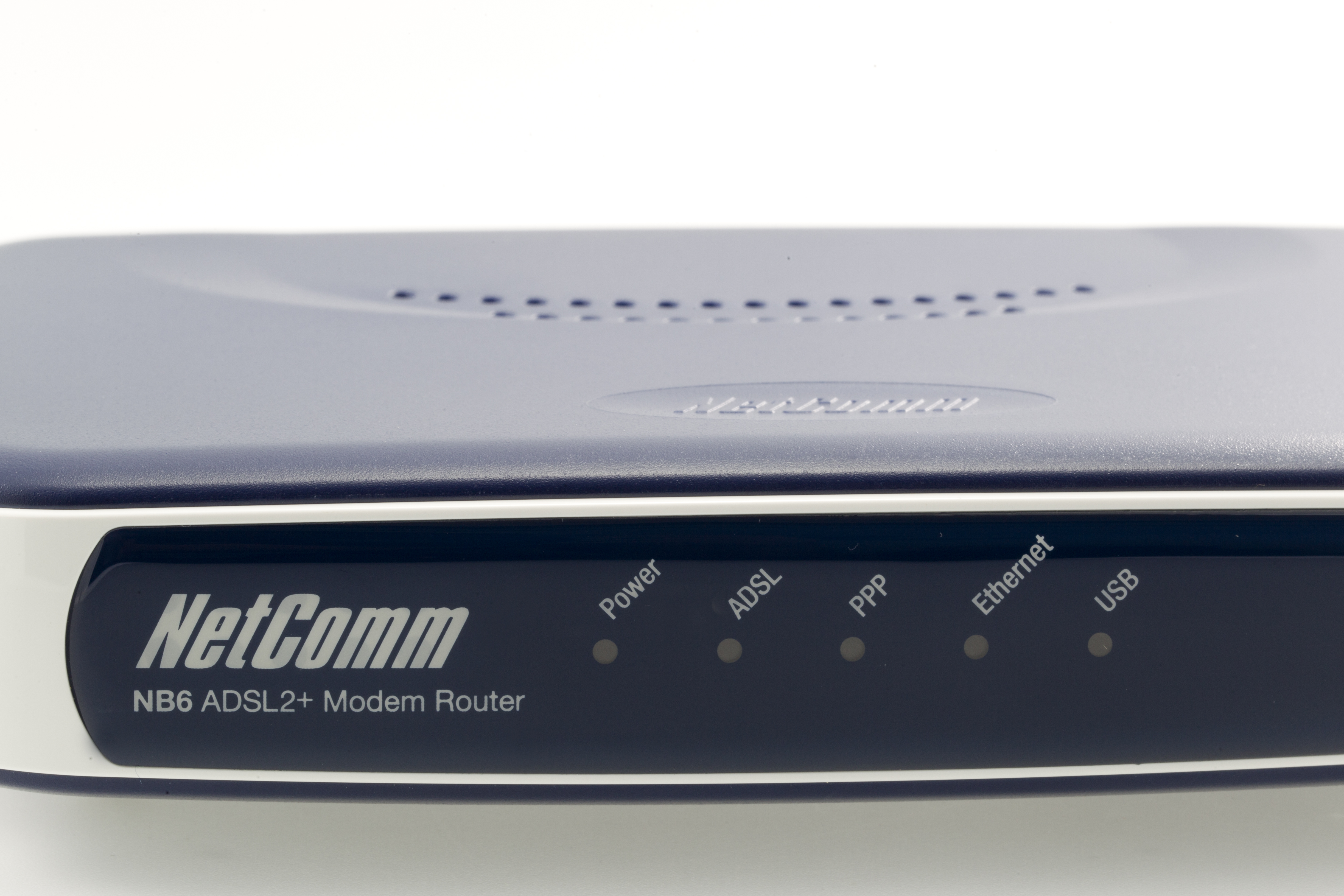

Front Panel: 5 LED Indicators - Power, ADSL, PPP, Ethernet, USB
Dimensions: 88mm(L) x 105mm(W) x 20mm(H)
Weight: 58g
Specifications are subject to change without notice
