Connect to high-speed ADSL2+ for a powerful broadband Internet connection easily shared between multiple wired devices in the home or office. The ADSL2+ Modem Router connects up to four wired devices via the in-built Ethernet ports and can share access to an external hard drive using the USB port. Ready yourself for what's in store with IPv6 support
ADSL2+ power
The user-friendly ADSL2+ Modem Router gives you fast and simple access to a high-speed ADSL2+ service so you can focus on enjoying connectivity for your home or office.
USB advantage
Simply connect an external hard drive to the in-built USB port to access stored files from any device on the network

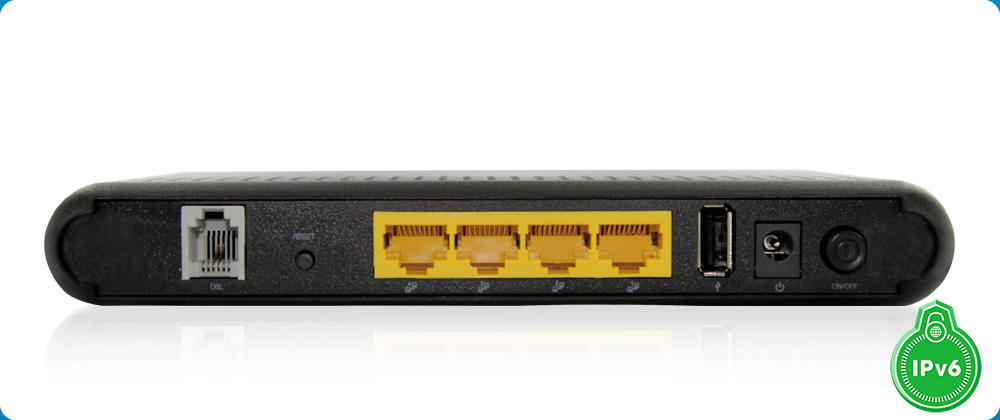

All 4 Ethernet
Create a reliable network for multiple wired devices via the 4 Ethernet ports. Boasting speeds of up to 24Mbps, the NB304 supports bandwidth-intensive activities such as watching movies, downloading music and online gaming.
Technical Specifications
ENVIRONMENTAL AND PHYSICAL
Operating temperature: 0-40oC,
Humidity: 10%-95% non-condensing
Storage temperature: -20-70oC,
Humidity: 5%-95% non-condensing
Power: DC Input Voltage 12V/1.5A
Weight: 245g
DEVICE INTERFACE
4 x 10/100Mbps LAN ports
1 x RJ11 DSL interface
1 x USB 2.0 port – for external Hard Disk Drive Storage
1 x WPS button
1 x Reset button
LED - Power / Internet / LAN1~4/ WLAN/USB
Power Jack
ADSL COMPLIANCE
G.992.1 (T1.413)
G.992.2 (G.dmt), G.lite
G.992.3 (G.bis/ADS L2)
G.992.5 (ADSL2+)
Annex L (reach extended ADSL2)
ATM SUBSYSTEM
PPP over ATM (RFC 2364)
Bridged IP over ATM (RFC 1483)
PPP over Ethernet (RFC 2516)
Multiprotocol Encapsulation over AAL5 (RFC 2684)
ATM Forum UNI 3.1 / 4.0 PVC
ROUTING FEATURES
PPP over PAP (RFC1334)
PPP over CHAP (RFC1994)
Transparent bridging as specified in IEEE 802.1D
NAT (Network Address Translation)
Dynamic Host Configuration Protocol (DHCP)
Dynamic DNS support
Routing Information Protocol (RIP) v1 and v2
ALG: TFTP/FTP/PPTP/RTSP/L2TP/H323
DMZ
SNTP
QoS
MANAGEMENT
Supports TR-069
TFTP client and server
IPv6
DHCP client and server
FTP server and client
Universal Plug and Play (UPnP) support
Web-based Graphical User Interface (GUI) enabling end-user device configuration via HTTP
Syslog
Configuration file backup and restore
Built-in Diagnostic Tools
COMPLIANCE
A-Tick
Telepermit
Specifications are subject to change without notice
