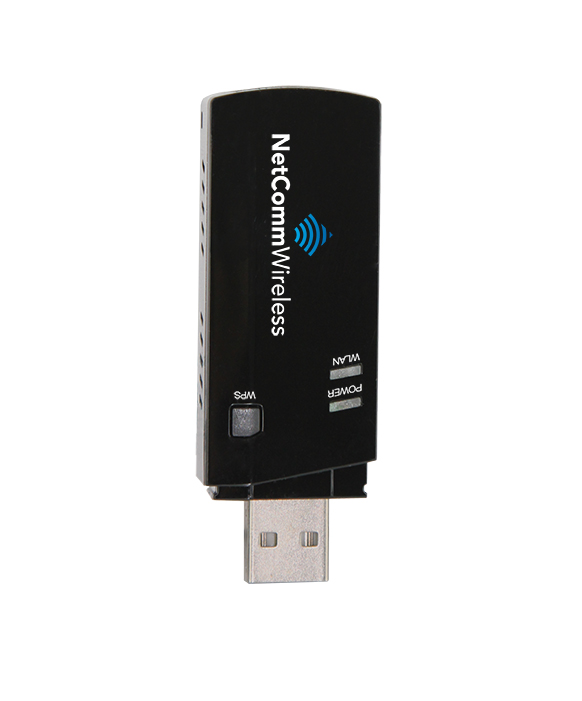

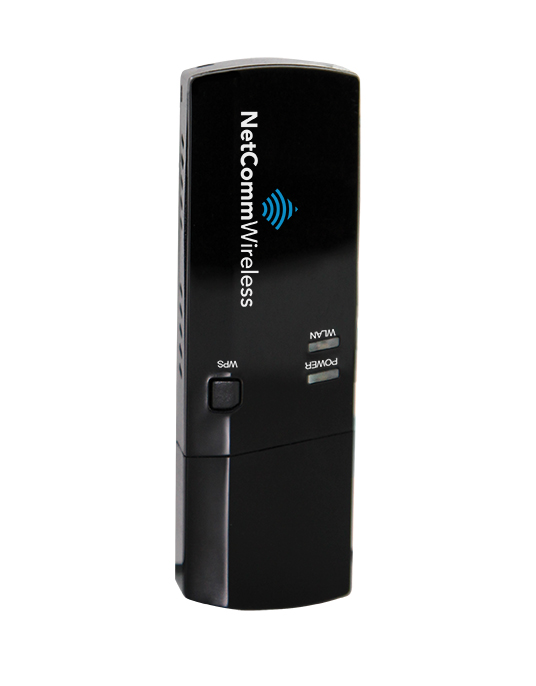

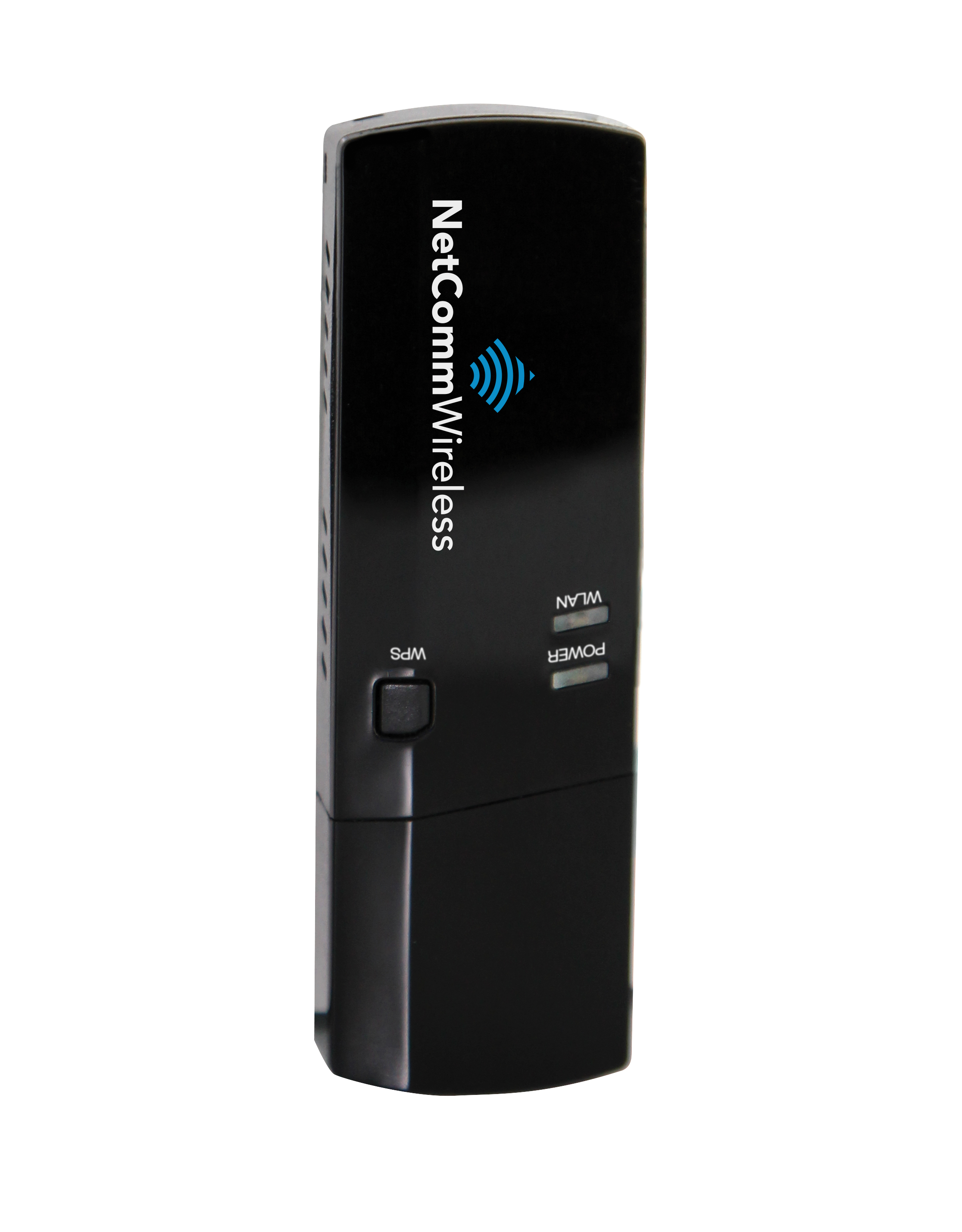

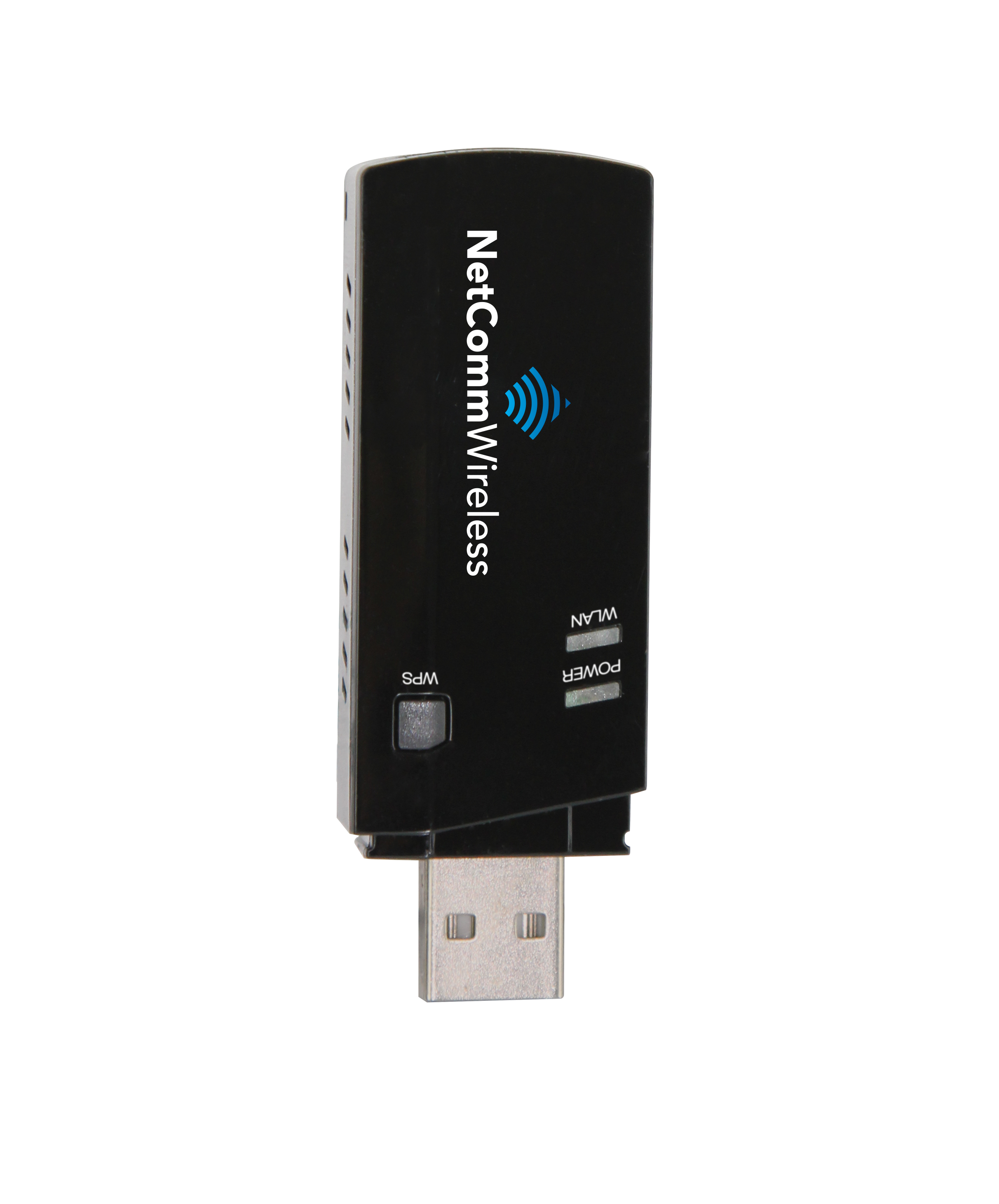

Dual Band WiFi USB Adapter

Designed to be paired with your dual band WiFi router, the Dual Band WiFi USB Adapter connects your laptop or desktop computer to a WiFi network and is perfect for applications that require a high speed Internet signal. Select whether you connect to a 2.4GHz or 5GHz WiFi network with no setup required
Dual Band WiFi USB Adapter
Dual Band

Dual Band

Dual band WiFi reduces WiFi interference between connected devices. You can use the more common 2.4GHz network for everyday web browsing and use the 5GHz network for applications such as online gaming, streaming HD video and audio, which require the cleanest possible signal

Technical Specifications

CHIPSET

  • BCM 43236

WIFI STANDARD

  • IEEE 802.11 a/b/g/n

SOFTWARE SUPPORTED

  • Windows XP, 2000, Vista, 7

OPERATING FREQUENCIES

  • 2.4GHz and 5GHz

MODULATION

  • PSK/CCK, DQPSK, DBPSK, OFDM

SECURITY

  • 802.1x, WEP 64/128, WPA/WPA2, TKIP

RF OUTPUT POWER

  • 15±1.5dBm@802.11g, 18±1.5dbm@802.11b, 14±1.5dBm@802.11n

DATA RATE, MBPS

  • 54, 48, 36, 24, 18, 12, 9, 6, 11, 5.5, 2, 1
  • 20 MHz
    • 150, 130, 117, 104, 78
  • 40 MHz
    • 300, 270, 243, 216, 162, 108

DIMENSIONS

  • 70 x 25 x 10 mm

WEIGHT

  • 10g

OPERATING TEMPERATURE

  • 0°C ~ 45° C

STORAGE TEMPERATURE

  • -20°C ~ 70° C

OPERATING HUMIDITY

  • 10% ~ 90%

STORAGE HUMIDITY

  • 5% ~ 90%
Specifications are subject to change without notice
