Wireless N150 USB Adapter - NP910n


  • Overview
  • Specifications
  • Downloads
Support Buy Online Find a Retailer

Wireless N150 USB Adapter

Smaller than your average USB adapter, the Wireless N150 USB Adapter connects discreetly to your laptop or PC for a simple to setup wireless connection that supports WiFi multimedia streaming which is maintained by prioritised audio, video and voice traffic. When used in conjunction with a compatible wireless router  you can secure your wireless connection with the touch of a button using the WiFi Protected Setup (WPS) feature.

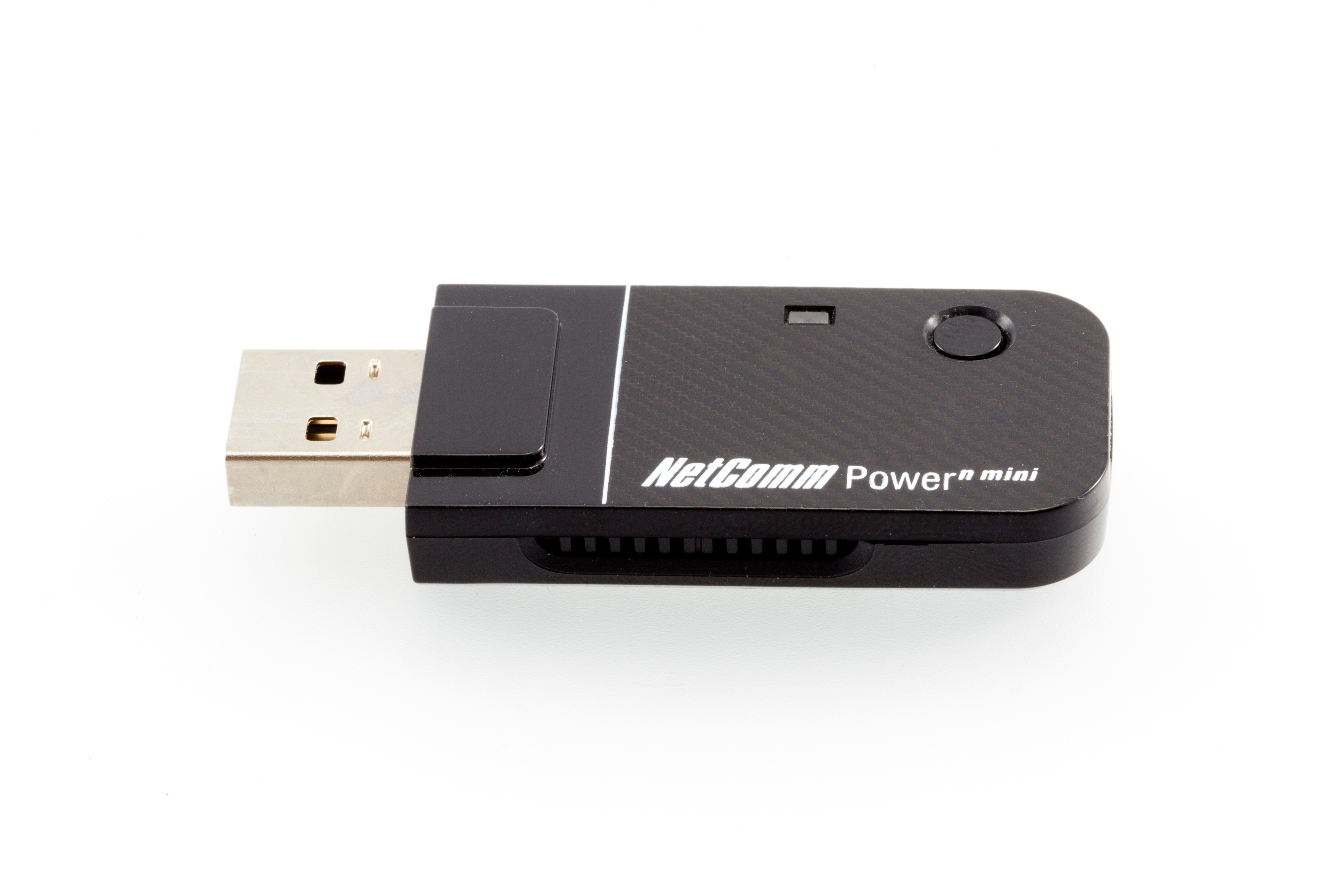

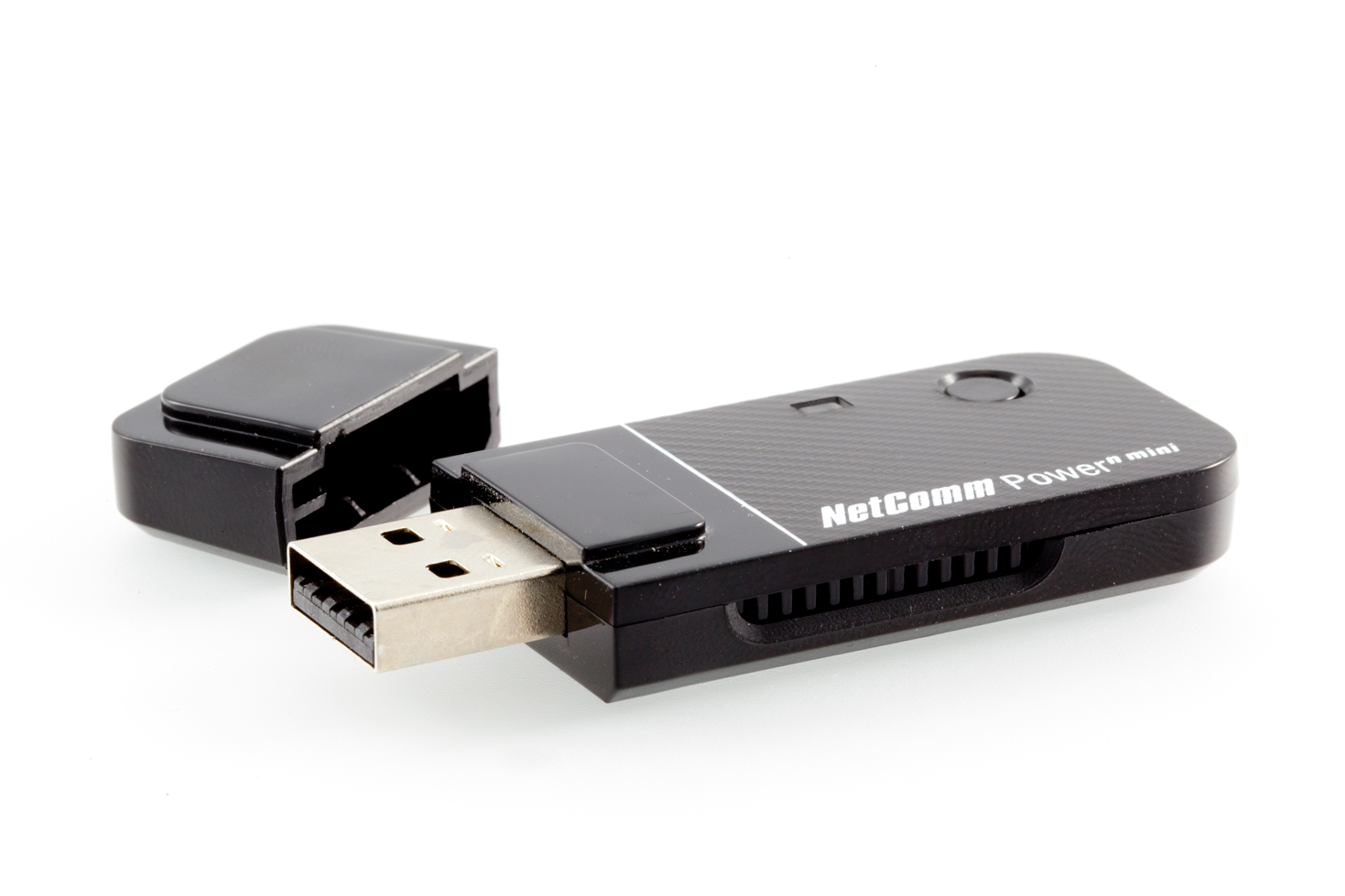

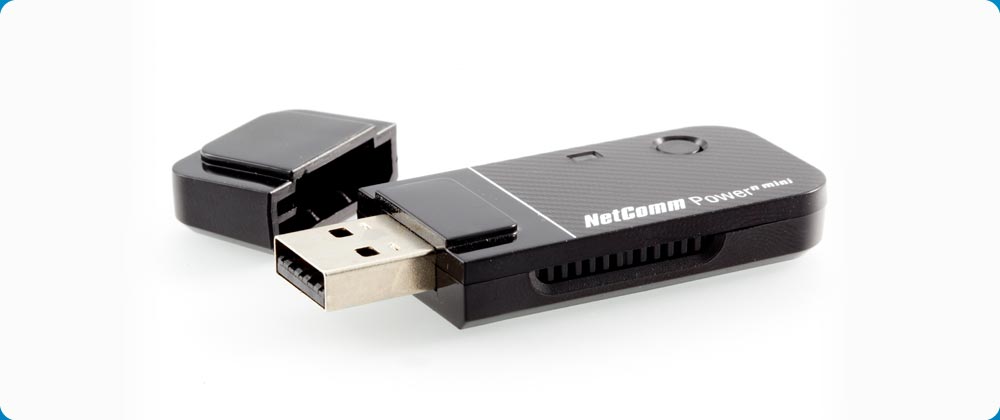

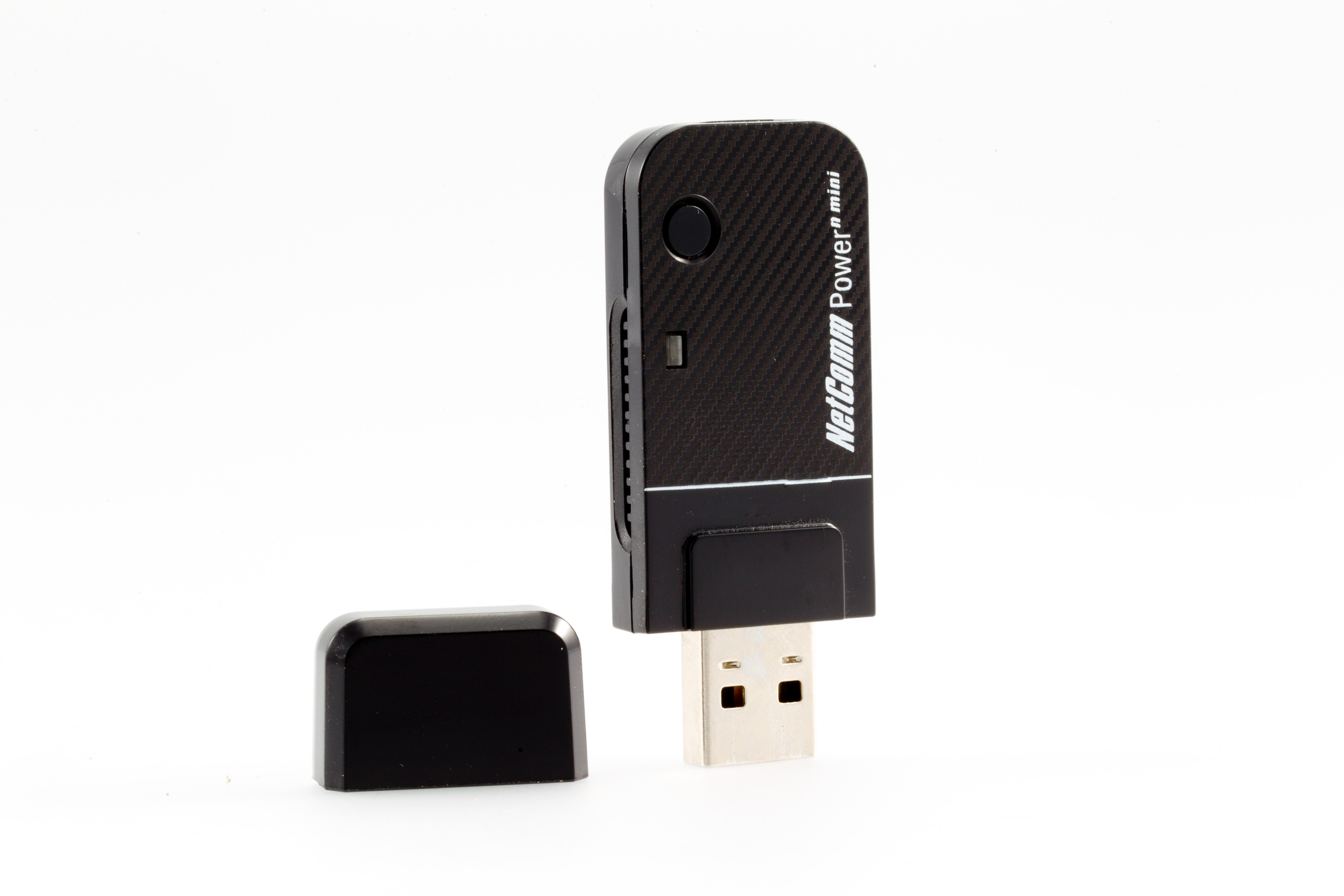

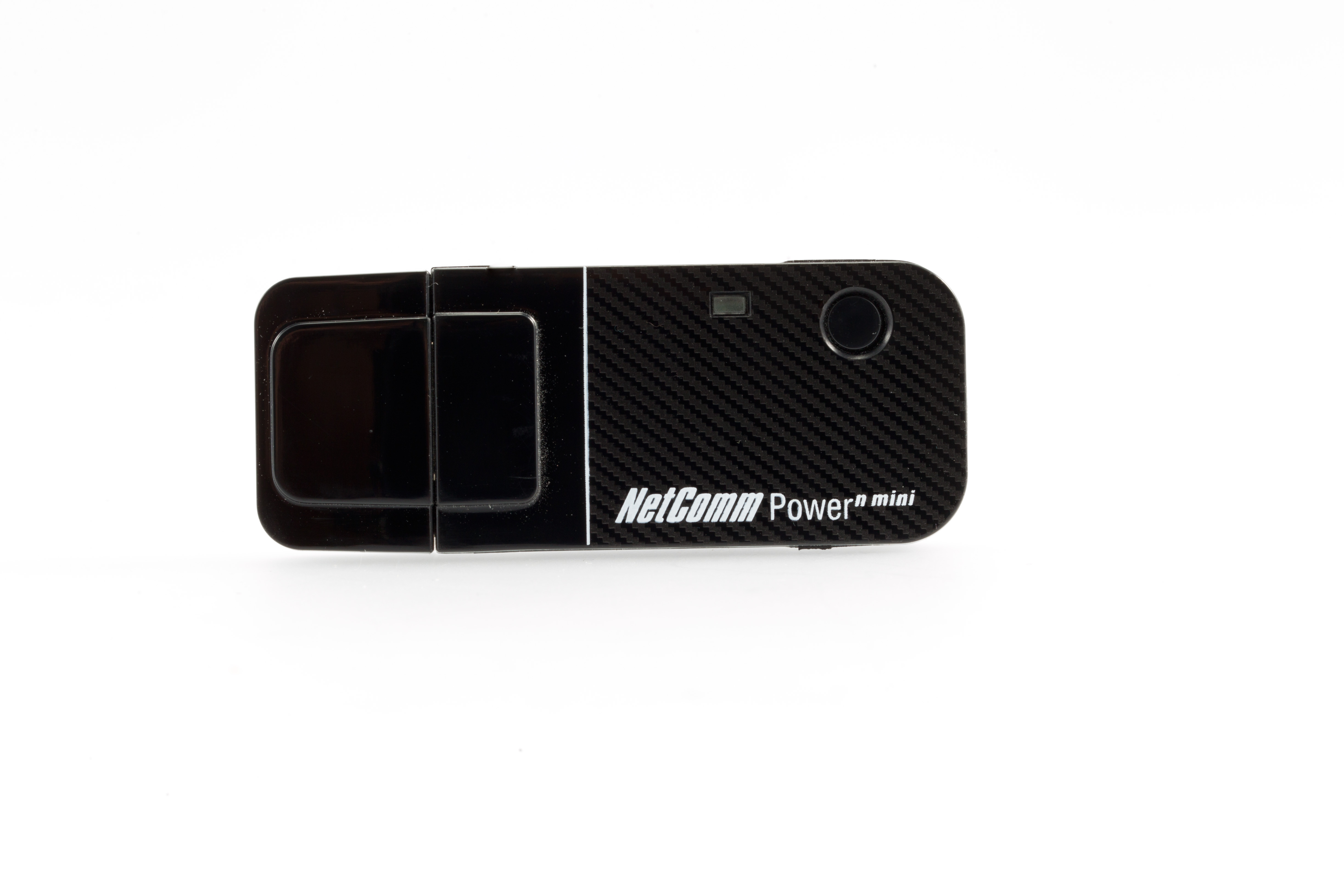

NP910n
NP910n

WiFi anywhere.

Powered with Wireless N technology, you can achieve wireless speeds of up to 150Mbps while also enjoying  your online activities with improved reliability thanks to the advanced MIMO (Multi-In; Multi-Out) technology.

Technical Specifications

PRODUCT

  • NP900 Series 802.11b/g/n WLAN USB Adapter

STANDARD

  • IEEE 802.11b/g/n

BUS TYPE

  • USB 2.0 Type A

FREQUENCY BAND

  • 2.4000~2.4835GHz (Industrial Scientific Medical Band)

DATA RATE

  • 11b: 1/2/5.5/11Mbps
  • 11g: 6/9/12/24/36/48/54Mbps
  • 11n (20MHz): MCS0-15, 32 with Half Guard Interval Support (up to 72/144Mbps)
  • 11n (40MHz): MCS0-15, 32 with Half Guard Interval Support (up to 150/300Mbps)

SECURITY

  • WEP 64/128, WPA, WPA2
  • Cisco CCX V1.0, V2.0 & V3.0 Compliance

ANTENNA

  • 2 Internal Antennas (NP900n, NP901n)
  • 1 Internal Antenna (NP910n)

DRIVERS

  • Windows 2000/XP 32 Bit/XP 64 Bit/Windows Vista/7
  • Mac OSX 10.5/10.4/10.3

LEDS

  • Power/Link NP900n, NP901n. Link NP910n

DIMENSION

  • 75(H) x 24(W) x 11(D) mm (NP900n, NP901n)
  • 55(H) x 23(W) x 8(D) mm (NP910n)

TEMPERATURE

  • 0 ~50°C

HUMIDITY

  • Max. 95% (Non-Condensing)

MINIMUM SYSTEM REQUIREMENTS

  • Internet connection, provided by xDSL or cable modem.
  • Wireless Router

PACKAGE CONTENTS

  • NP900n Series Wireless N USB Adapter
  • Quick Start Guide
  • CDROM containing User Guide (in PDF Format)
  • USB dock with attached cable- NP901n
Specifications are subject to change without notice
