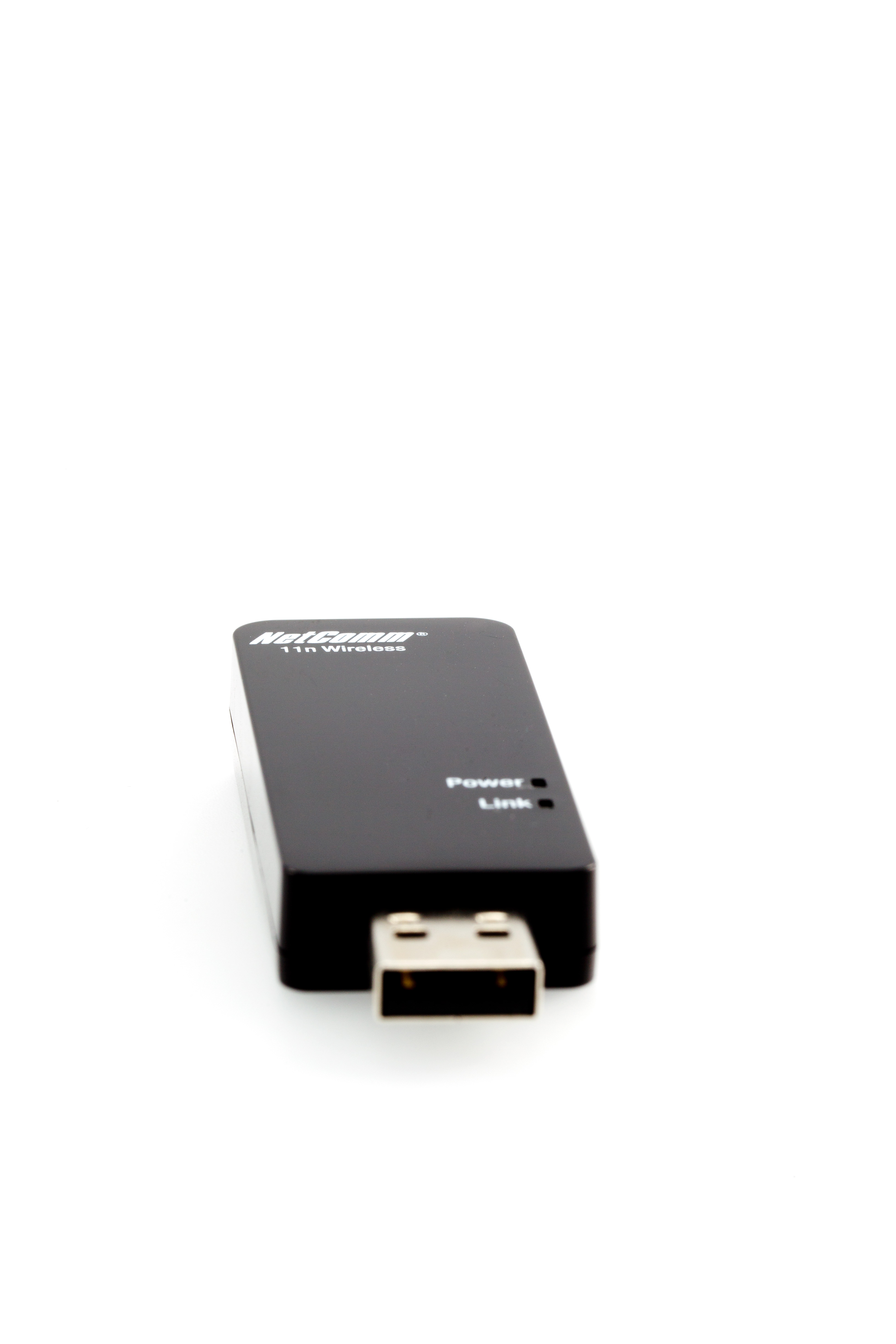

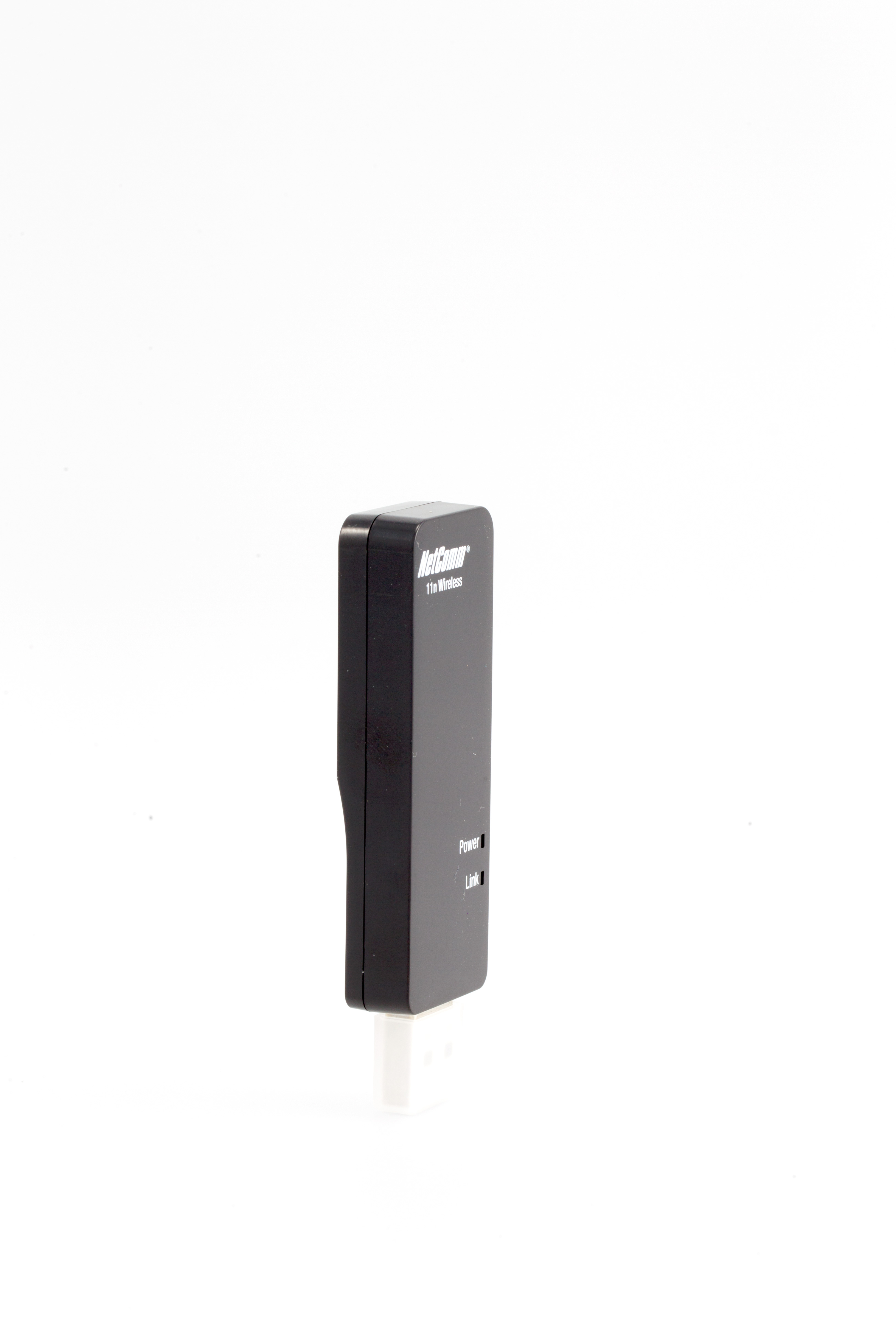

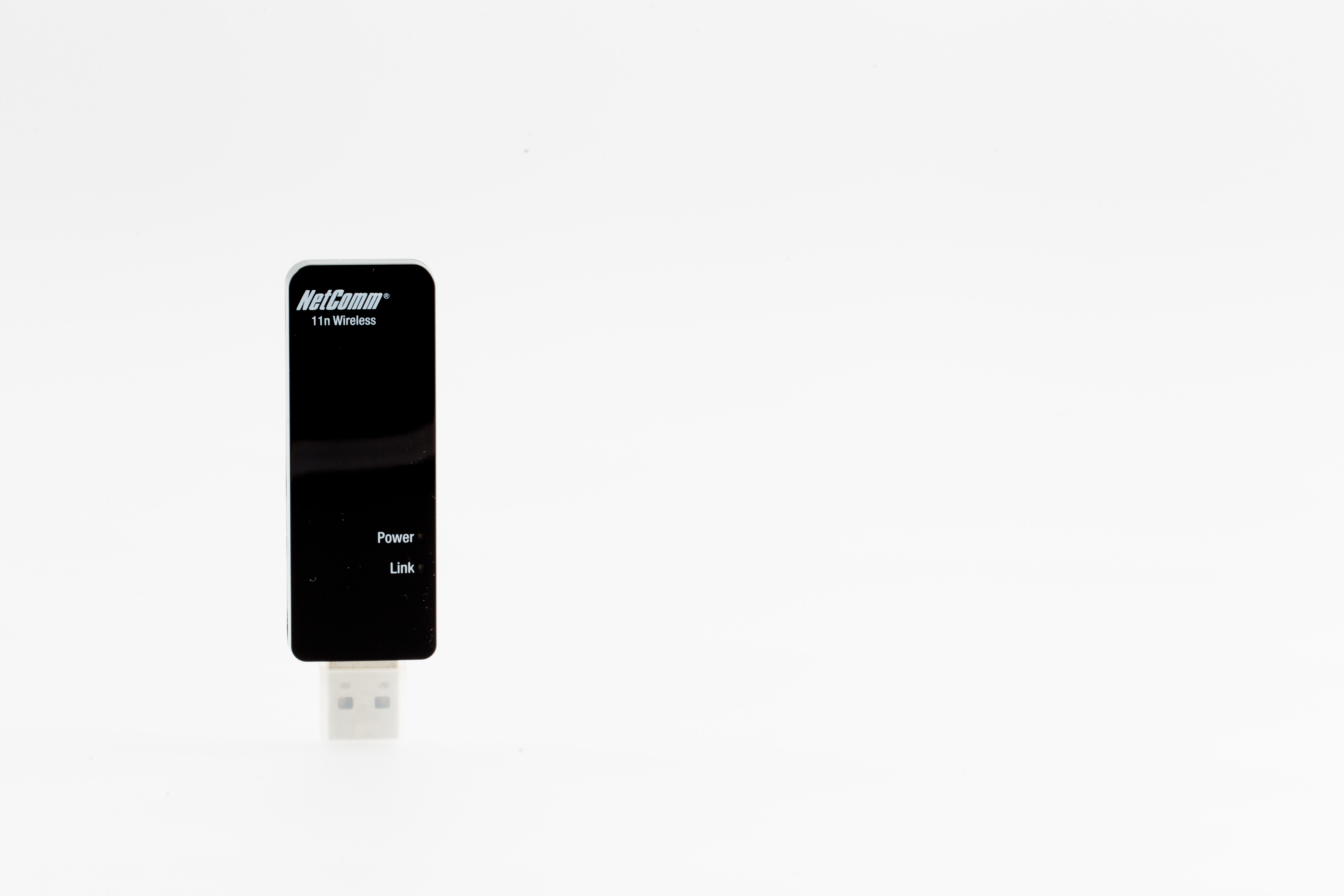

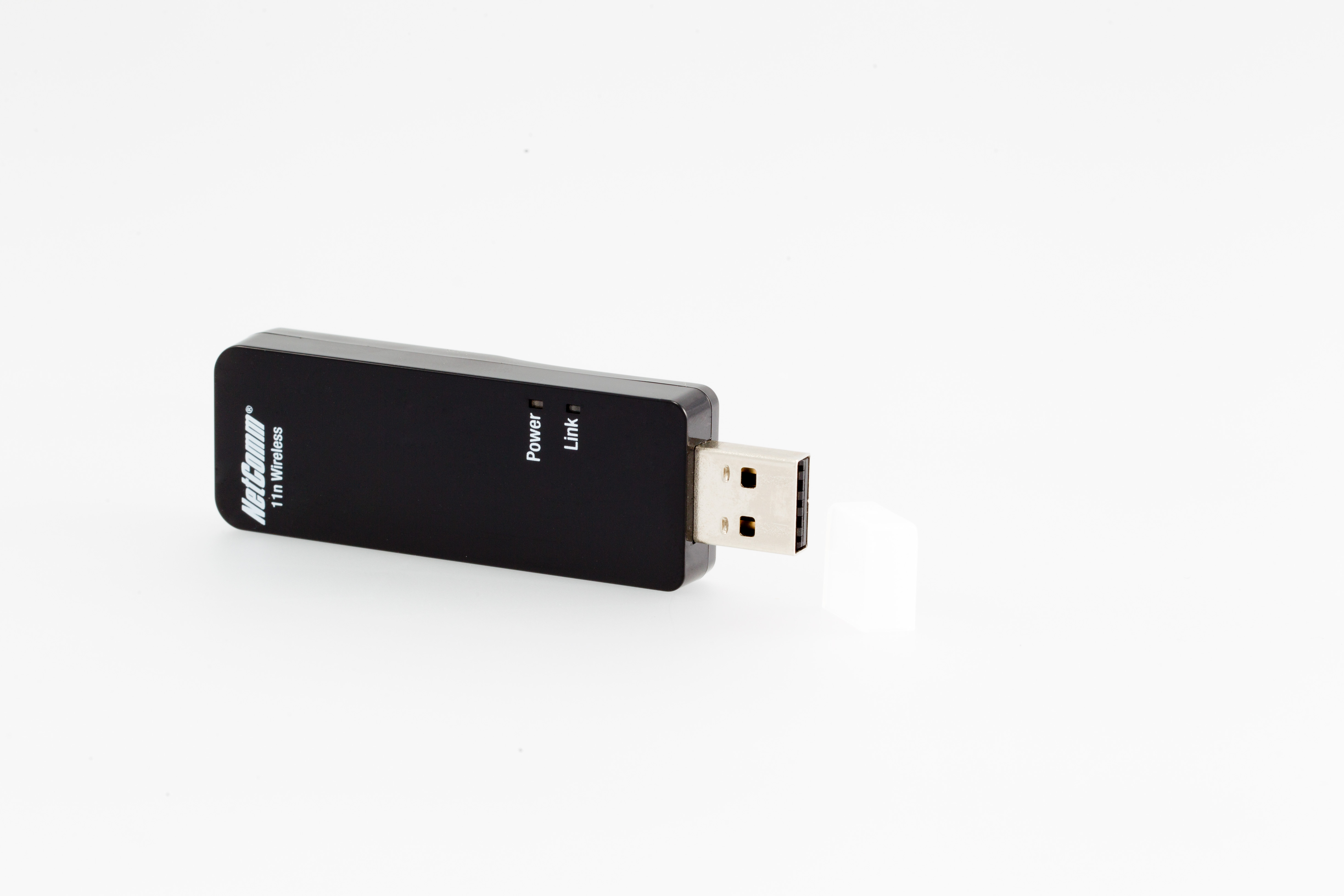

Wireless N300 USB Adaptor - NP900n

Technical Specifications

PRODUCT

• NP900 Series 802.11b/g/n WLAN USB Adapter

STANDARD

• IEEE 802.11b/g/n

BUS TYPE

• USB 2.0 Type A



FREQUENCY BAND

• 2.4000~2.4835GHz (Industrial Scientific Medical Band)

DATA RATE

• 11b: 1/2/5.5/11Mbps

• 11g: 6/9/12/24/36/48/54Mbps

• 11n (20MHz): MCS0-15, 32 with Half Guard Interval Support (up to 72/144Mbps)

• 11n (40MHz): MCS0-15, 32 with Half Guard Interval Support (up to 150/300Mbps)

SECURITY

• WEP 64/128, WPA, WPA2

• Cisco CCX V1.0, V2.0 & V3.0 Compliance

ANTENNA

• 2 Internal Antennas (NP900n, NP901n)

• 1 Internal Antenna (NP910n)

DRIVERS

• Windows 2000/XP 32 Bit/XP 64 Bit/Windows Vista/7

• Mac OSX 10.5/10.4/10.3

LEDS

• Power/Link NP900n, NP901n. Link NP910n

DIMENSION

• 75(H) x 24(W) x 11(D) mm (NP900n, NP901n)

• 55(H) x 23(W) x 8(D) mm (NP910n)

TEMPERATURE

• 0 ~50°C


HUMIDITY

• Max. 95% (Non-Condensing)

MINIMUM SYSTEM REQUIREMENTS

• Internet connection, provided by xDSL or cable modem.

• Wireless Router

PACKAGE CONTENTS

• NP900n Series Wireless N USB Adapter

• Quick Start Guide

• CDROM containing User Guide (in PDF Format)

• USB dock with attached cable- NP901n
