802.11b/g Wireless Outdoor Access Point - NP730


  • Overview
  • Specifications
  • Downloads
Support Buy Online Find a Retailer

Outdoor Wireless Access Point

Amplify your wireless coverage over a range of up to 5km with the easy to install Outdoor Wireless Access Point which works in access point, repeater and bridge mode. Designed to support today's most demanding wireless LAN activities, the rugged outdoor device includes a detachable antenna, inbuilt booster and advanced wireless security to extend a powerful and secure wireless signal throughout the premises.

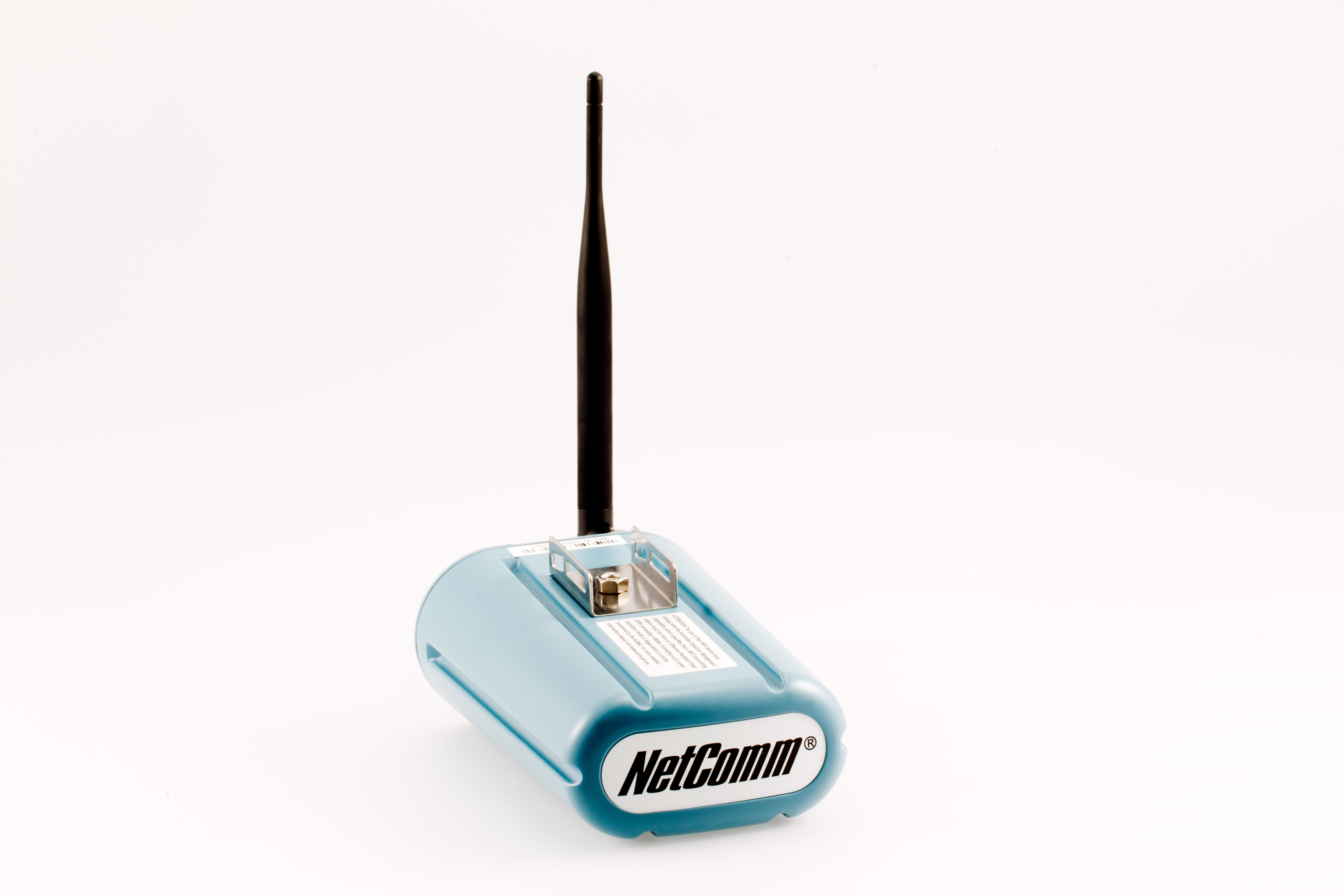

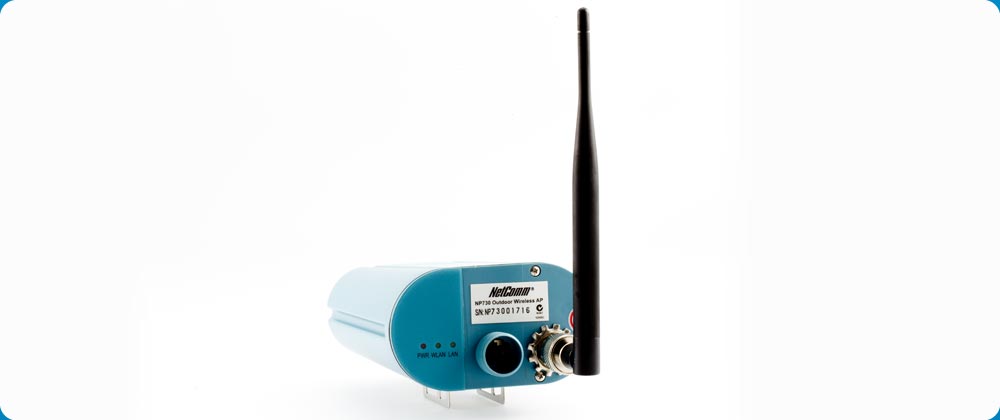

NP730 - Outdoor Wireless Access Point
NP730 - Outdoor Wireless Access Point

External WiFi

Share a dependable 54Mbps WiFi connection between multiple wireless devices such as laptops, tablet computers and smart phones on a single broadband plan. Whether you're indoors or outside the Outdoor Wireless Access Point simultaneously connects all of your devices to high-speed broadband.

Outdoor durability

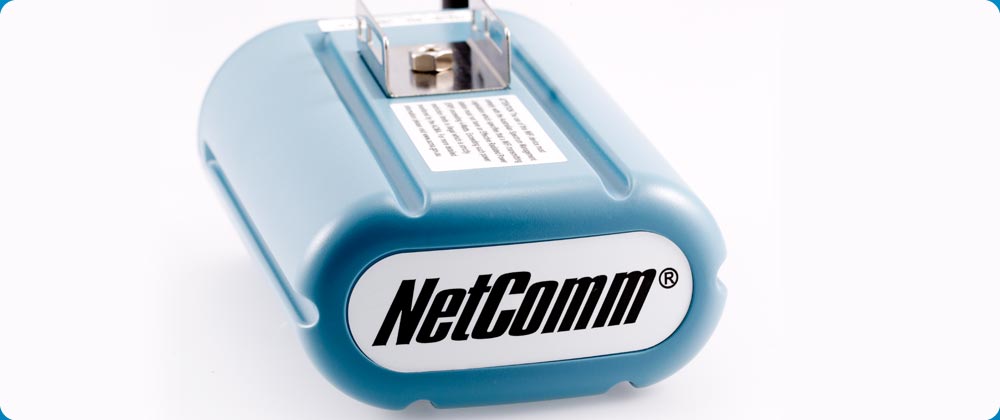

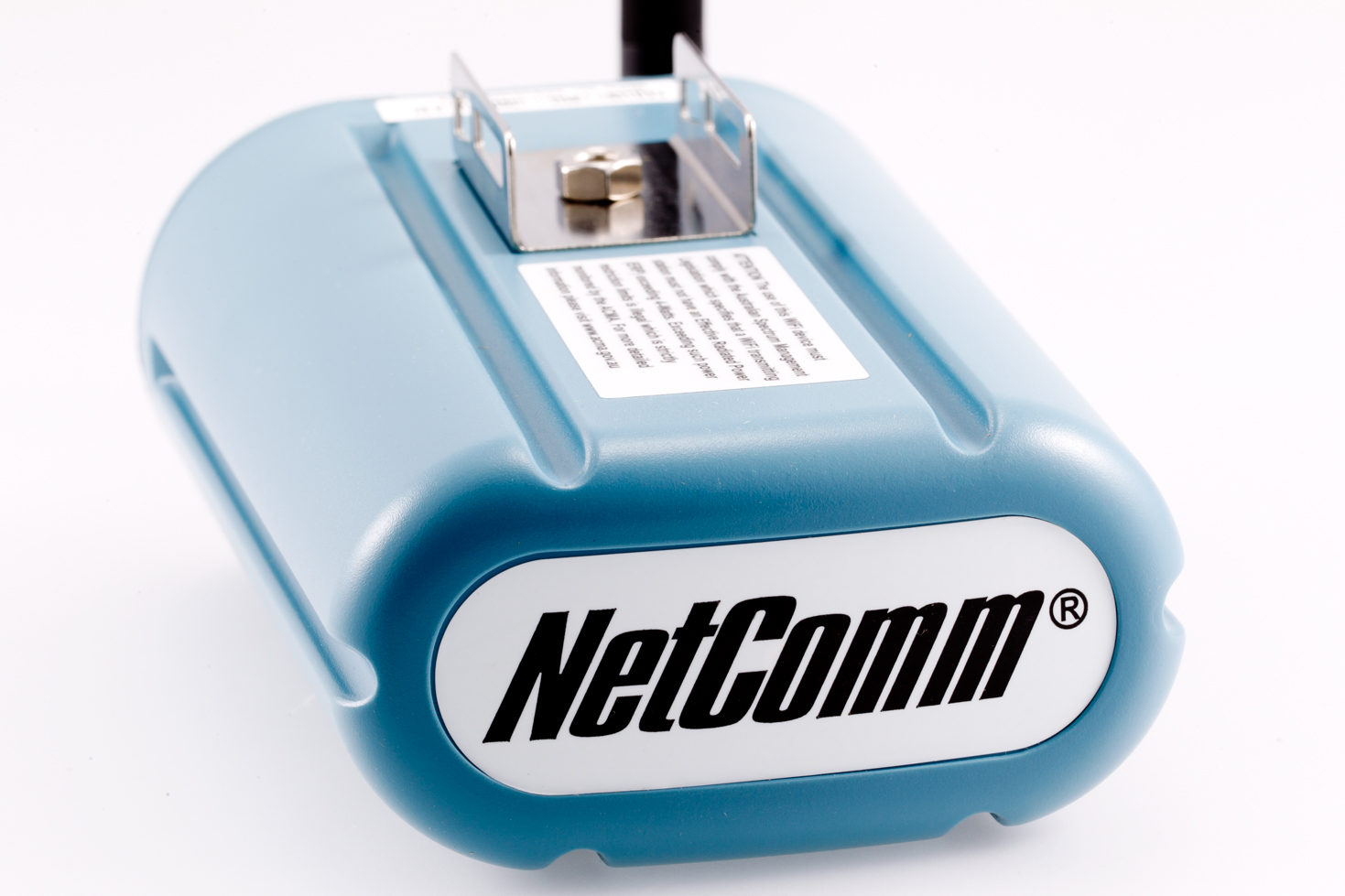

The tough exterior of the Outdoor Wireless Access Point ensures dependability in the harshest of outdoor environments. The sturdy casing is built to withstand extreme temperatures and other harsh weather conditions for optimal performance in any location.
NP730 - Outdoor Wireless Access Point
NP730 - Outdoor Wireless Access Point

Maximum coverage and reach

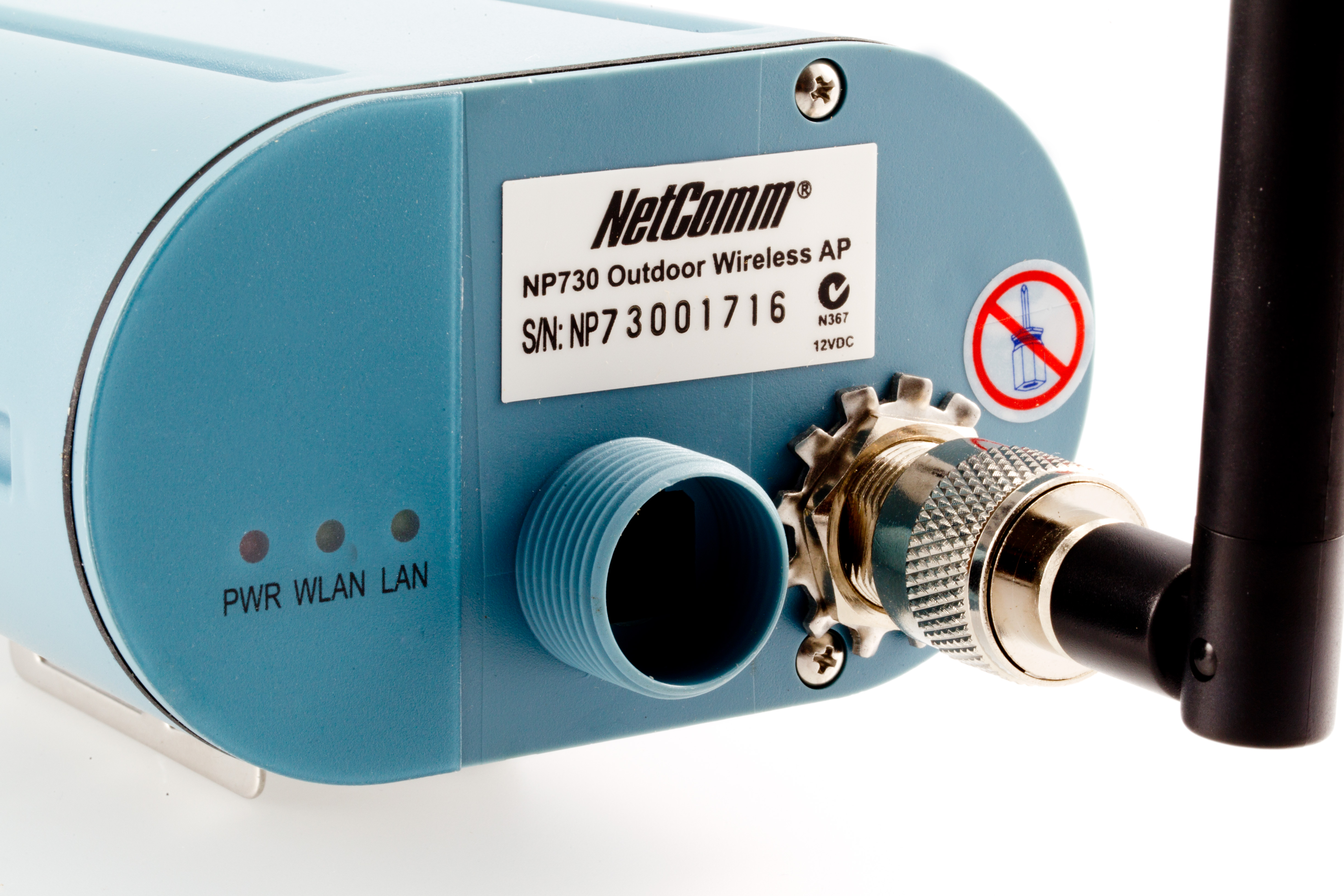

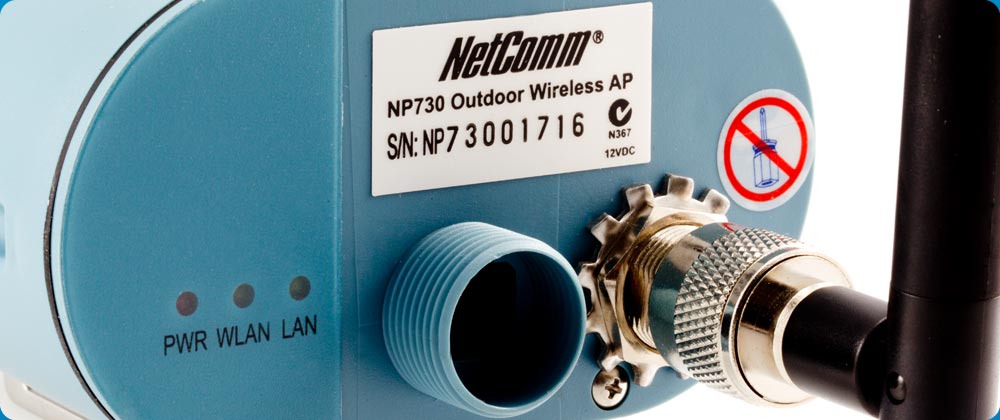

Enhance and extend your wireless coverage using the detachable 5dBi antenna and 200mw inbuilt booster.  Ideal for offices, warehouses, shops and other commercial premises, the outdoor Wireless Access Point lets you create a secure and reliable wireless network for multiple devices over a radius of up to 5km.

Power anywhere

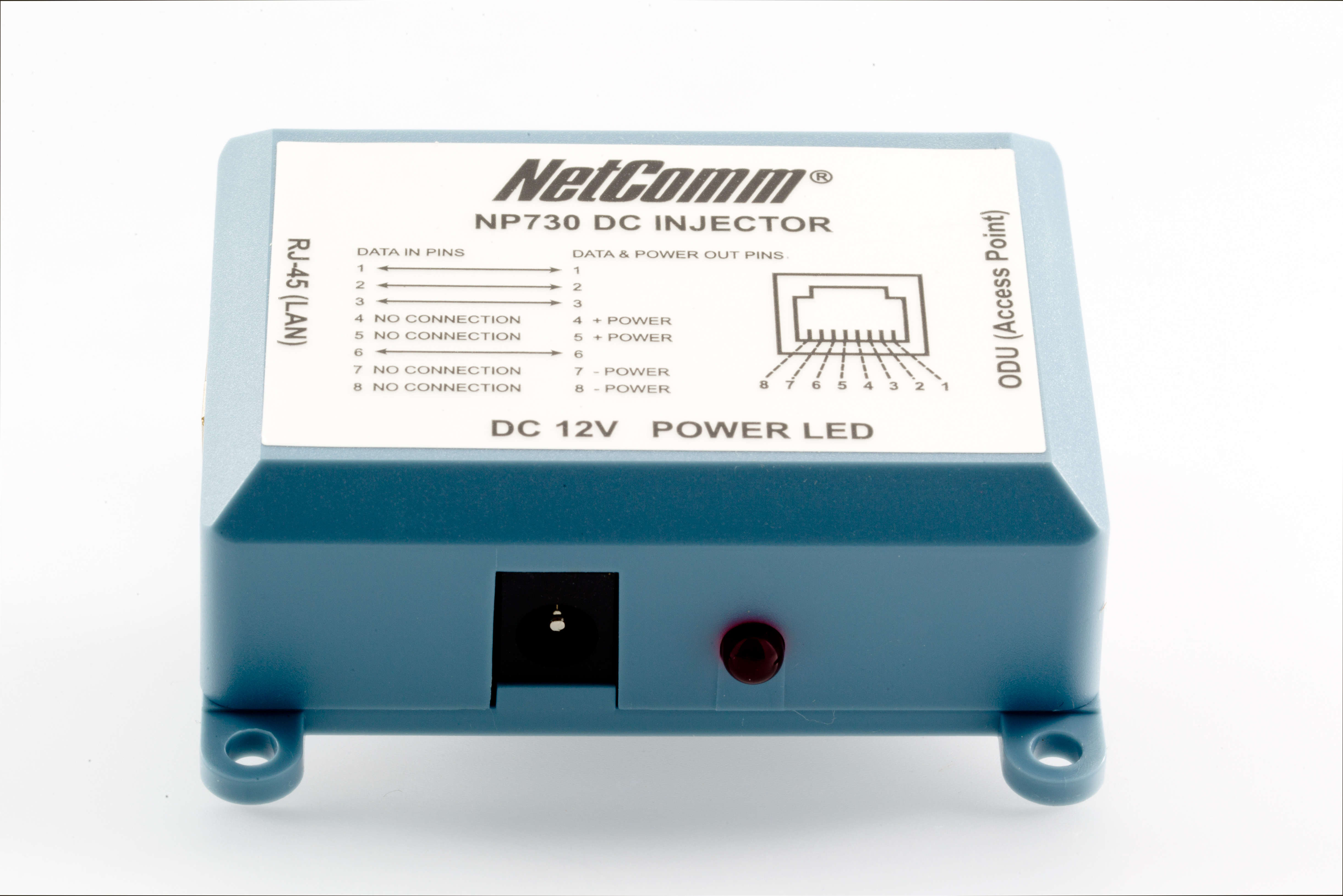

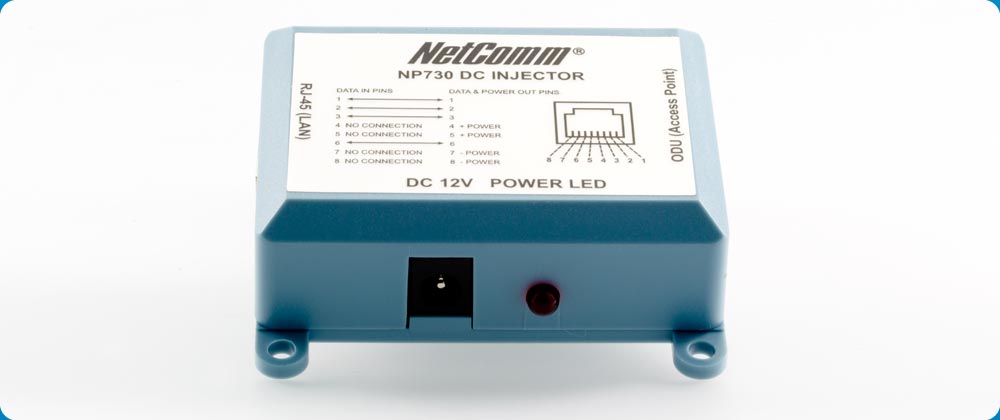

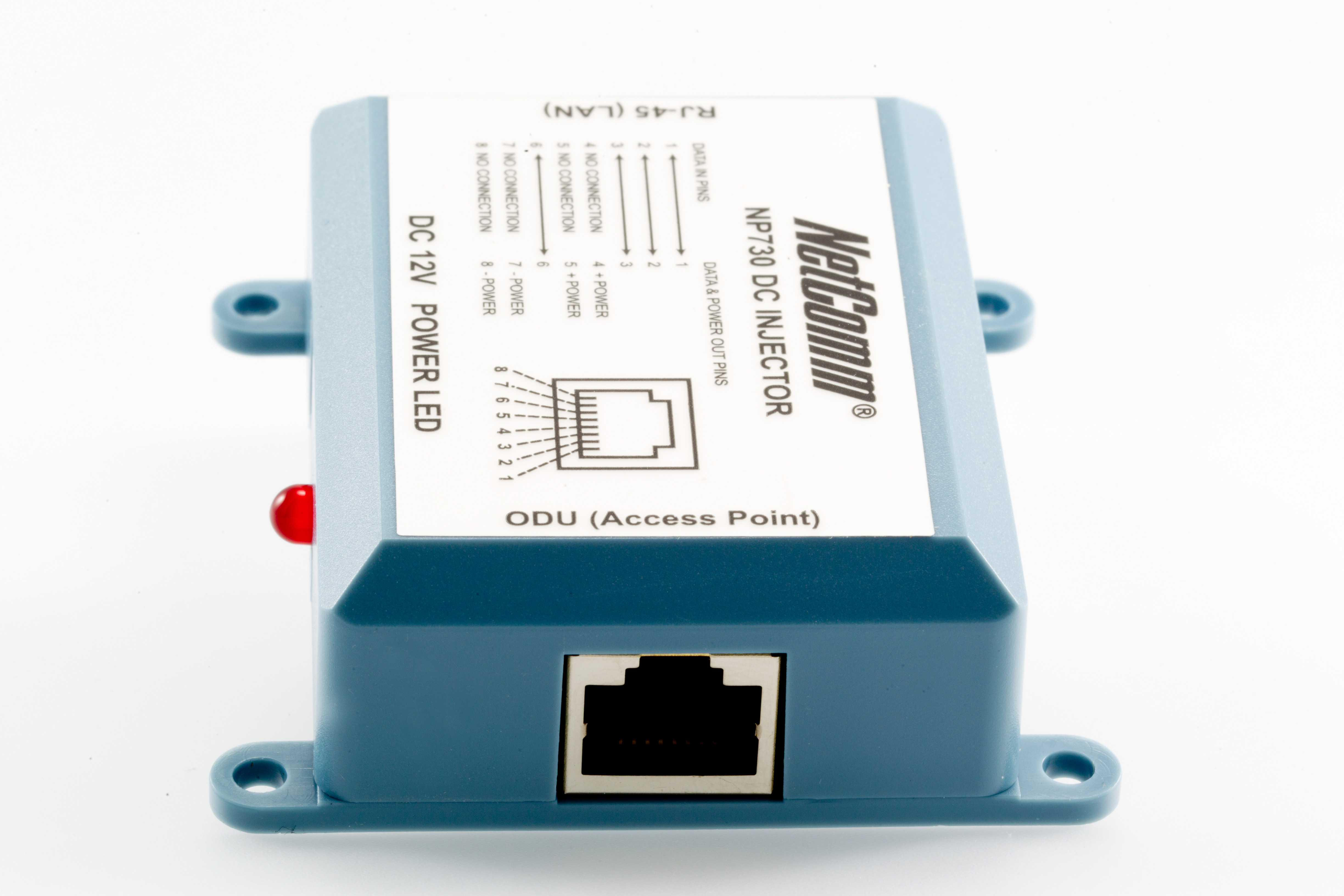

The Power over Ethernet injector lets you deploy the Wireless Outdoor Access Point in remote environments where power is not available to ensure a strong wireless signal in any deployment situation.
NP730 - Outdoor Wireless Access Point

Technical Specifications

STANDARDS COMPLIANCE

  • IEEE 802.11b/g
  • IEEE 802.3
  • IEEE 802.3u

SDRAM

  • 8 MB

FLASH

  • 2 MB

RADIO FREQUENCY TYPE

  • DSSS / OFDM

MODULATION

  • IEEE 802.11b: CCK,DQPSK,DBPSK
  • IEEE 802.11g: OFDM with BPSK, QPSK, 16QAM, 64QAM

FREQUENCY BAND

  • America/FCC: 2.412~2.462 GHz (11 channels)
  • Europe CE/ETSI: 2.412~2.472 GHz (13 channels)

TRANSMISSION POWER

  • IEEE 802.11b: 20dBm
  • IEEE 802.11g: 20dBm

TRANSMISSION RATE

  • IEEE802.11b: 1/ 2/ 5.5/ 11 Mbps
  • IEEE802.11g: 6/ 9/ 12/ 18/ 24/ 36/ 48/ 54 Mbps
  • Super G: up to 108Mbps

ACCESS POINT INTERFACES

  • Auto MDI/MMDI-X Ethernet 10/100Base-TX: RJ-45

SENSITIVITY

  • -86dBm @ 11Mbps,PER< 8%
  • -64dBm @ 54Mbps,PER< 10%

ANTENNA TYPE

  • 5dBi detachable antenna with N type connection

SECURITY SYSTEMS

  • 64-bit/128-bit/152-bit/ WEP encryption
  • Wi-Fi Protected Access(WPA)

WIRELESS SETTING

  • Operation Mode-AP/Wireless Client/Repeater/Bridge(WDS)PtP and PtMP Mode

SOFTWARE/FIRMWARE

  • Site Survey
  • DHCP Client
  • Suppressed SSID
  • Wireless access control by MAC address (deny or accept)
  • WPA Support (WPA personal and enterprise)
  • Web-based configuration
  • Windows ”Locator” program to help find IP in DHCPclient mode
  • Firmware upgrade and configuration backup via Web
  • Reset to default by Web UI

OPERATING ENVIRONMENT

  • Operating Temperature: -10 ~ +70°C

POWER

  • DC 12 Volt + 5%; 1.5A (Max.)
  • AC adapter AC 100V ~ 240V

REGULATORY APPROVAL

  • FCC Part 15 B (US)
  • CE
  • C-Tick

NETWORK MANAGEMENT

  • System OS Support
  • Windows 2000/XP

STANDARD ACCESSORIES

  • 25M RJ45 Cable
  • 2M RJ45 Cable
  • Bracket
  • DC Injector
Specifications are subject to change without notice
