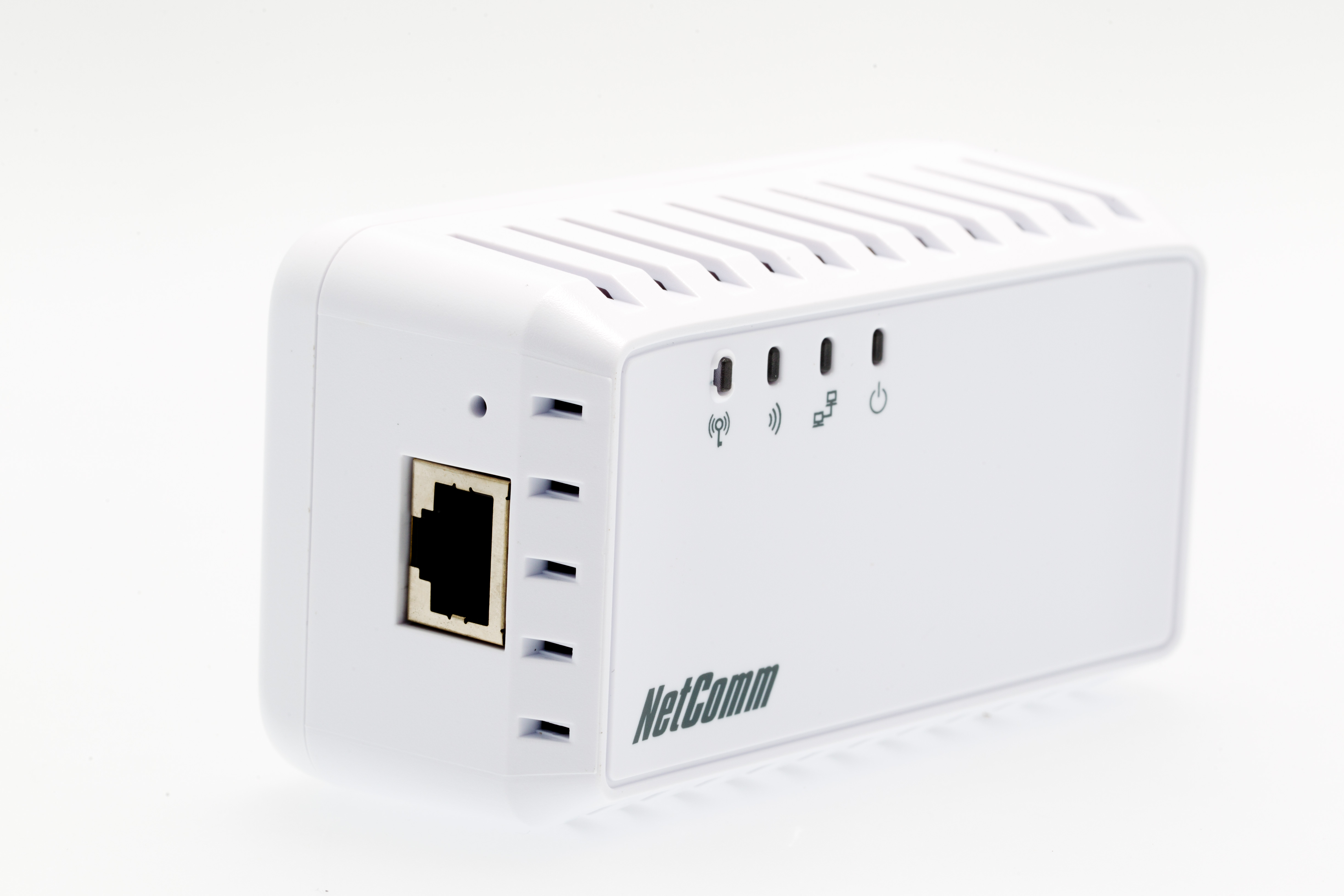

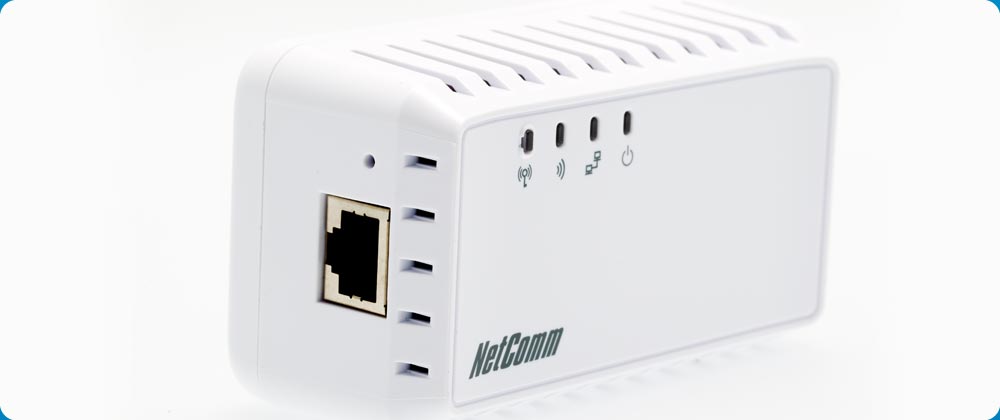

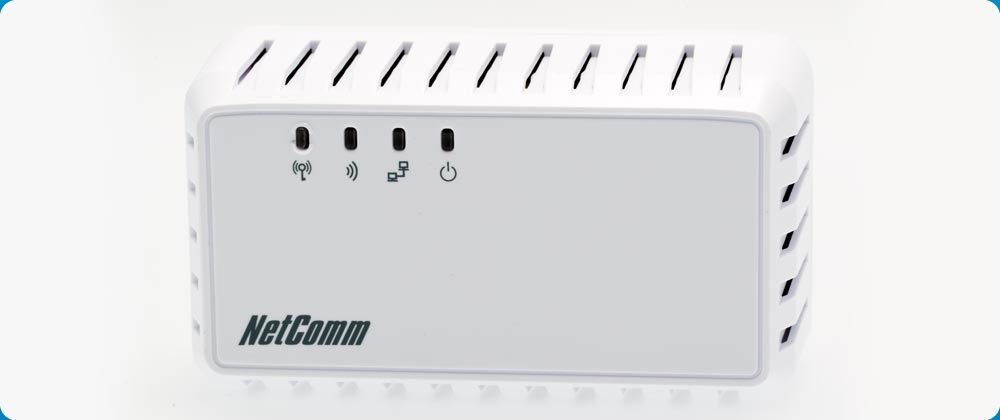

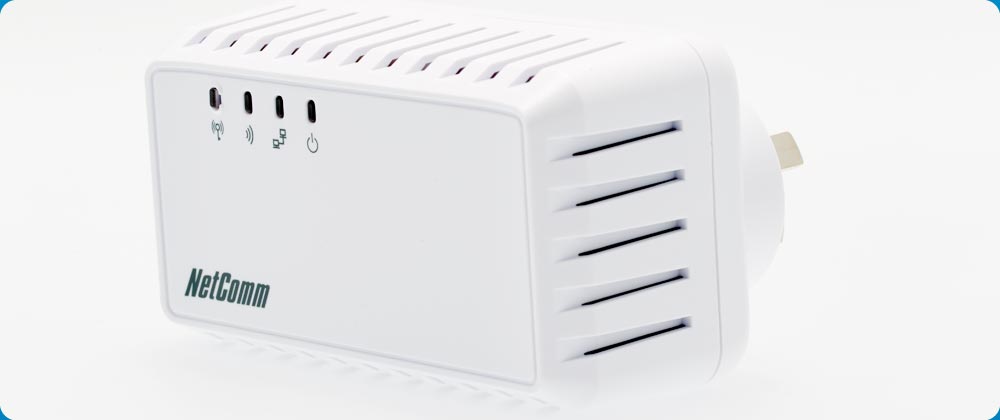

Wireless N Extender

Combat weak wireless signals in the home or office with a three-in-one wireless boost. The Wireless N Extender puts an end to unstable, inconsistent or non-existent wireless signals by working as a wireless repeater for existing wireless networks, a wireless access point for Internet connections without wireless and as a wireless bridge to turn a wireless signal into a wired connection. The unobtrusive device connects directly to the wall and features a WPS button and advanced wireless security features.
NP124
NP124

Three devices in one.

With triple functionality the Wireless N Extender abolishes ineffective wireless signals on any wireless network.
1. Wireless repeater. Extend and strengthen your existing wireless signal by transforming it into a wireless network with the power to reach the far corners of the home or office.
2. Wireless access point. If you don't have wireless connectivity simply connect the Wireless N Extender directly into your modem/router via an Ethernet cable to achieve a powerful wireless signal throughout the home or office.
3. Wireless bridge. Turn a wireless signal from your router into a wired Ethernet connection to connect home entertainment devices such as Internet-enabled televisions and gaming consoles.

Powerful WiFi.

With superfast WiFi speeds reaching 300Mbps you can send and receive a wireless signal to multiple devices such as laptops, tablet computers, smart phones and gaming consoles in upstairs bedrooms and other hard to reach areas.
NP124
NP124

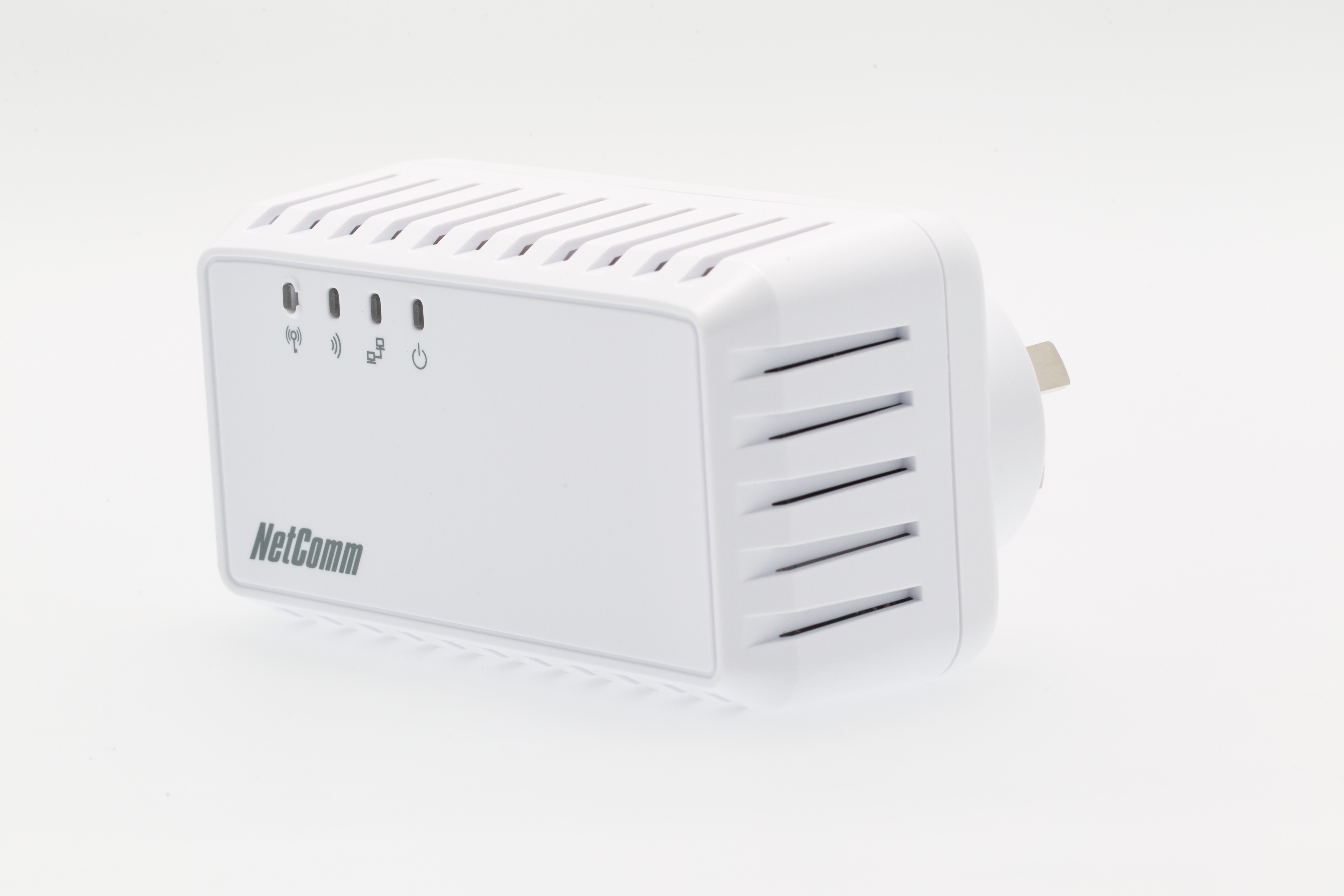

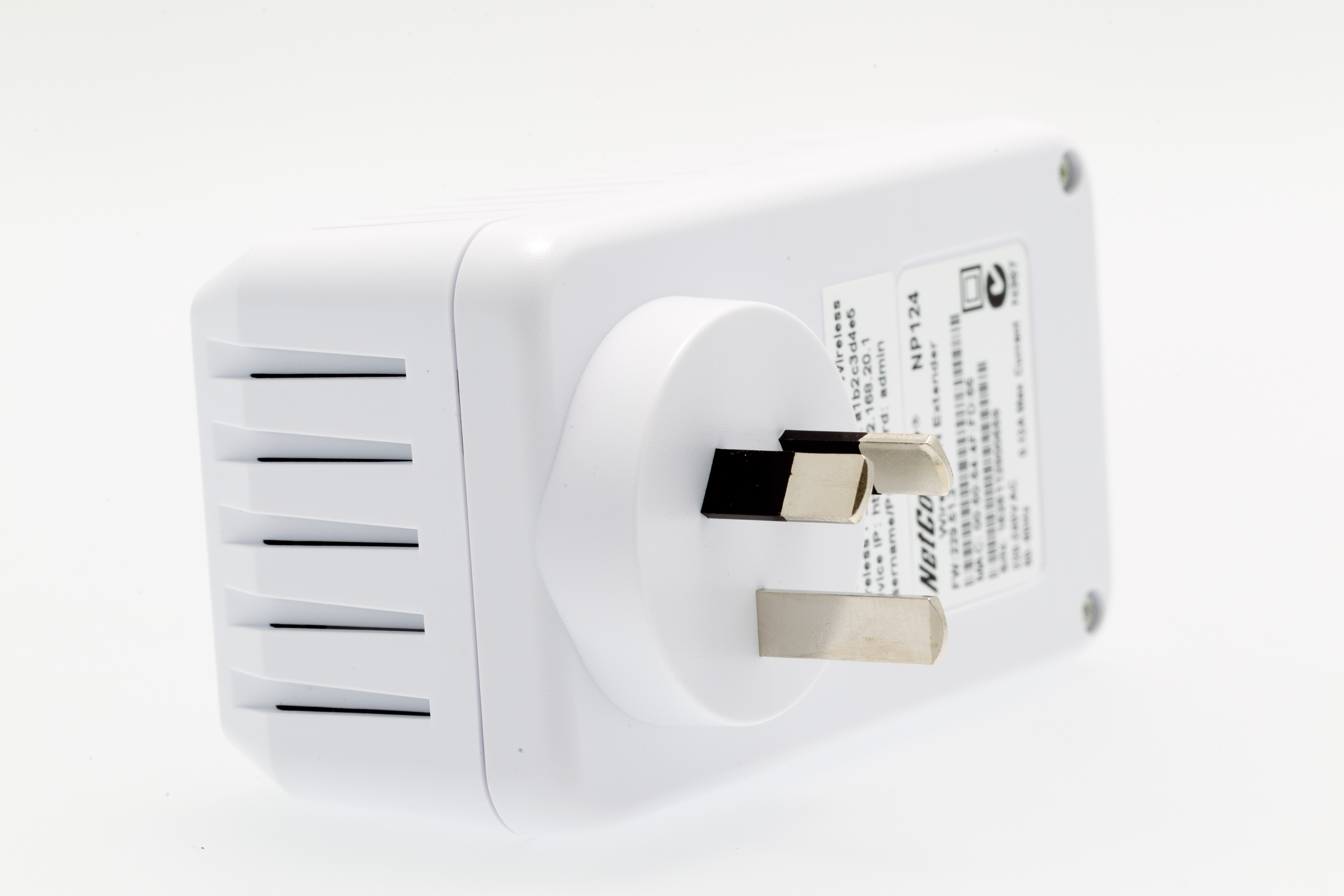

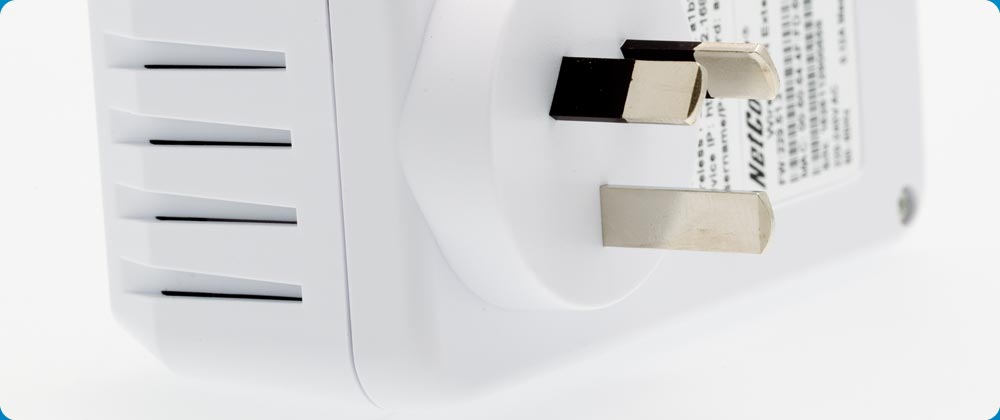

Connects directly to the wall

The compact Wireless N Extender discreetly plugs into any wall in the house to eliminate wireless voids without consuming valuable space.


Technical Specifications

Standards

  • Wireless: IEEE802.11n, IEEE802.11b/g
  • Ethernet: IEEE802.3 10/100, IEEE802.3u, IEEE802.3ab

Network Support

  • OFDM 1024/256/64/16/8 QAM, QPSK, BPSK and ROBO Modulation Scheme Wireless
  • IEEE802.11n: BPSK, QPSK, QAM-16, QAM-64
  • IEEE802.11g: BPSK, QPSK, QAM-16, QAM-64
  • IEEE802.11b: CCK, QPSK, BPSK

Security

  • Wireless: 64/128-bit WEP, WPA, WPA2

Hardware

  • Key Chipset: Ralink RT3052 Network Processor + WLAN Controller
  • SPI FlashRom: 4MB
  • SDRAM: 16MB

Operating Systems

  • OS Independent with TCP/IP protocol installed

Power Requirements

  • Supply voltage range: 100VAC - 240VAC (50/60Hz)
  • Power Consumption: Less than 4W
  • Max Current: 0.12A

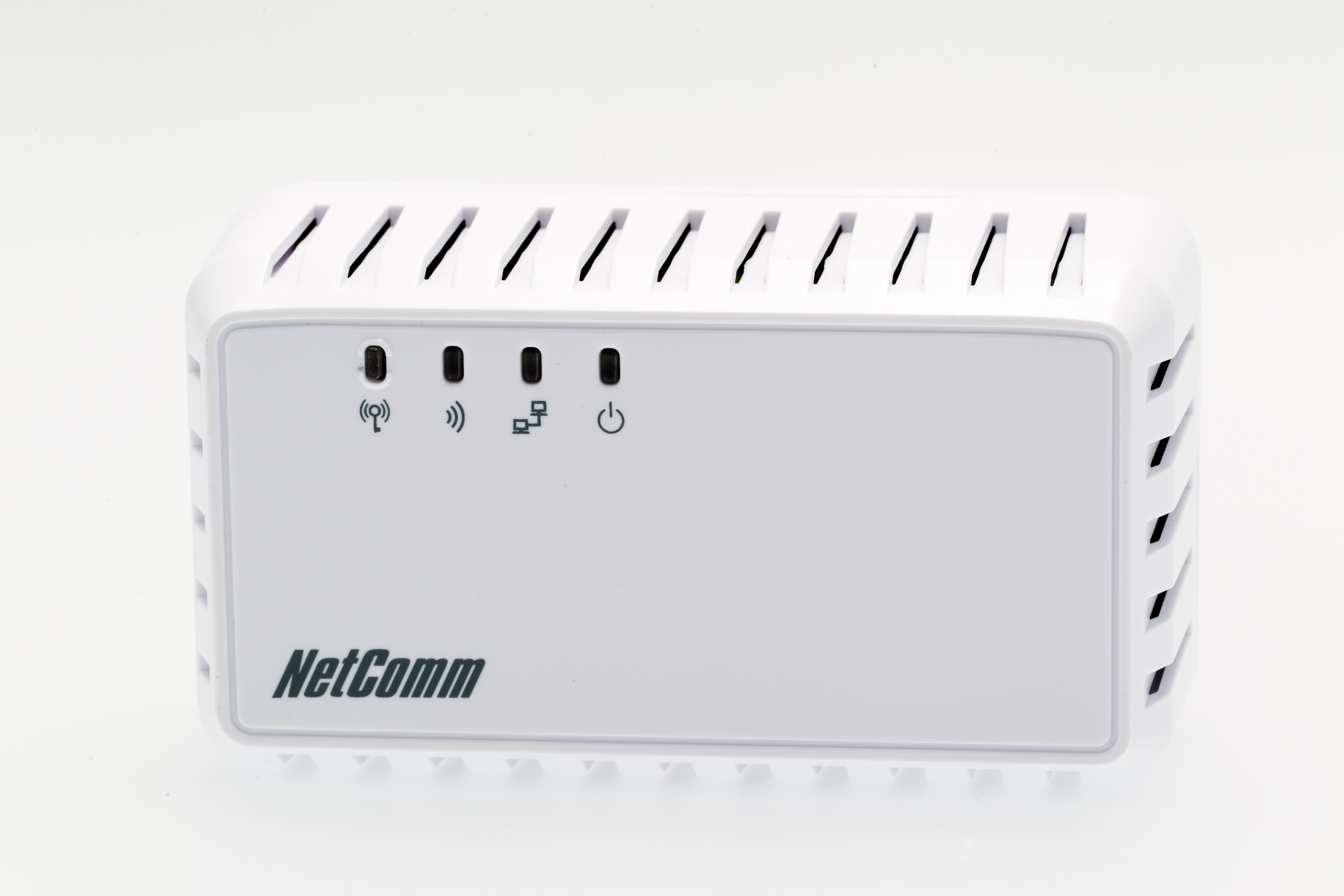

LED Indicators

  • 1 x Power LED
  • 1 x Ethernet LED
  • 1 x Wireless on/off
  • 1 x WPS button and LED

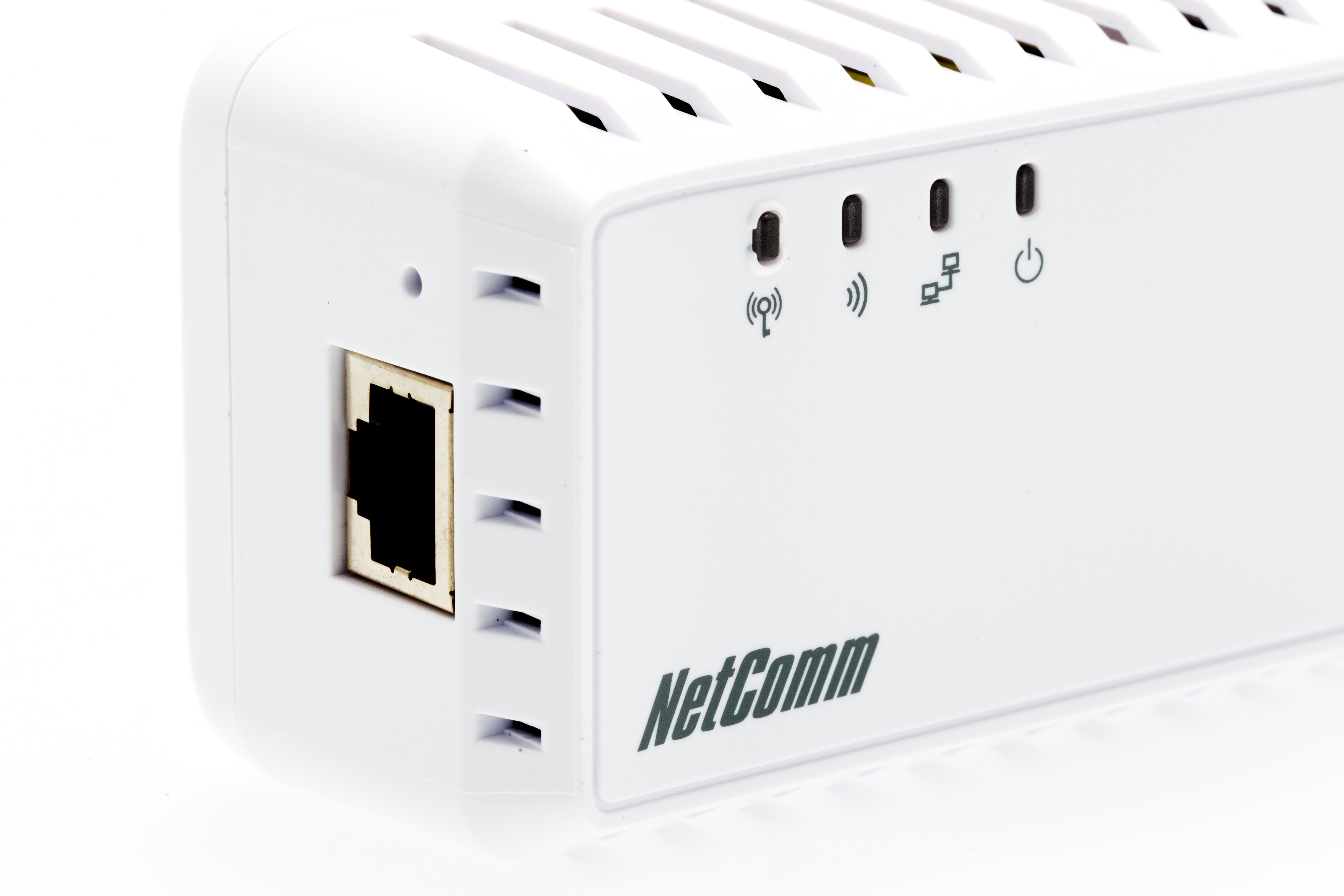

External Connectors

  • 1 x RJ45 for 10/100 Base-T LAN
  • 1 x Reset button
  • 2 x Internal antennas

Measurements

  • 105mm x 58mm x 42mm
  • 160g / adapter

Environmental Temperature

  • Operating: 0°C to 40°C
  • Non-Operating: -25°C to 70°C

Humidity

  • Operating: 30% to 90% relative humidity (non-condensing)
  • Non-Operating: 30% to 95% relative humidity (non-condensing)

Regulatory Approval

  • SSA110503
  • C-Tick
  •
  •
Specifications are subject to change without notice
