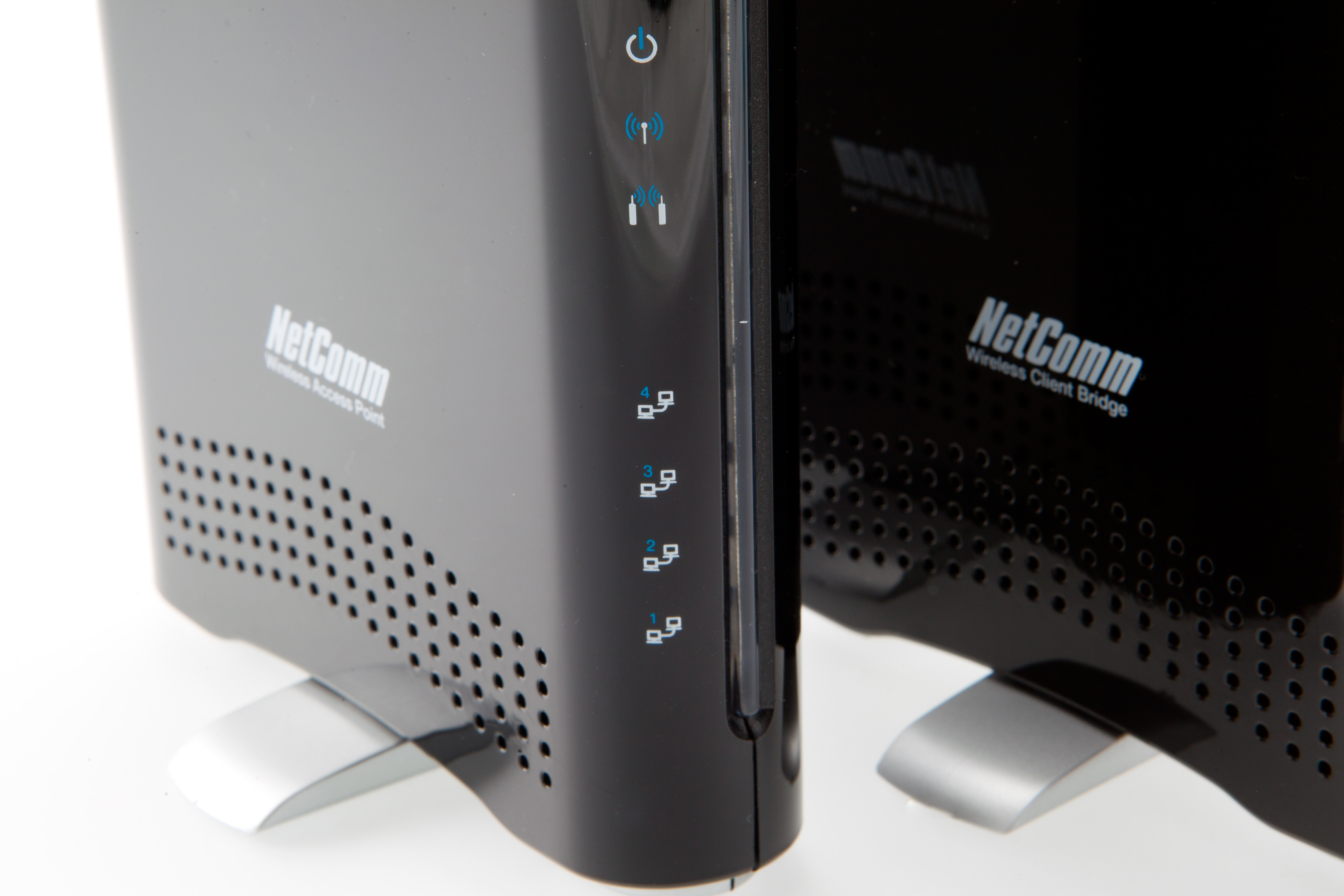

Connect every device to the network in your house with plug and play simplicity. The 2 pre-paired routers transmit a secure and reliable high-speed Wireless N connection throughout your home; and the 4 Ethernet ports at each end support multiple wired connections. With advanced security features your network will remain secure from unauthorised outside sources ensuring the best possible performance is always achievable.
Two ready-to-go wireless.

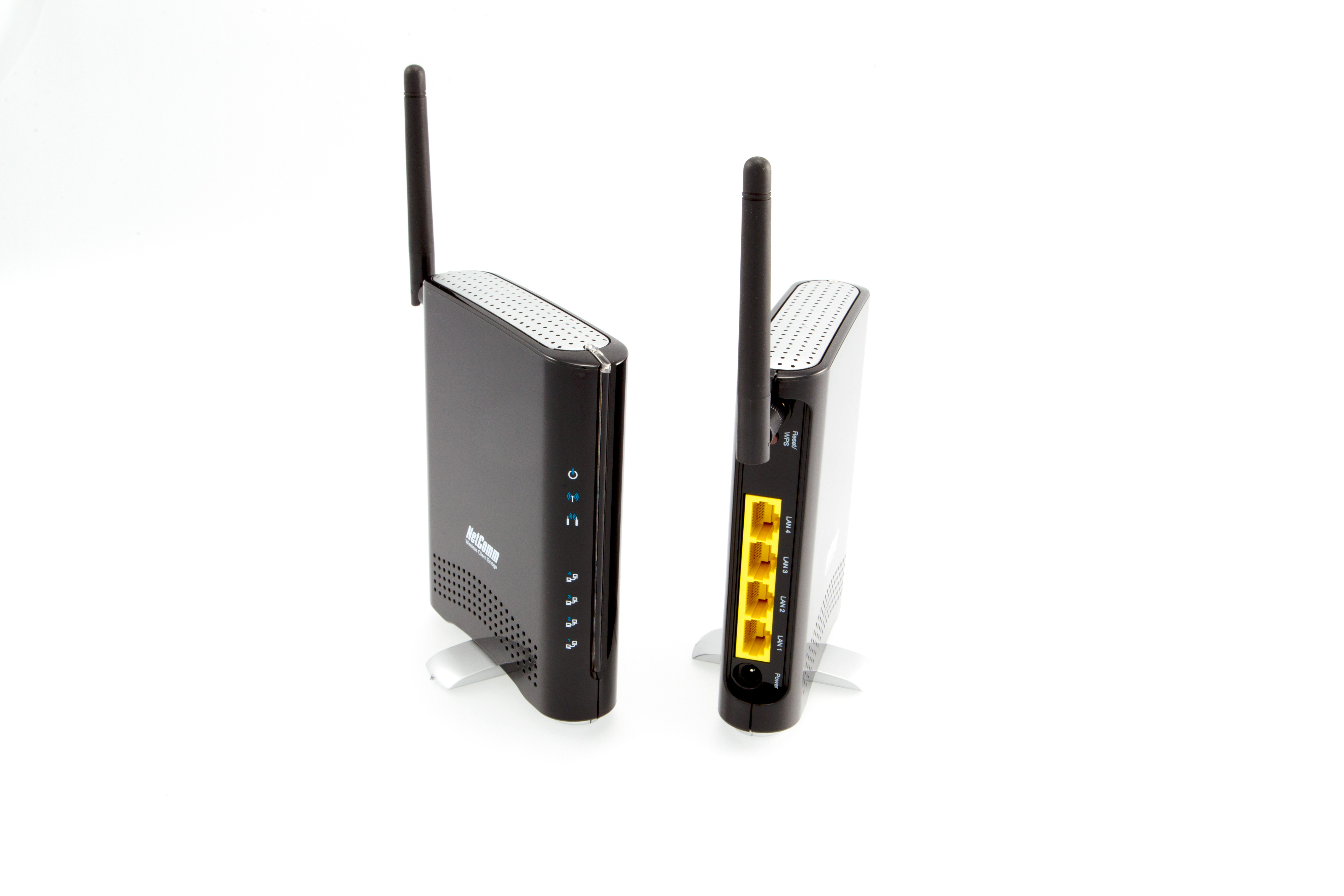

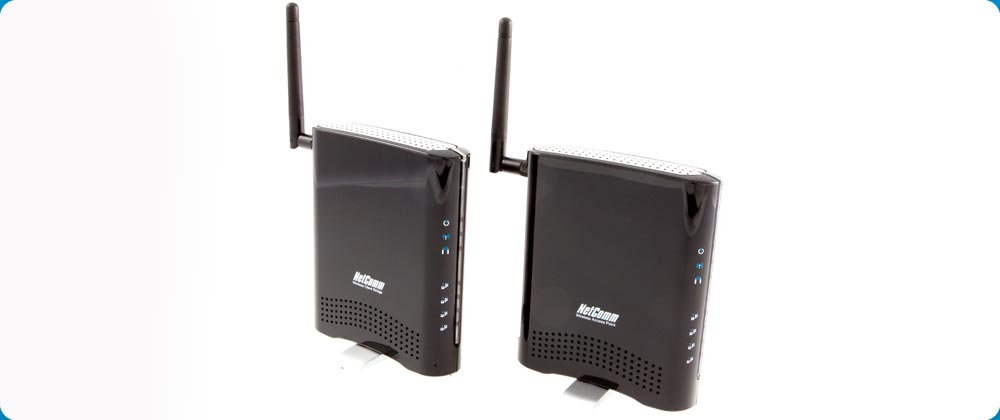

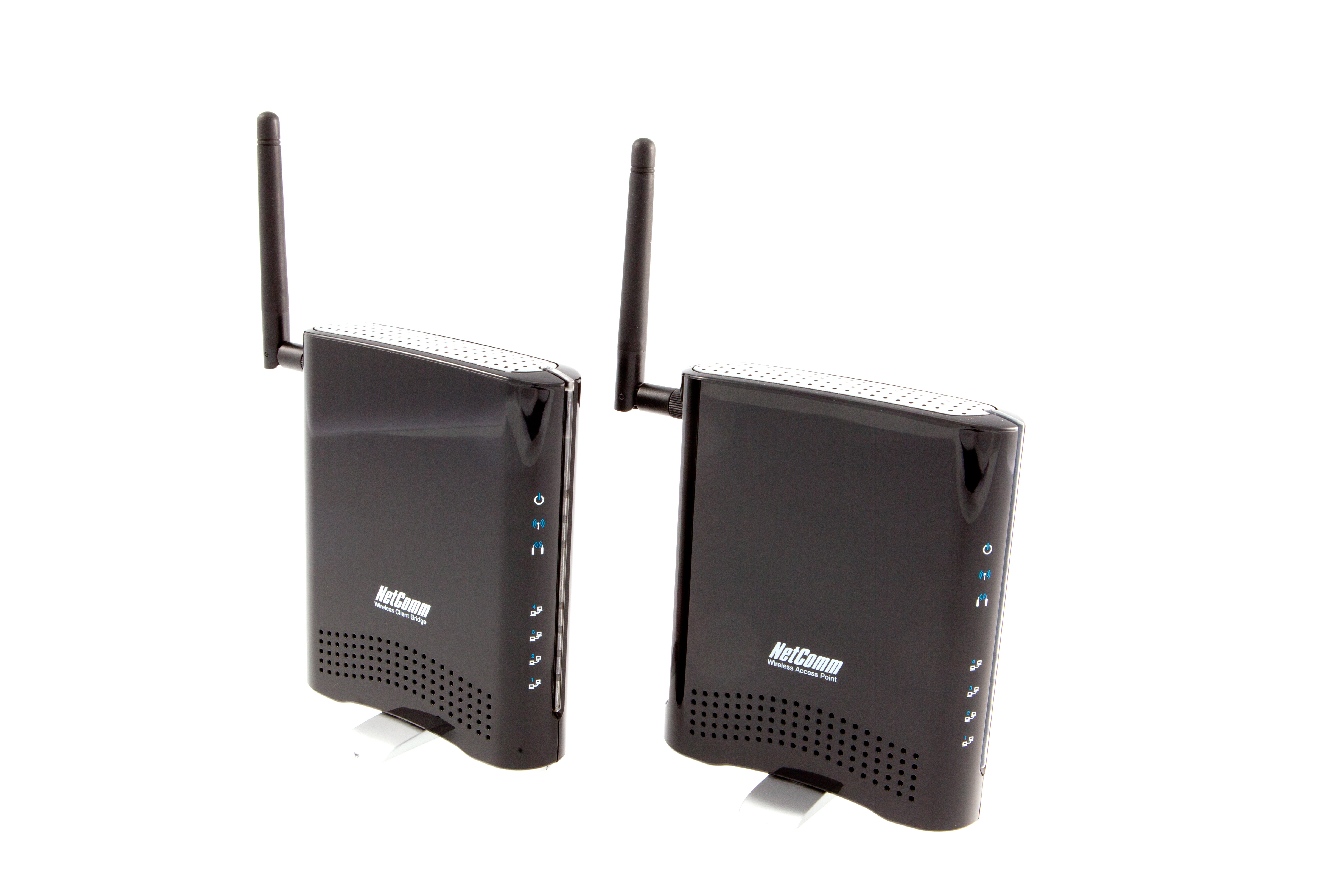

The 2 pre-paired wireless routers enable the simplest possible setup of a reliable wireless network connection so you can enjoy instant wireless connectivity without having to install a new Internet connection point or run a cable across the floor.
Instant WiFi.
Ideal for high-definition media streaming and large file downloads, the Kit features Wireless N speeds reaching 300Mbps to deliver the highest possible data transmission speeds and simultaneous multi-device connectivity without compromising performance.
End-to-end Ethernet.

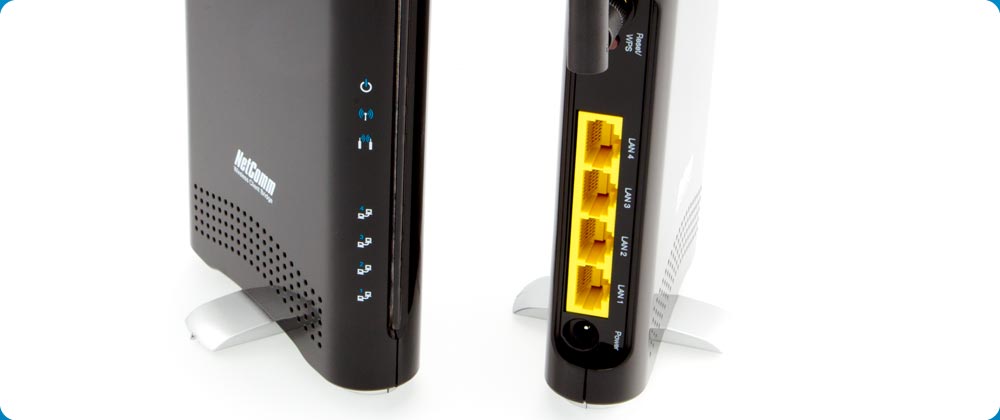

With 4 Ethernet ports at each end you can maximise the potential of your Internet connection by connecting multiple wired devices such as Internet-enabled TVs, Blu-ray players, gaming consoles, personal video recorders and digital set top boxes.
Technical Specifications
HARDWARE
MCU – RT3052, 384MHz embedded RF/MAC/BBP
Memory– 32MB SDRAM
Flash: 4MB
Physical Interface

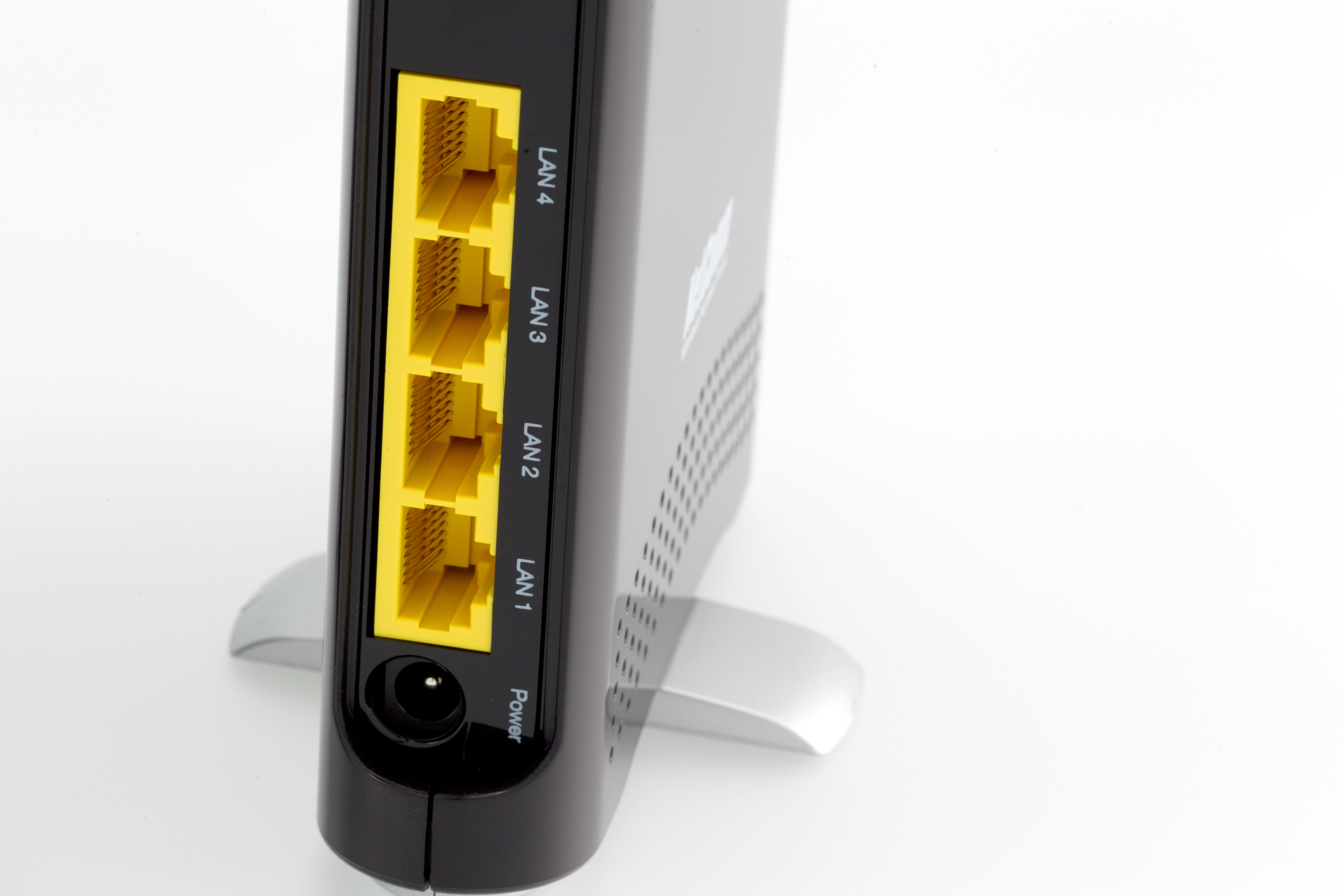

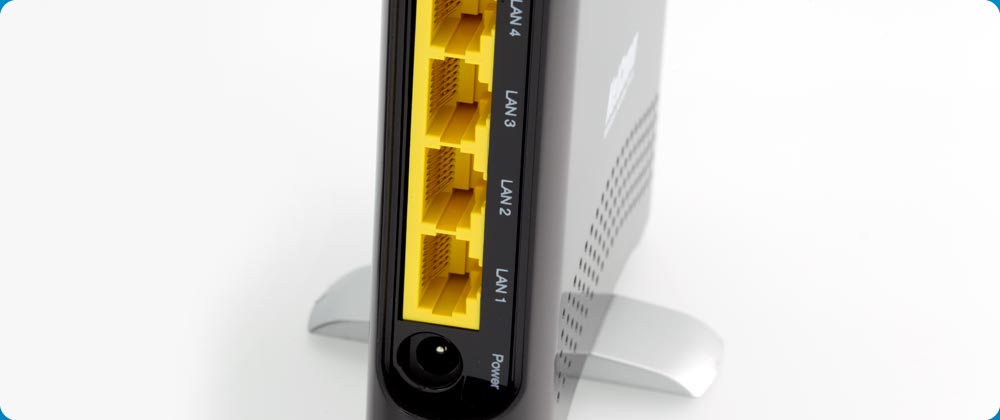

Four x 10/100 Fast Ethernet RJ-45 LAN, Power Jack
WPS (Wi-Fi Protected Setup) /Reset button
Power Supply: 12V/1A
SOFTWARE FEATURES
Topology: Infrastructure
Operation Mode: AP/Client Bridge/ AP Repeater
LAN
DHCP Server
Static Routing Table
Wireless
64/128 bit WEP Encryption
WPA/WPA2 Personal (WPA-PSK using TKIP or AES)
Wi-Fi Protection Setup (WPS)
2 Transmitting and Receiving antennas
802.11n compliant
Data rate: up to 300Mbps
Management
Configuration: Web-based configuration (HTTP)
Firmware Upgrade: Upgrade firmware via web-browser
Administrator Setting: Administrator password change Idle time out
Reset Setting: Reset to Factory Default
Bandwidth monitoring
ENVIRONMENT & PHYSICAL
Temperature Range: 0 to 45° C - Operating, -10 to 70 ° C - Storage
Humidity (non-condensing): 15%-95% typical
Dimensions: 135mm (L) x 110mm (W) x 39mm (H)
Specifications are subject to change without notice
