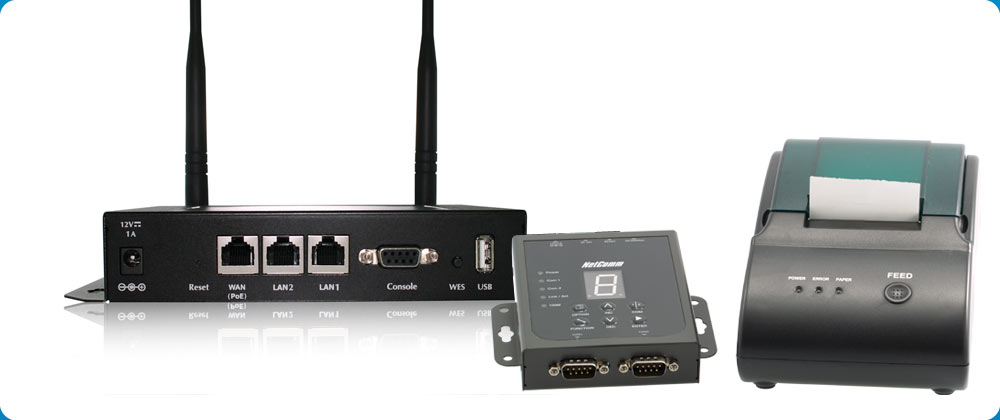

Wireless N Hotspot HS1100N & Network Ticket Generator AG1100 - HS1100NPAK


  • Overview
  • Specifications
  • Downloads
Support Buy Online Find a Retailer

Wireless N Hotspot

Create a powerful WiFi hotspot for up to 100 users at a time and benefit from easy control over user access time, payment and customer bandwidth using the integrated authentication, authorisation and accounting features. The simple to install Wireless N Hotspot establishes a reliable wireless network using your chosen Internet service provider and preferred connection method. Designed to fulfil the needs of a public wireless network, the device supports VPN pass-through, Denial of Service attack protection, configurable user black listing and wireless security standards WEP, WPA-PSK, WPA2-PSK, IEEE 802.1x, TKIP and AES Cipher auto negotiation to effectively block unwanted users and other threats from the network.
HS1100npak
hs1100npak

WiFi for 100.

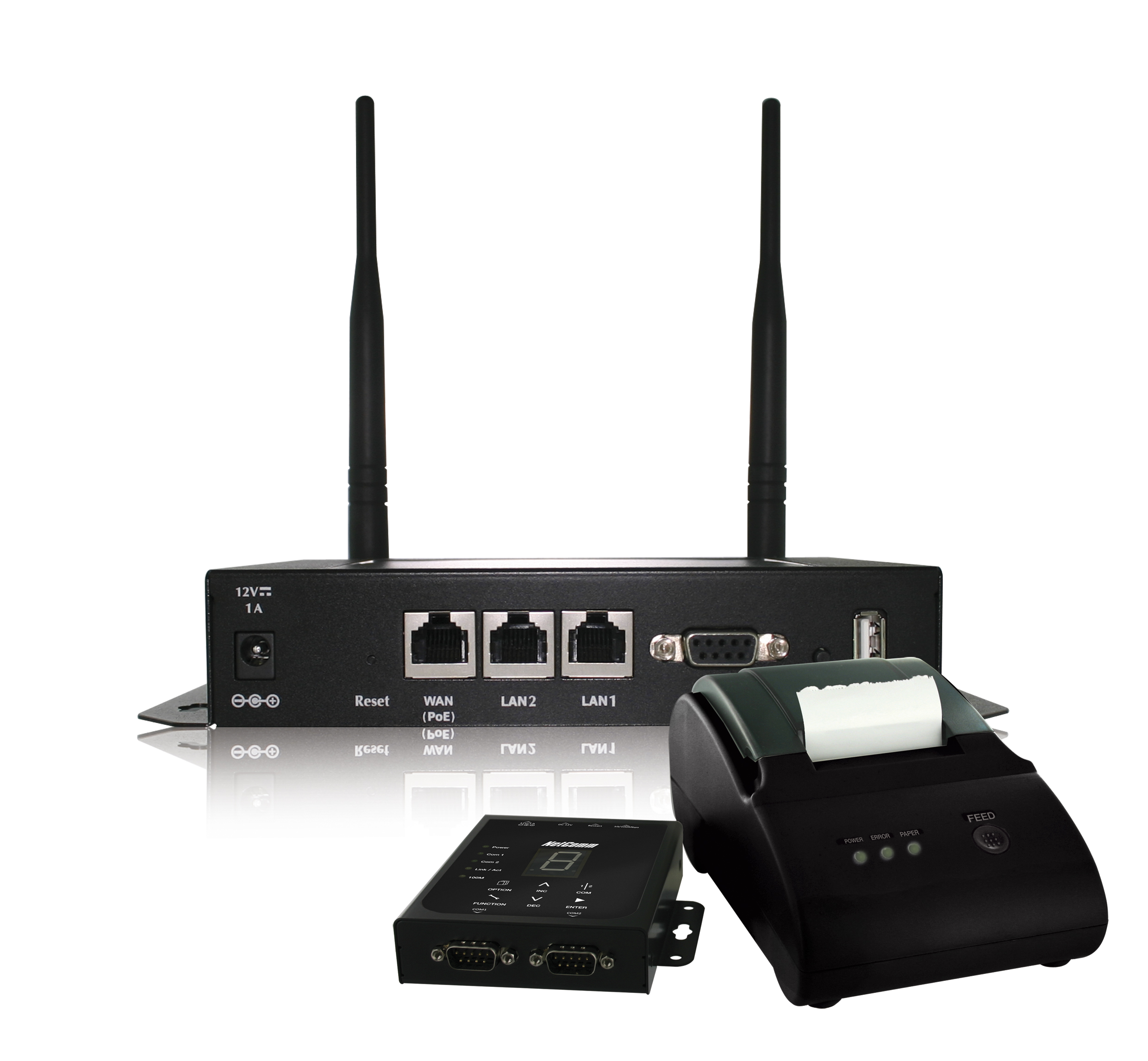

Share a fast 300Mbps WiFi connection with up to 100 users at a time. Ideal for the setup of commercial wireless hotspots, the Wireless N Hotspot includes 2 double sets of MIMO antennas to support high-speed data transmission rates for up to 100 laptops, tablet computers, smart phones, gaming consoles and other wireless devices

Super strong

Ideal for industrial environments, large conference venues, resorts or entertainment settings, the robust Wireless N Hotspot is easily mounted on a wall for maximum space efficiency. The dust proof and temperature resistant housing ensures durability and long-term performance in rugged environments and non-air-conditioned or heated premises (-30 to 70°C).
hs1100npak
hs1100npak

Complete public network management.

With integrated authentication, authorisation and accounting support, managing user access time, payment options and bandwidth allowances is easy. Whether you intend to charge or offer free WiFi, the Wireless N Hotspot gives you complete control over who receives access, for how long and at what price.

Network ticket generator.

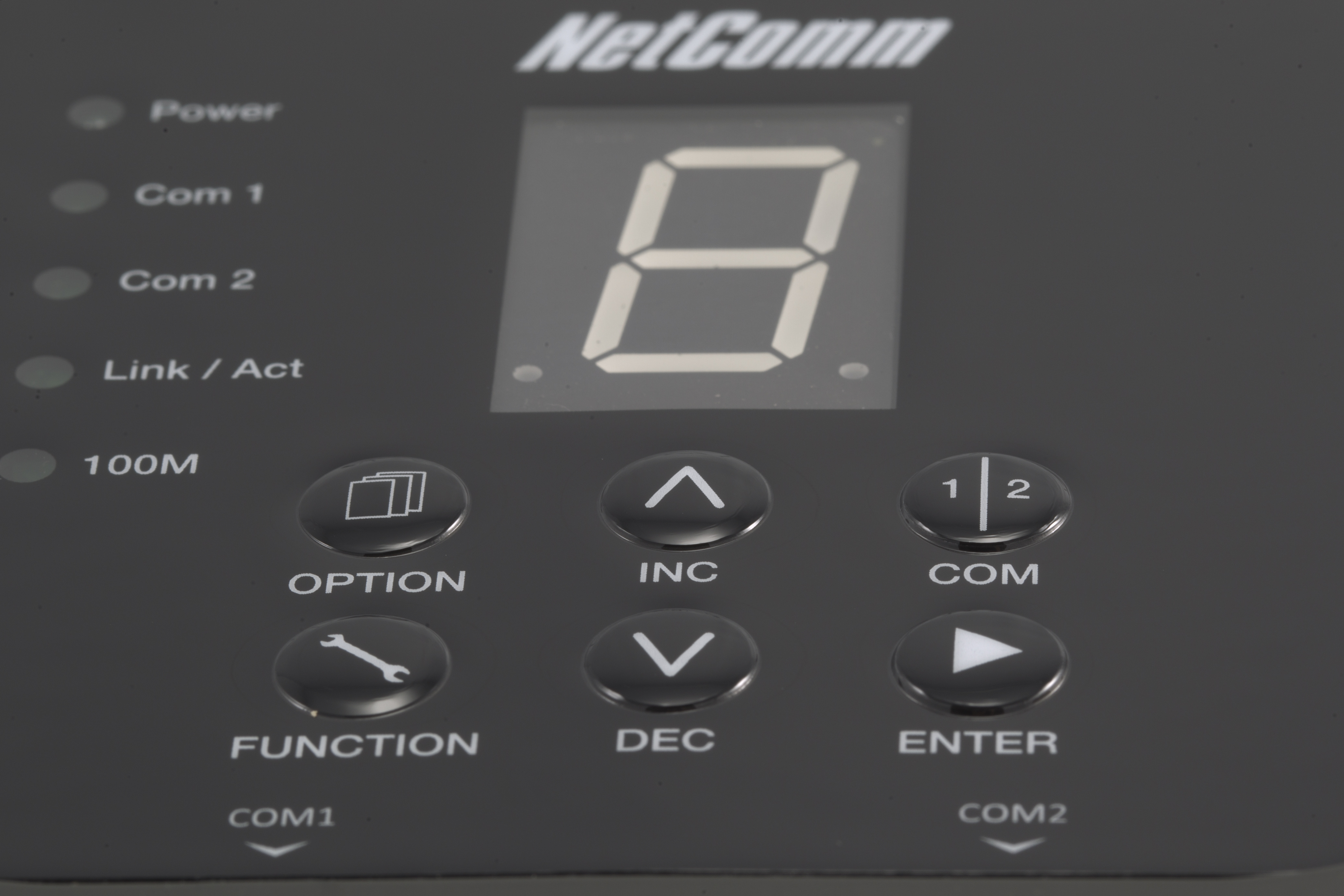

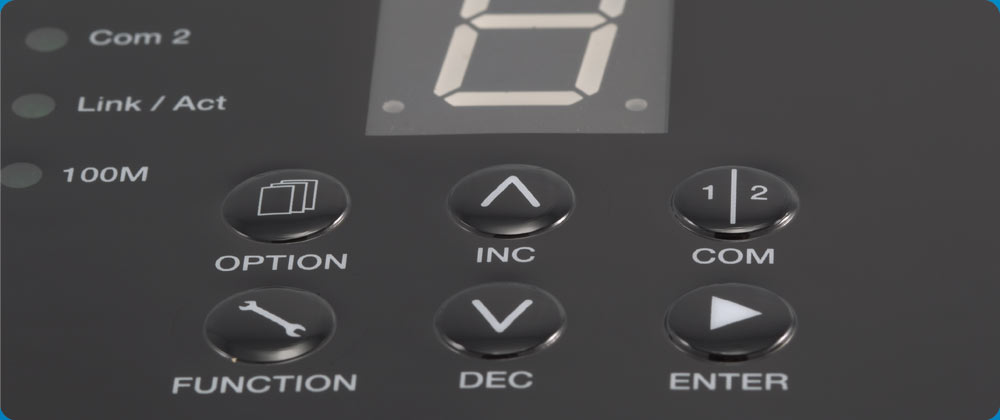

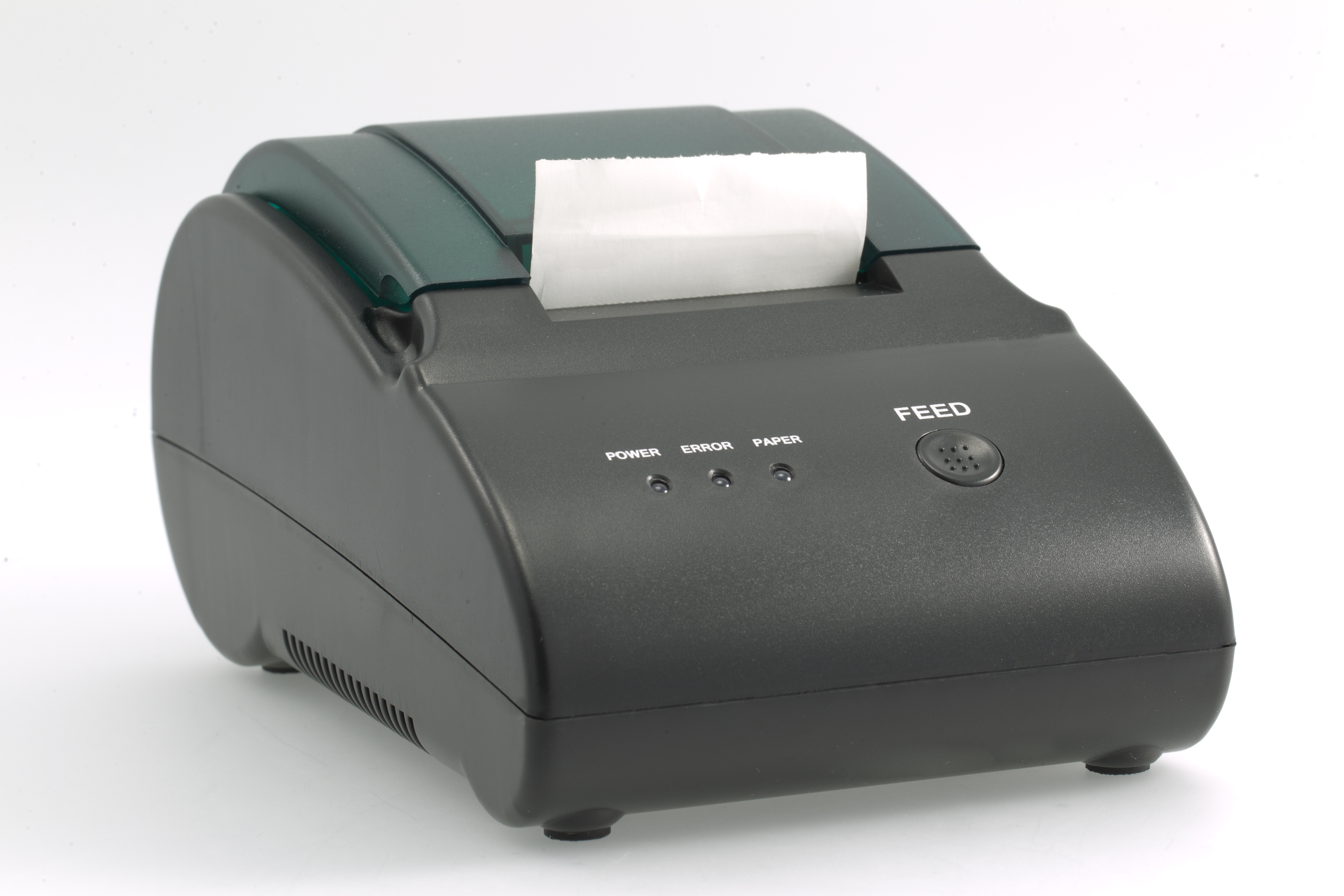

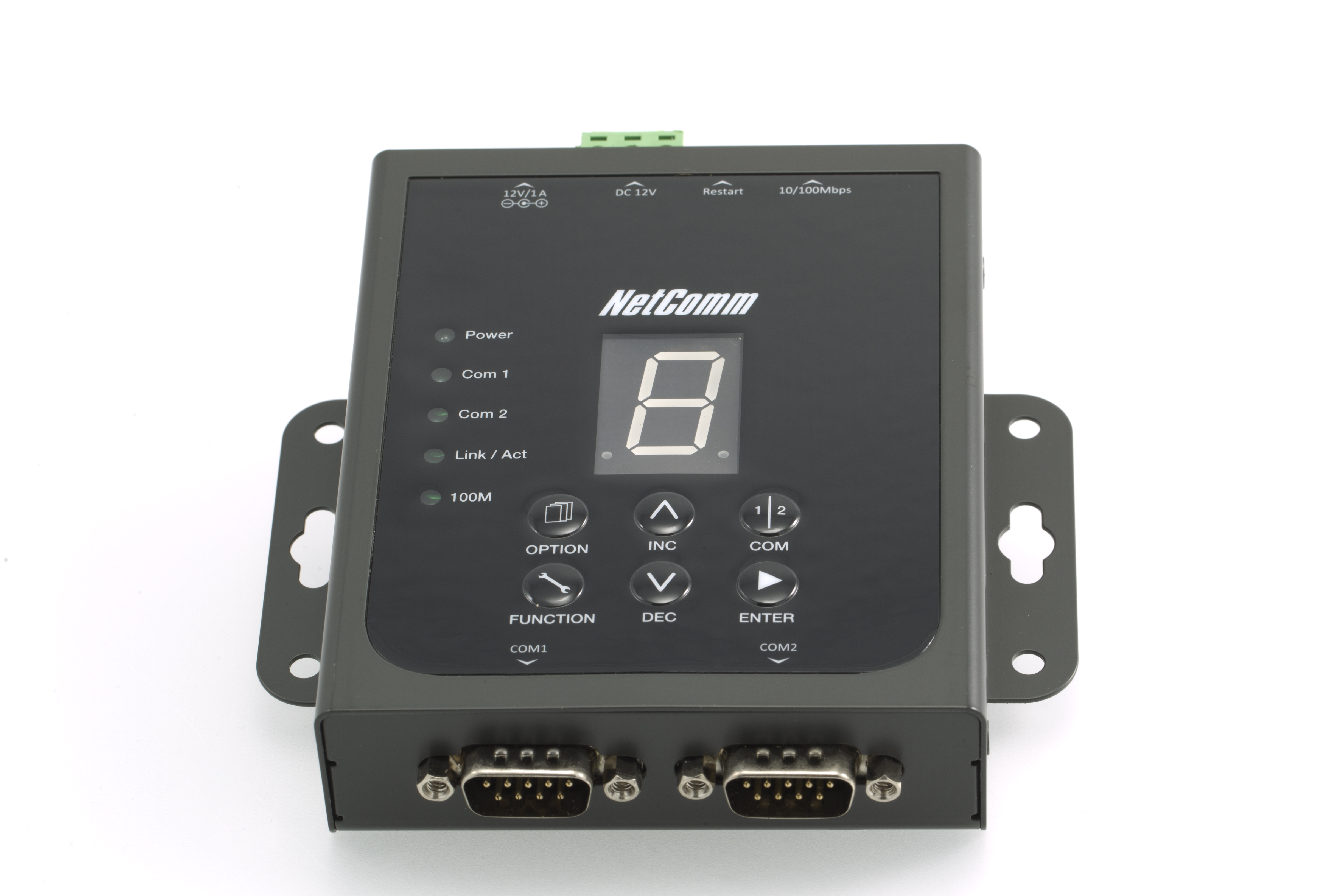

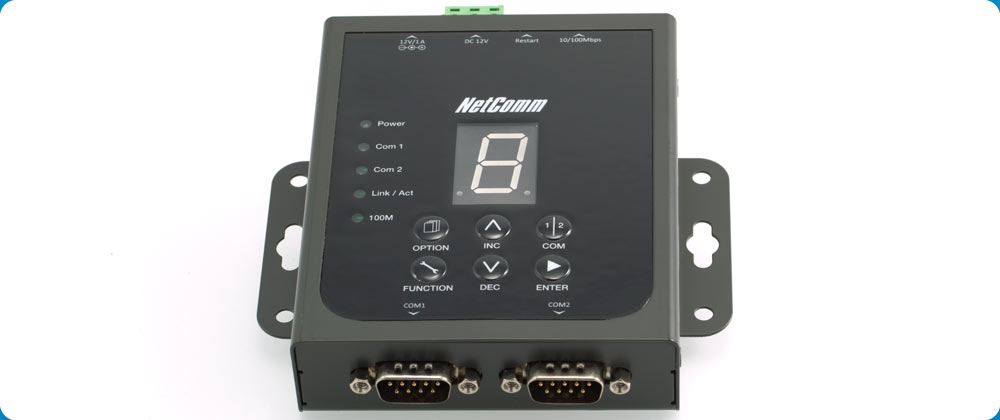

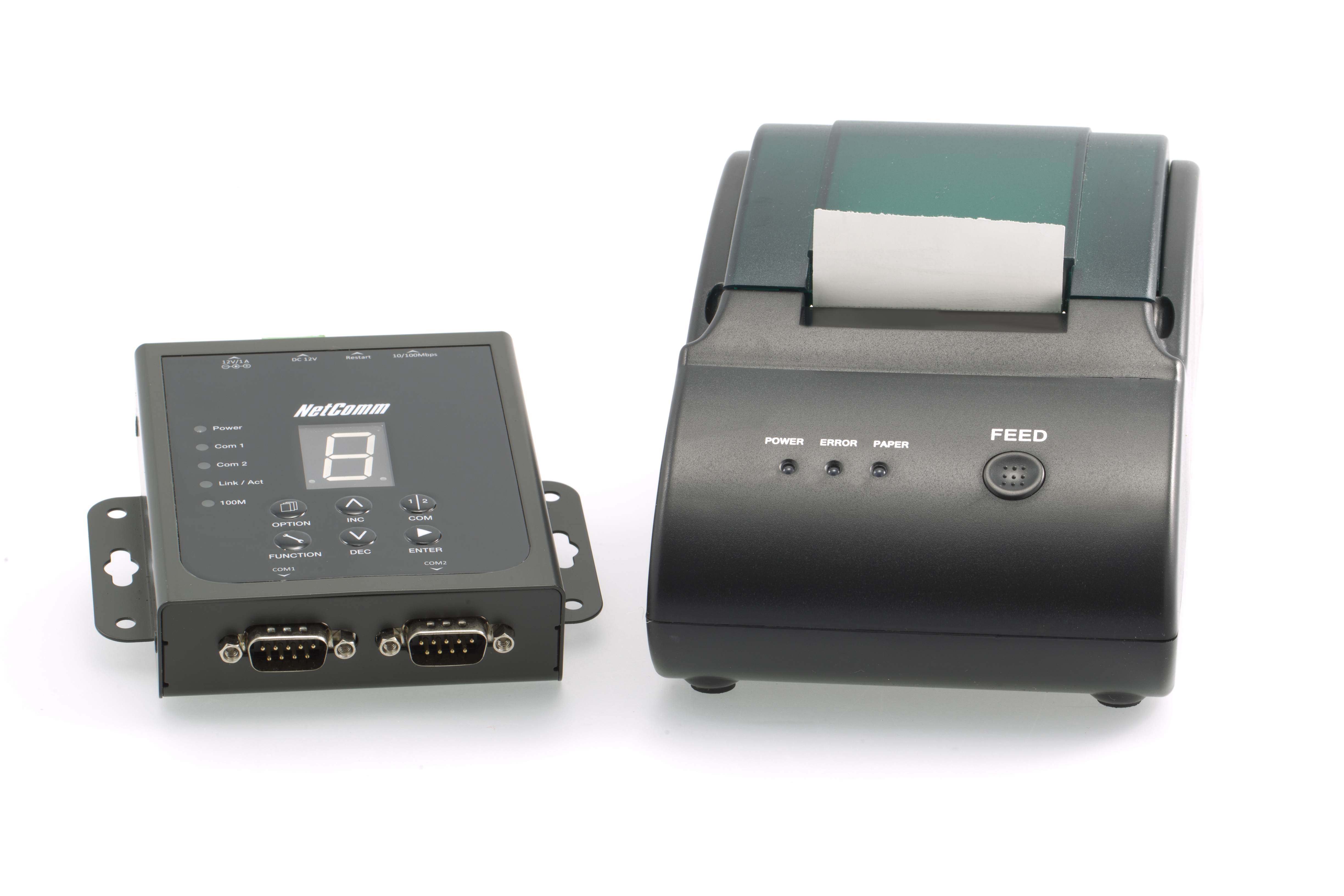

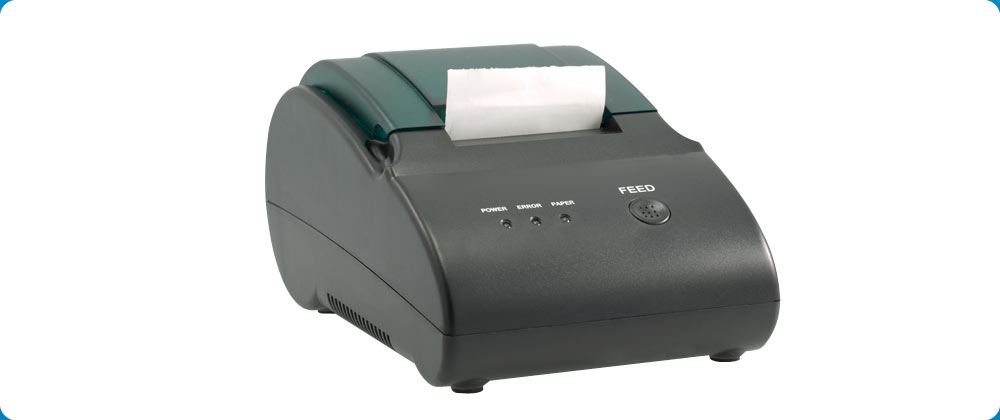

Pair the Wireless N Hotspot with NetComm's Network Ticket Generator to generate billing plans and on-demand customer accounts with the touch of a button. Quickly and easily print dockets outlining user access data and time as well as chosen data allowance.
hs1100npak

Technical Specifications

NETWORKING

  • Router, NAT mode, Static IP, DHCP and PPPoE on WAN interface
  • IP Plug and Play (IP PnP), DHCP Server, DHCP Relay configurable static route
  • Network Address Translation (NAT): DMZ Server Mapping, Public Accessible Server, Port and IP Redirect
  • Supports email service via designated email server
  • Walled Garden: supports Walled Garden Ad List to post Advertisement website links on user login portal page
  • MAC Address Pass-Through | Ethernet connection to external terminal servers

SECURITY

  • Security standards: WEP (64/128/152 bits), WPA/WPA2-PSK, IEEE 802.1X, and TKIP & AES Cipher auto negotiation
  • VPN Pass-Through (PPTP), DoS attack protection, Layer 2 isolation,
  • Configurable user Black List
  • MAC Access Control List | MAC address and user identity binding for local user authentication

USER MANAGEMENT

  • Supports 100 local accounts and 500 on-demand accounts for visitors
  • Simultaneous support for multiple authentication methods (Local, RADIUS*2, and On-demand) and local account roaming
  • Policy-based access control (per-role assignments based on Firewall Policies, Routing, Login Schedule, Bandwidth and Session)
  • User Session Management:
    • SSL protected login portal page
    • Support multiple logins with one single account
    • Session idle timer
    • Session and account expiration control
    • Login time frame control
    • Session limit
  • Import/Export local and on-demand accounts from/to a CSV file

MONITORING AND REPORTING

  • Online status monitoring of users, user Logs for traffic recording, user traffic session (TCP/UDP) logging
  • Uplink (WAN) connection failure alert, SYSLOG server for diagnosis and troubleshooting, Event Log

SYSTEM ADMINISTRATION

  • Web-based management UI, customizable login and logout portal page
  • SSH remote management, Remote firmware upgrade, SNMP v1/v2c
  • Console management, NTP time synchronization
  • Backup and restore the system configuration

ACCOUNTING AND BILLING

  • Provide billing plans for On-demand accounts
  • Various on-demand account types: Usage, Duration, and Cut-off
  • Session expiration control for On-demand accounts by time
  • Detailed per-user traffic history based on time for both local and On-demand accounts
  • Traffic history report in an automatic email to administrator
  • Support credit card payment via external payment gateway (PayPal)
  • RADIUS accounting; RADIUS VSA for volume-based quota of an external RADIUS server
  • On-demand account batch creation
  • Send automatic e-mail to report User Log, on-demand User Log, and Monitor IP status respectively

WIRELESS RADIO SPECIFICATIONS

  • WiFi standard: IEEE 802.11n/b/g in 2.4GHz frequency band
  • Modulation: OFDM, DSSS, CCK
  • Wireless Interface: 1 x 802.11 n/b/g (300/11/54 Mbps)
  • 2 x 5dBi(US)/2dBi(EU) detachable (SMA Connector) field-replaceable Antenna
  • RF output power: 100mW EIRP
  • Number of multiple SSIDs: 2; number of WDS links: 2

HARDWARE SPECIFICATIONS

  • Metal case compliant with IP50 Standard
  • WAN Port: 1 × 10/100 Base-T, PoE compliant with IEEE 802.3af
  • LAN Port: 2 × 10/100 Base-T
  • Console Port: 1 x DB9
  • USB Port: 1
  • LED Indicators: 1 × Power, 1 × WAN, 2 × LAN, 1 × WLAN

PHYSICAL AND POWER

  • Power Adapter 12V, 1.5A / 100~240 VAC, 50/60 Hz
  • Form factor: Wall Mountable
  • Dimensions (W x D x H): 204 mm x 134 mm x 35 mm
  • Weight: 0.61 kg

ENVIRONMENT

  • Operation Temperature: -30 ~ 70 °C
  • Operation Humidity: 10% ~ 80% (Non-condensing)
  • Storage Temperature: -40 ~ 85 °C
  • Storage Humidity: 5% ~ 90% (Non-condensing)

REGULATORY COMPLIANCE

  • C-tick, RoHS compliant



Specifications are subject to change without notice
