WiFi Data and VoIP Gateway

As the communications hub of your home or office, the feature packed WiFi Data and Voice Gateway will connect you to ADSL today and fibre when available to support your social, communication, gaming and entertainment activities well into the future. Share a powerful 300Mbps WiFi network between multiple devices, and connect up to 4 wired devices to superfast broadband via the LAN ports. Make low cost VoIP phone calls using a portable DECT handset and meet your printing and file storage needs using the 2 USB host ports. The future-proof Gateway supports next generation IPv6 addressing and cuts down your energy bill with green features such as time of day LED dimming, WiFi power-save features and sleep power-down functions.
nf1ADV
nf1adv

ADSL2+ today.

The in-built ADSL modem lets you connect to the Internet using your current ADSL2+ connection so you can take immediate advantage of shared wired and wireless access to Internet, VoIP phone, USB printer and hard drive networking.

Fibre tomorrow.

Ready yourself for the shift to fibre services using the Gigabit WAN port. Be prepared for the change with a Gateway designed to optimise the performance and capacity of your super high-speed fibre connection.

NF1ADV
NF1ADV

Premium phone connectivity.

As a cost-effective alternative to a landline phone connection, low-cost overseas and local calls can be made using a VoIP service via the 2 built-in FXS ports; and with an in-built DECT base station for calls using a portable DECT handset, your costly phone line will not be missed.

Print and store.

Ideal for the home office, the Gateway supports your printing and file storage needs with shared access to the media or files stored on a USB hard drive and a connected printer.
NF1ADV

Technical Specifications

PACKAGE INCLUDES

  • NetComm WiFi Data and VoIP Gateway
  • Power Adapter
  • Printed Quick Start Guide
  • 1 x Ethernet Cable (RJ-45)
  • 1 x Phone Cable (RJ-11)
  • Wireless Security Card
  • Warranty Card

ENVIRONMENTAL AND PHYSICAL

  • Operating temperature: 0-40C, Humidity: 10%-90% non-condensing
  • DC Input Voltage 12V/2A

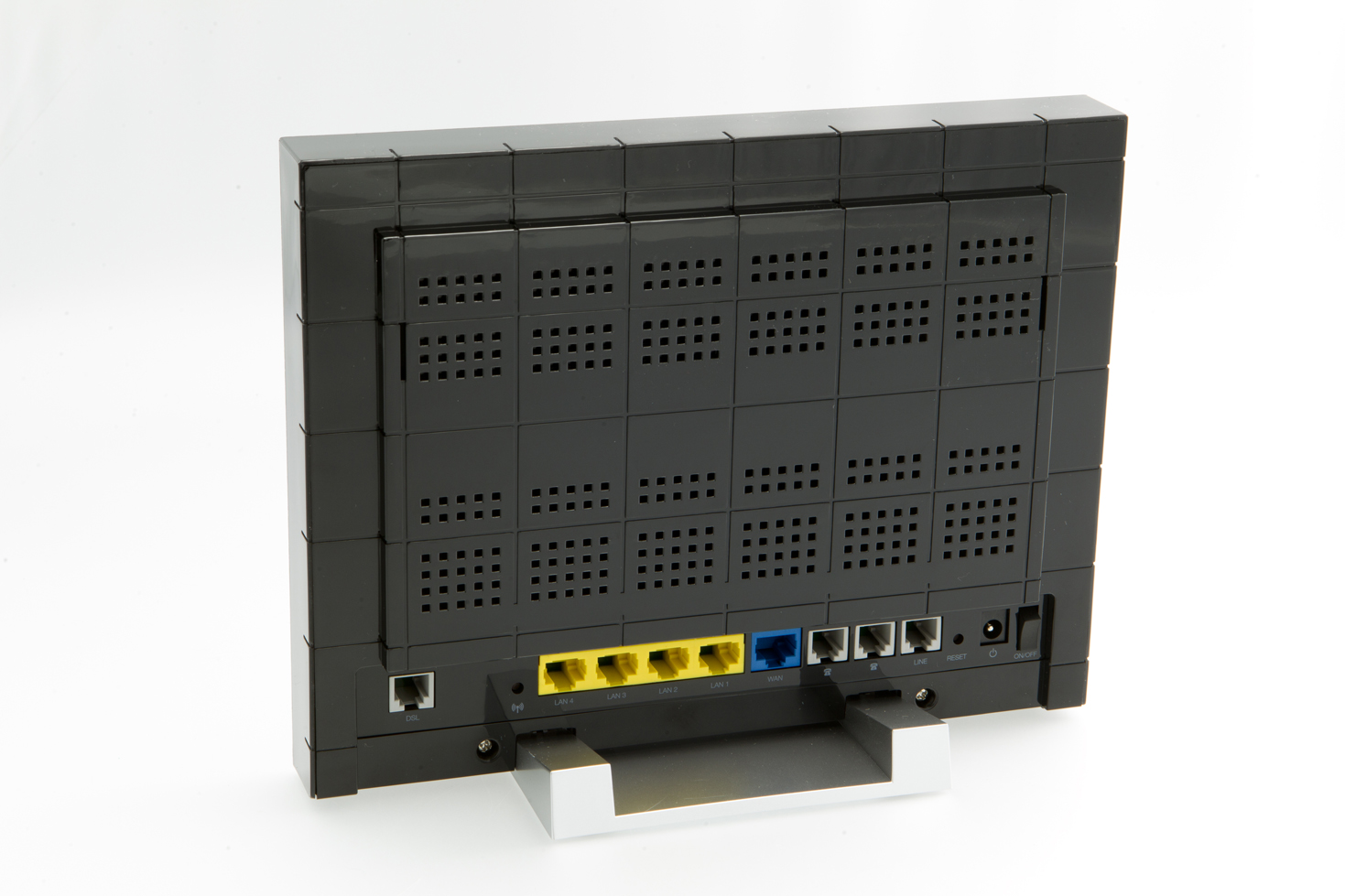

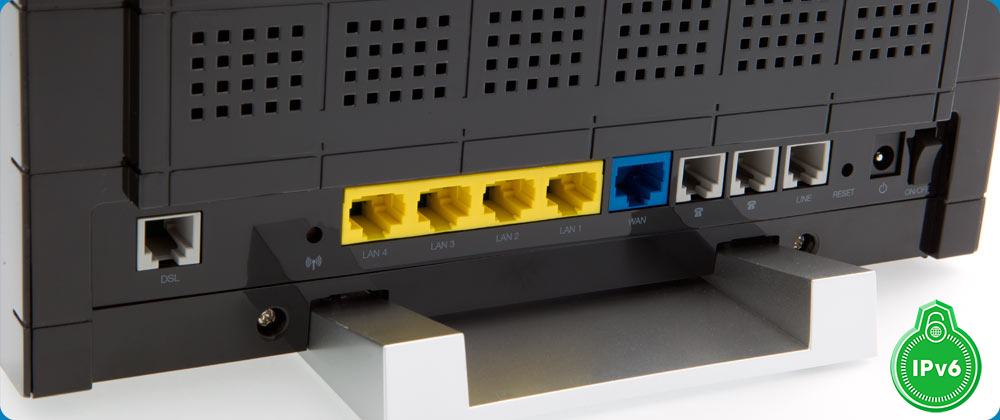

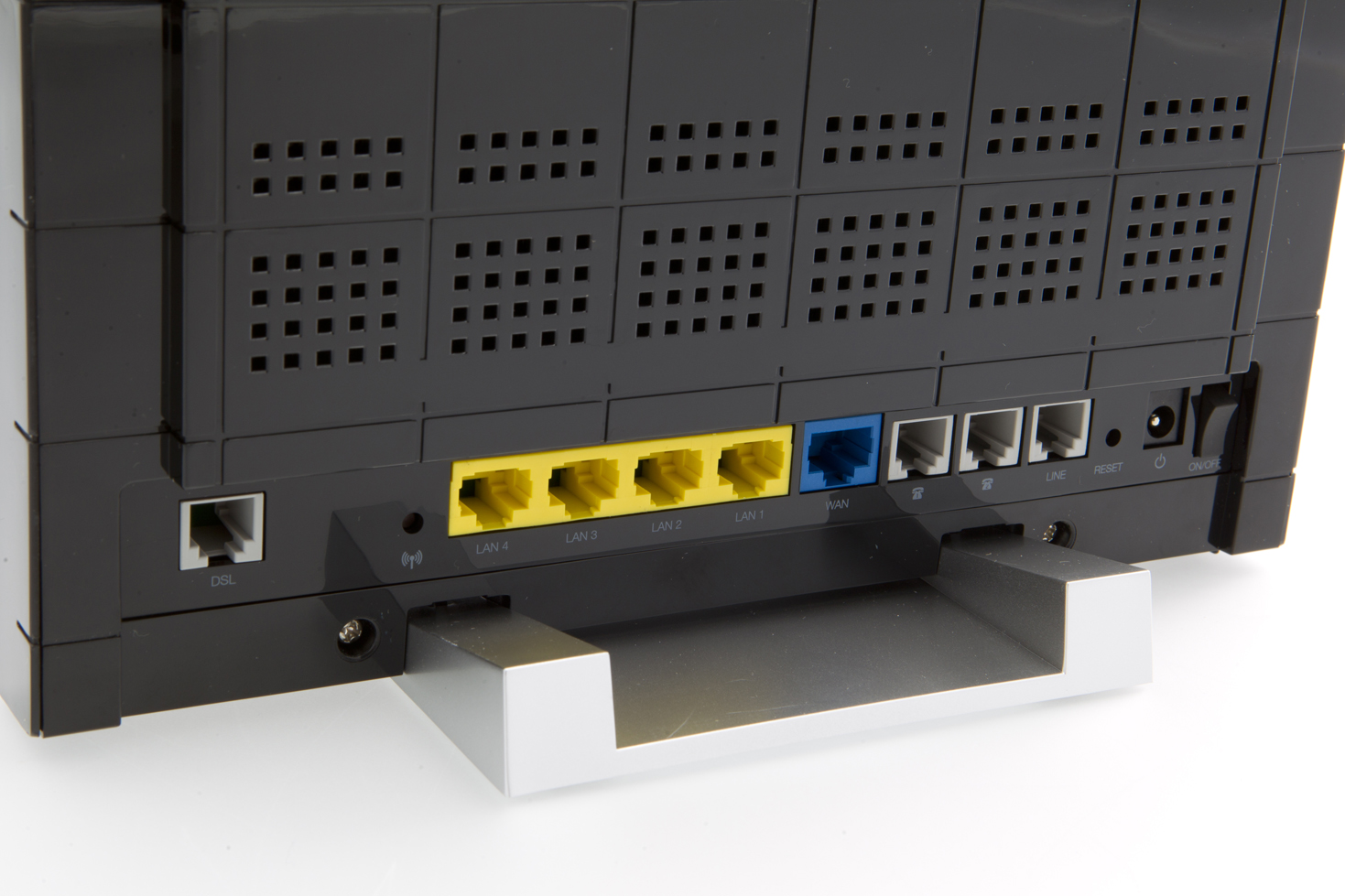

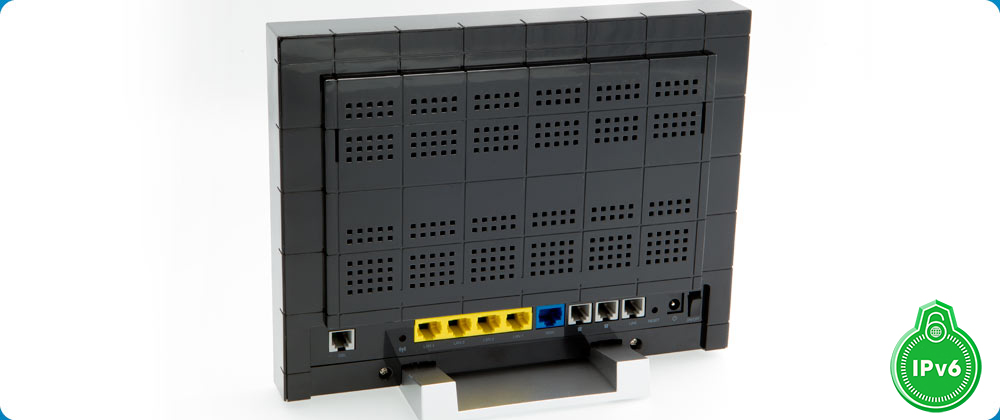

DEVICE INTERFACE

  • 4 x 10/100Mbps LAN port
  • 1 x 10/100/1000Mbps WAN port
  • 1 x FXO port
  • 2 x FXS port

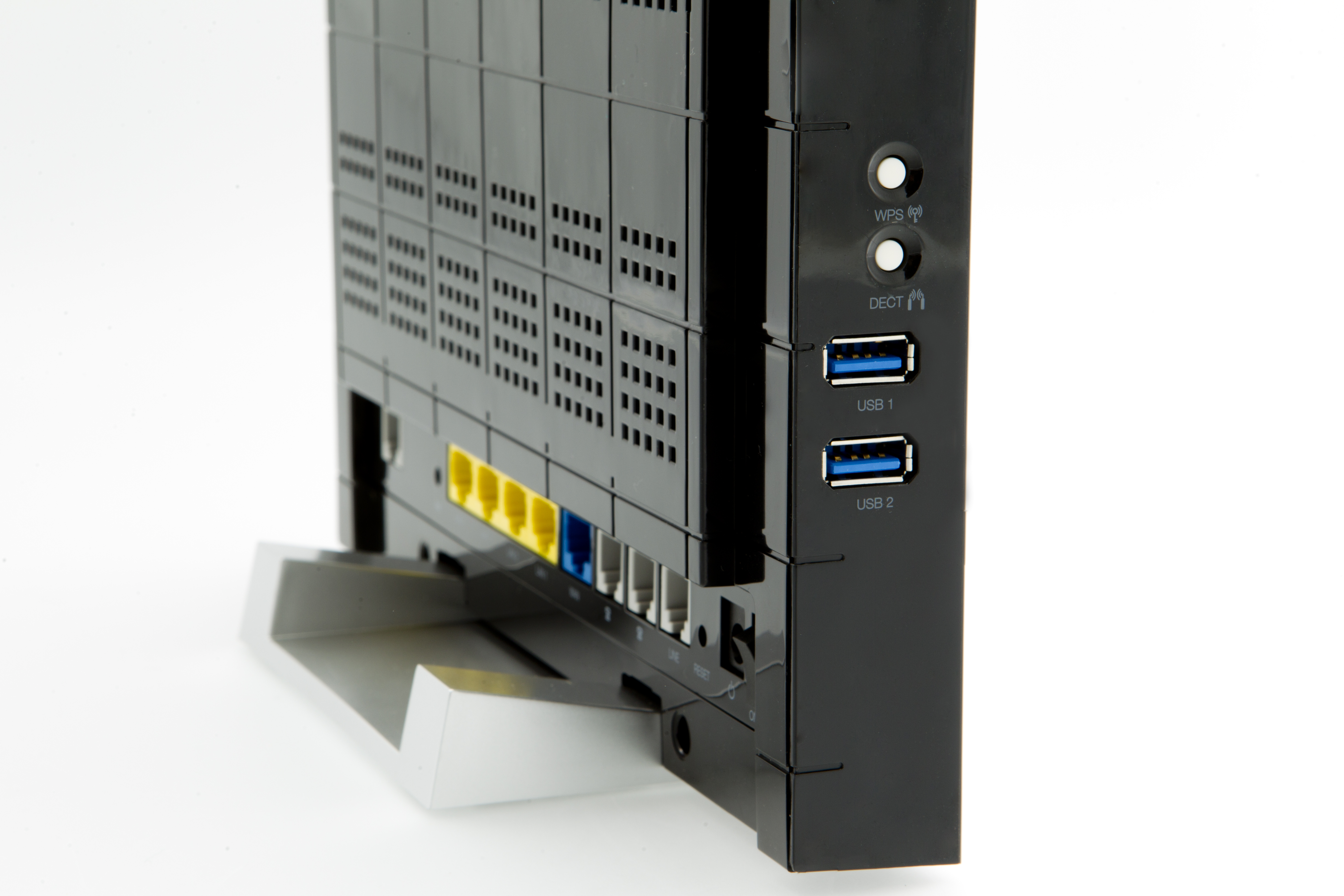

  • 2 x USB 2.0 port – for USB storage and printer
  • 1 x DECT module
  • 1 x WPS button
  • 1 x WiFi on/off button
  • 1 x Reset button
  • 2 x 2 internal WiFi antenna
  • 2 x internal DECT antenna
  • LED – Power/ LAN1~4/ WAN/ WLAN/ WPS/ Phone1/Phone2/ LINE/ DSL/ Internet/ DECT/ Page Register
  • Power Jack

ADSL2+

  • ITU-T G.992.5,
  • ITU-T G.992.3,
  • ITU-T G.992.1,
  • ITU-T G.992.2,
  • ANSI T1.413 Issue 2
  • G.992.3 (ADSL2)
  • G.992.5 (ADSL2+) AnnexM

ETHERNET WAN

  • PPPoE, DHCP client, Static IP, PPTP, L2TP
  • Dual stack IPv6

WIRELESS

  • IEEE 802.11n. Backwards compatible with IEEE 802.11b/g
  • SSID broadcast or in stealth mode
  • WMM
  • WEP/WPA/WPA-PSK/WPA2/WPA2-PSK
  • WPS button (WiFi Protected Setup)

VOIP

PROTOCOL
  • SIP (FRC3261)
VOICE COMPRESSION
  • G.711u , G.711a, G.729a
CALL FUNCTION
  • On/Off Hook caller ID (ETSI based)
  • Lifeline
  • SDP (FRC2327)
  • Echo cancellation (G.168)
  • Silence suppression

DECT

  • CAT-iQ 2.0 base station
  • Easy pairing registration
  • Register up to 4 DECT handsets

QOS

  • L3 Policy –based QoS
  • IPQoS
  • DSCP/TOS

SECURITY

  • Authentication protocols (PAP/CHAP)
  • VPN PPTP/L2TP/IPSec Pass-through
  • Stateful packet inspection
  • Packet filtering
  • Denial of service protection
  • Traffic conditioning
  • WFQ based bandwidth

ROUTING

  • IPv6 Static route
  • Dynamic Route (RIP v1/v2)
  • NAT/PAT,
  • DHCP Client/Server/Relay
  • DNS
  • ARP
  • IGMP Proxy

ADMINISTRATION

  • SNMP
  • UPnP
  • TR-069/ TR-098/ TR-111
  • Syslog
  • Web-based UI
  • Remote Login
  • Backup/Restore Settings

COMPLIANCE

  • A-Tick
Specifications are subject to change without notice
