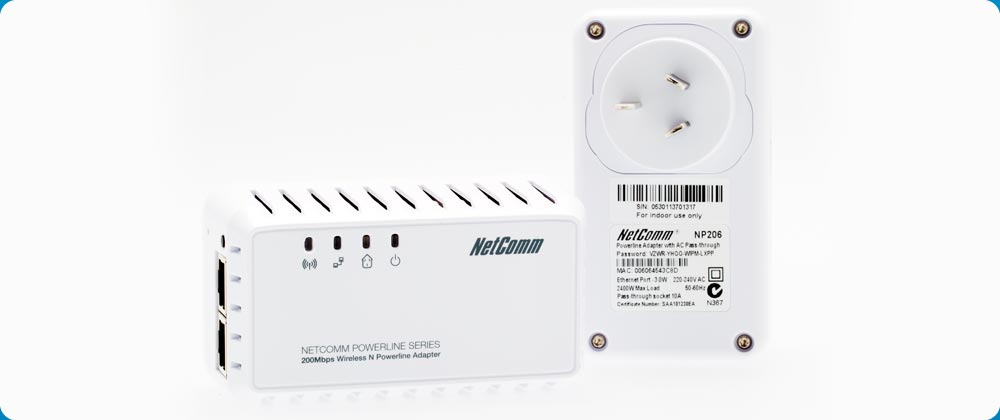

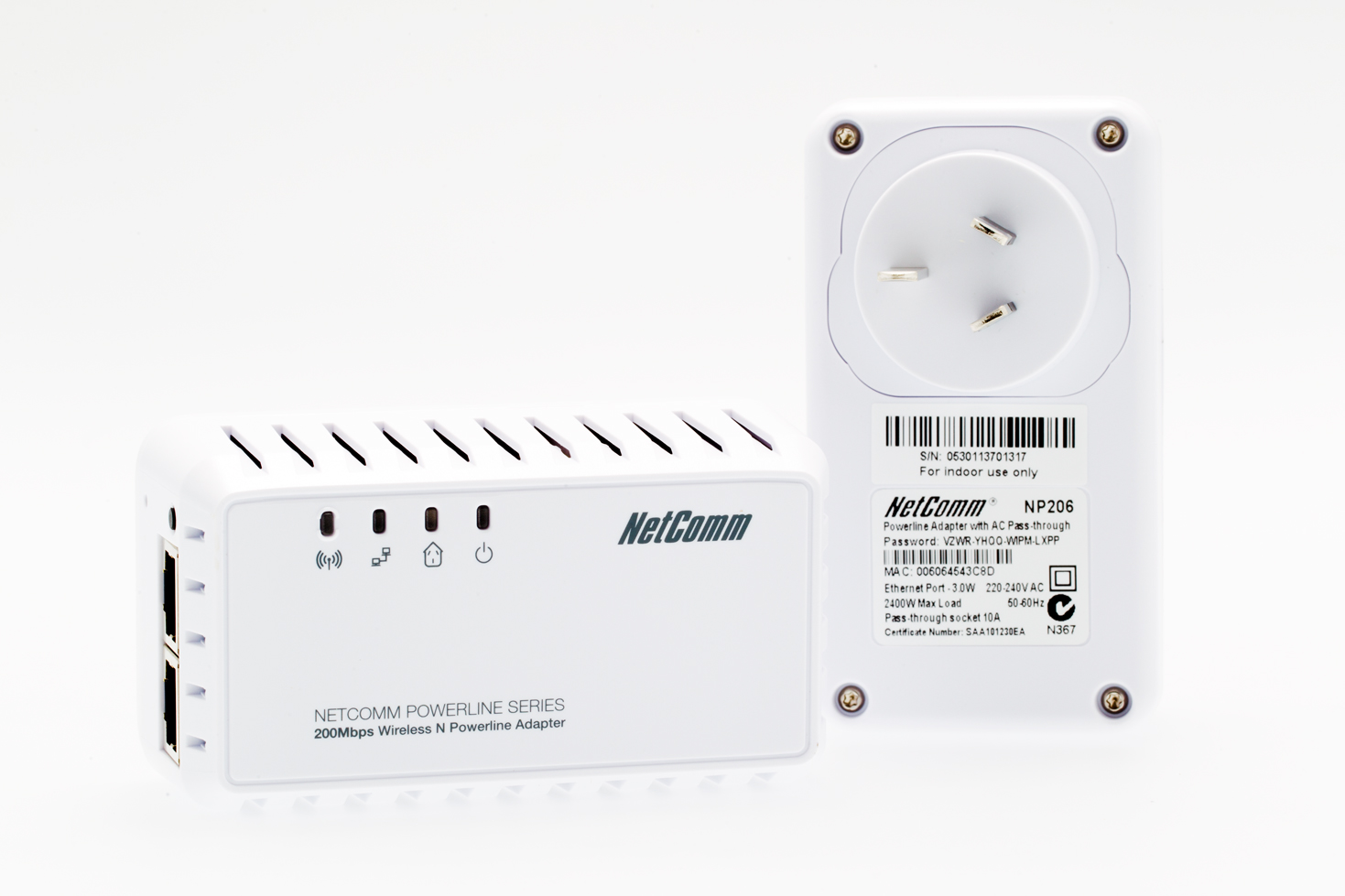

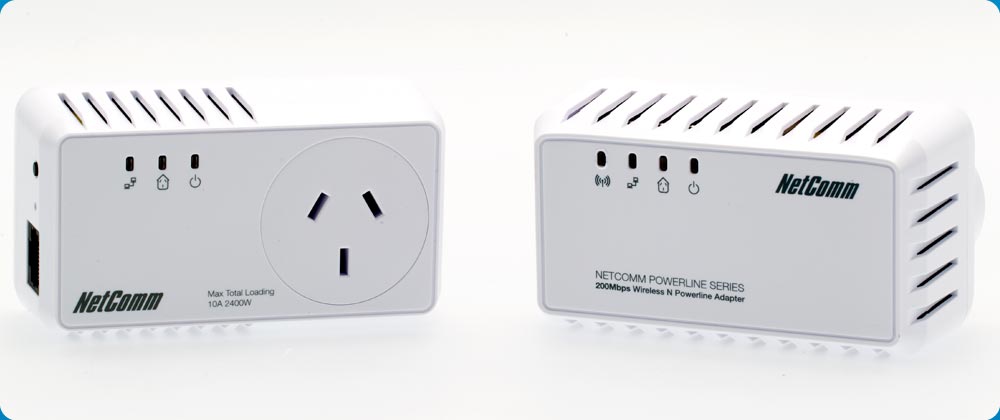

Wireless Powerline Kit

Broadcast a powerful wireless Internet signal to the far corners of your home using your existing network of Powerlines. The Wireless Powerline Kit automatically transfers the Internet between 2 pre-paired adapters via your electrical network. Simply plug the adapters into available power points to create a high-speed 300Mbps wireless hotspot for reliable multi-device connectivity in any room.
NP206
NP206

High-speed Powerline.

Transform your Powerline network into a superfast conduit for online data. The Wireless Powerline Kit transmits a strong 200Mbps Internet signal over your existing electrical network for a fast and reliable connection throughout the home.

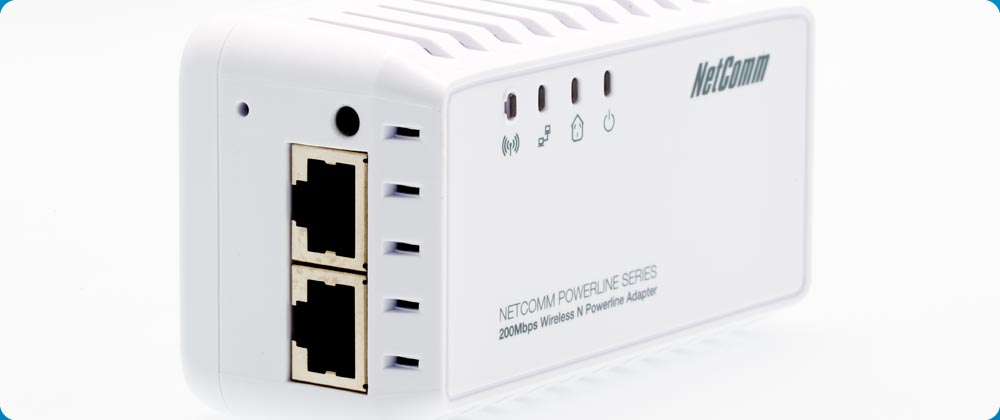

Powerful WiFi.

One of the adapters features a Wireless N access point so you can create or extend a WiFi network with speeds reaching 300Mbps. Simply plug the Wireless N adapter into any power socket to achieve an instant wireless hotspot for the simultaneous connection of multiple devices such as laptops, tablet computers, gaming consoles and smart phones.
NP206
NP206

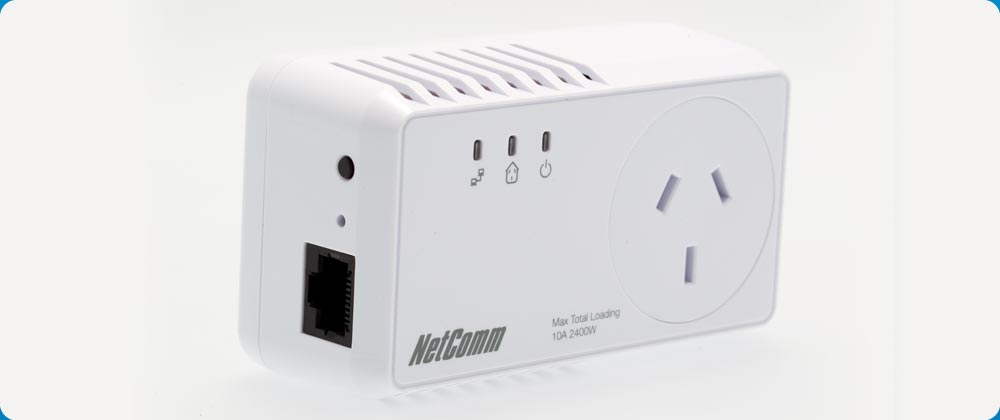

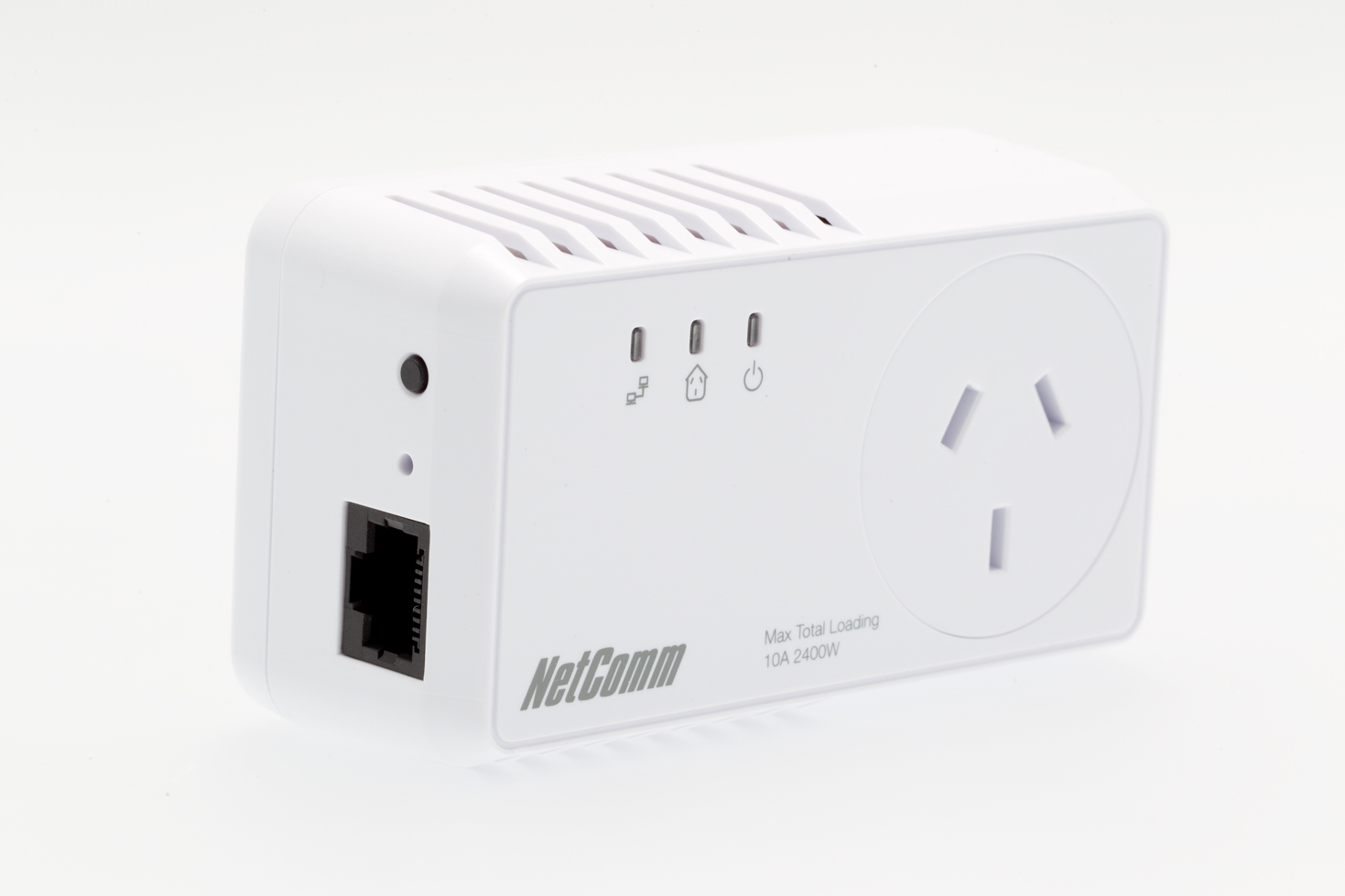

Sharing the point.

An AC pass-through socket is built into the other adapter so you can share the same power point with other electrical devices to lessen the need for messy double adapters or power boards. The AC-pass through socket also features noise filtering to prevent signal disruption by other electrical devices.

Works out of the box.

The plug and play adapters are pre-configured to work without setup requirements. Simply connect them to power and enjoy your music, movies and gaming in any room of the house.
NP206

Technical Specifications

Main Chipset

  • Powerline: Intellon INT6400
  • Wireless: Ralink RT3052

Standards

  • Powerline: HomePlug AV
  • Ethernet: IEEE 802.3 10/100 Auto MDI/MDIX
  • Wireless: IEEE 802.11b/g/n
  • Compliant to EuP Lot 6 (Power saving standard)

Modulation Support

  • Powerline: OFDM 1024/256/64/16/8 QAM
  • QPSK
  • BPSK
  • ROBO

Data Transfer Rate

  • Up to 200Mbps over Powerline
  • Up to 300Mbps over Wireless

Range

  • Up to 200m over Powerline

Security

  • 128-bit AES Encryption (enabled with Simple Connect button)

Powerline Filtering

  • Filtering at frequency band 2MHz to 30MHz
  • Insertion loss > 30dB

External Connectors

Powerline Adapter with AC Pass-through
  • 1 x Ethernet LAN port
  • 1 x Reset button
  • 1 x Simple Connect push button
  • 1 x Filtered AC pass-through
Powerline Adapter with Wireless N
  • 2 x Ethernet LAN ports
  • 1 x Reset button
  • 1 x push button for WPS and Simple Connect

Measurements

Powerline Adapter with AC Pass-through
  • 100mm x 55mm x 47mm
Powerline Adapter with Wireless N
  • 105mm x 58mm x 42m



Memory

  • 8Mb SDRAM

Power Consumption

  • Normal: 3.4-7.0 Watts
  • Standby: 0.48-5 Watts

Power Supply

  • AC 220 ~ 240V, 50 ~ 60Hz

Environmental Temperature

  • Operating: 0°C to 40°C
  • Non-Operating: -25°C to 70°C

Humidity

  • Operating: 30% to 80% relative humidity (non-condensing)
  • Non-Operating: 30% to 95% relative humidity (non-condensing)

Operating Systems (for manual configuration only)

  • Windows 7/Vista (32-64 bit)/2000/ME/XP/98/98SE

Regulatory Approval

  • SSA101230EA & SSA110513
  • C-Tick, CE
Specifications are subject to change without notice
