200Mbps Powerline Adapters with AC Pass-through

Transfer the Internet to any room in your house using your existing network of powerlines. Simply plug the 2 pre-configured adapters into a free power point to transmit a powerful 200Mbps broadband Internet signal from your modem to a device of your choice.

The compact adapters are easily concealed behind furniture and feature AC Pass-through to keep your power socket free for other appliances. And for optimal performance, the in-built filter will counteract conflicting signals from other electrical devices.

NP204
NP204

Powerline performance.

Make the most of your existing powerline network by using it to create a reliable Internet connection point in any area of your home. Liberate your personal computer, TV, gaming console, Blu-ray player and other devices from their traditional boundaries by connecting the 200Mbps Powerline Adapters to a power point to extend a powerful connection to any room without additional wires and cabling.

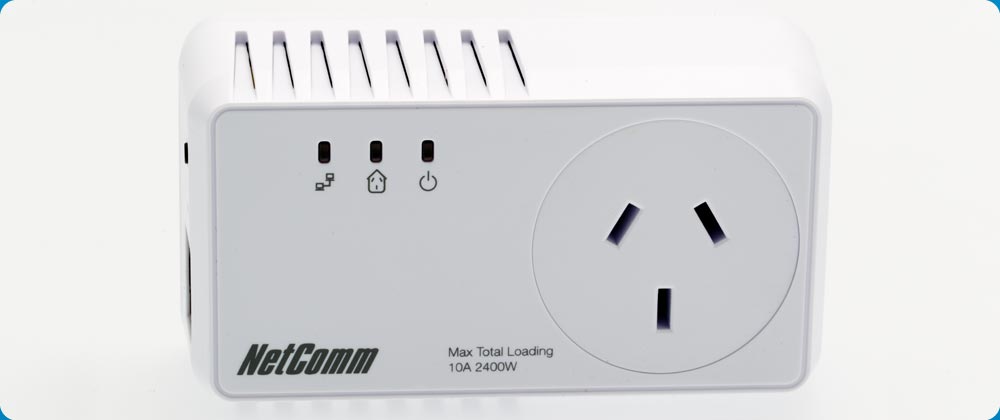

Share the power.

The AC pass-through feature ensures that your power point remains free for other uses. Everyday electrical appliances such as white goods, clock radios and lamps can share the same socket as the powerline adapters to reduce the need for messy power boards and double adapters. .
NP204
NP204

Plug and play.

With no setup required, establishing a strong Internet signal in any part of your home is as simple as plugging the 200Mbps Powerline Adapters with AC Pass-through into a free power point. Send a strong broadband Internet signal to the furthest corners of your home or office without software and configuration hassles.

A hidden gem.

As well as creating a powerful Internet connection point without the need for wires, cables, power boards or double adapters, the compact 200Mbps Powerline Adapters with AC Pass-through are designed to fit neatly behind furniture and can be concealed within the home entertainment environment to eradicate clutter.
NP204

Technical Specifications

Main Chipset

  • Intellon INT6400

Standards

  • Powerline: HomePlug AV
  • Ethernet: IEEE802.3 10/100 Auto MDI/MDIX
  • Compliant to EuP Lot 6 (Power saving standard)

Modulation Support

  • Powerline: OFDM 1024/256/64/16/8 QAM
  • QPSK
  • BPSK
  • ROBO

Data Transfer Rate

  • Up to 200Mbps over Powerline

Range

  • Up to 200m over Powerline

Security

  • 128-bit AES Encryption (enabled with Simple Connect button)

Powerline Filtering

  • Filtering at frequency band 2MHz to 30MHz
  • Insertion loss > 30dB

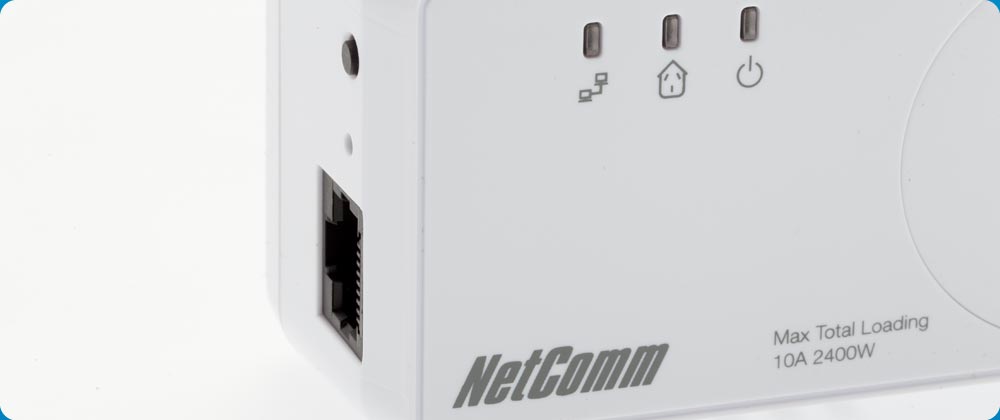

LED Indicators

  • 1 x Power LED
  • 1 x Powerline Link / ACT Status LED
  • 1 x Ethernet Link / ACT Status LED

External Connectors

  • 1 x Ethernet LAN port
  • 1 x Reset button
  • 1 x Simple Connect push button
  • 1 x Filtered AC pass-through

Measurements

  • 100mm x 55mm x 47mm
  • 160g / adapter

Memory

  • 8Mb SDRAM

Power Consumption

  • Normal: 3.4 Watts
  • Standby: 0.48 Watts

Power Supply

  • AC 220 ~ 240V, 50 ~ 60Hz

Environmental Temperature

  • Operating: 0°C to 40°C
  • Non-Operating: -25°C to 70°C

Humidity

  • Operating: 30% to 80% relative humidity (non-condensing)
  • Non-Operating: 30% to 95% relative humidity (non-condensing)

Operating Systems (for manual configuration only)

  • Windows 7/Vista (32-64 bit)/2000/ME/XP/98/98SE

Regulatory Approval

  • SSA101230EA
  • C-Tick, CE
Specifications are subject to change without notice
