Home Entertainment Connection Kit

Enjoy a rich online entertainment experience in any area of your home by extending or creating an Ethernet network using your existing power points. The Home Entertainment Connection Kit connects up to 4 devices to the Internet via your Powerline network with plug and play simplicity. Just connect the single port adapter to your broadband modem/router to achieve high-speed 200Mbps data rates  over a range of up to 300 meters (point to point) using your Powerline network and benefit from consistent high-quality audio and HD streaming in any room without the need for additional cabling or connection points.
NP203
NP203

From port to port.

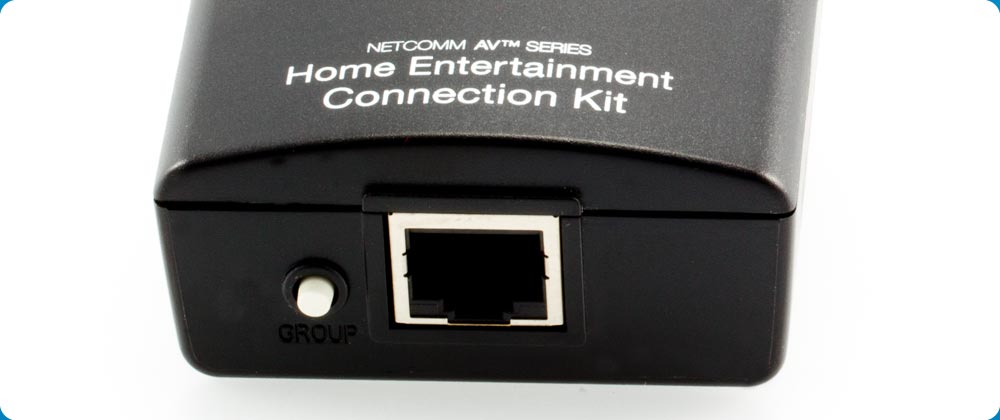

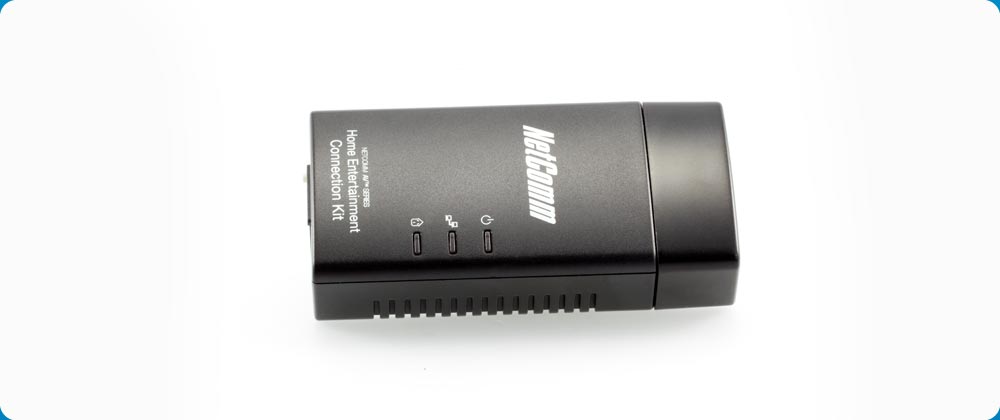

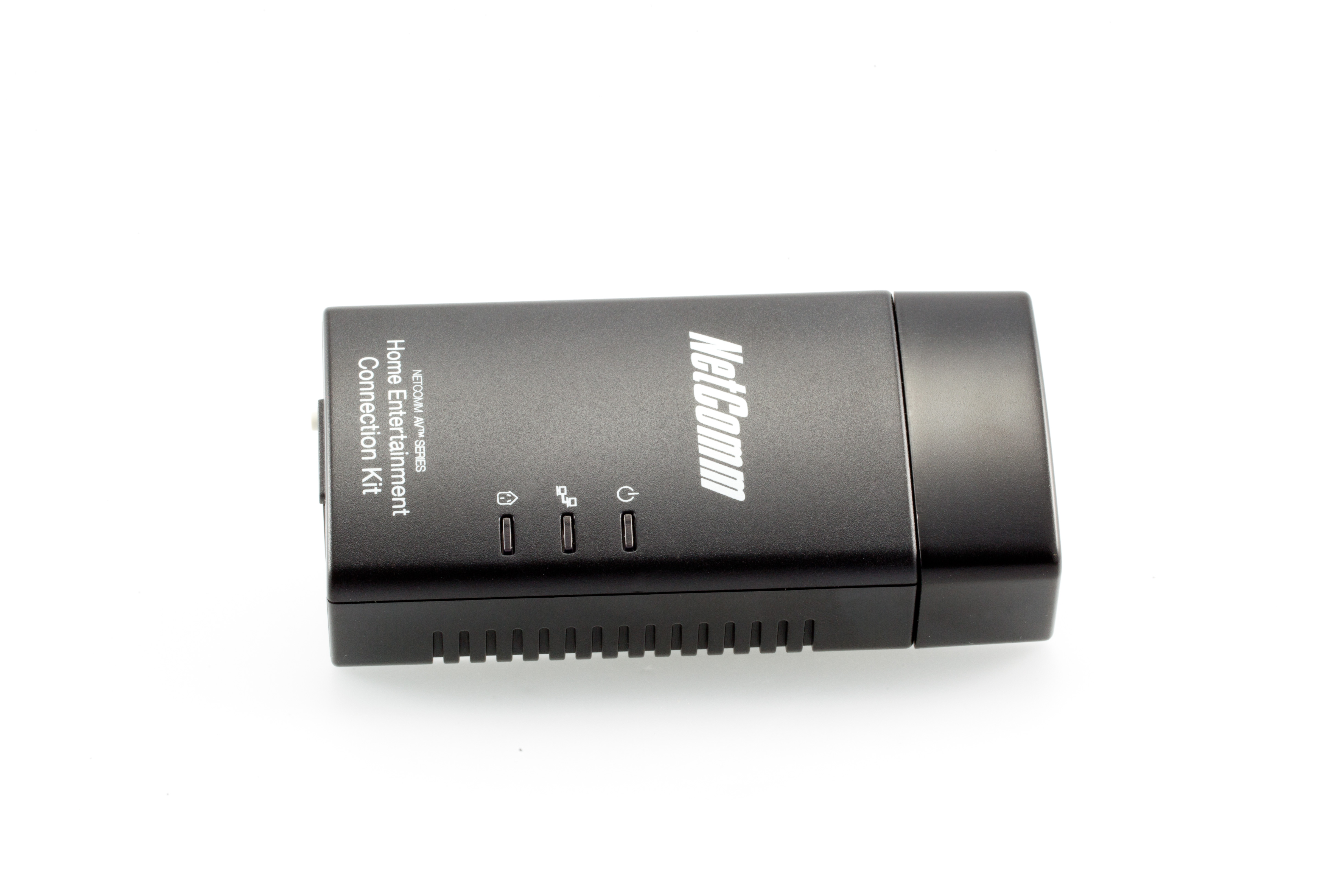

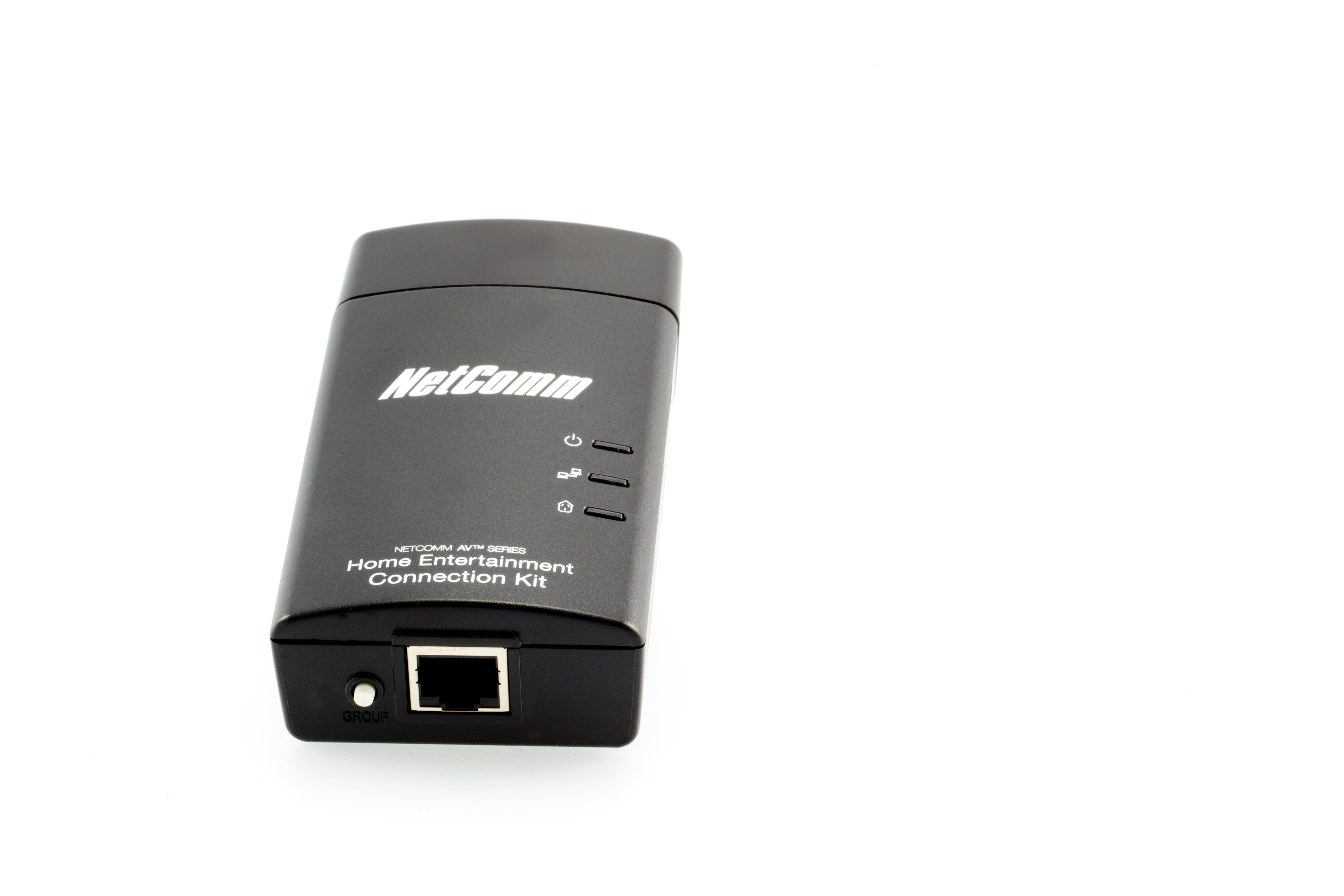

The 4-port and single port Home Entertainment Connection Kit bridges the gap between your modem and up to four Internet-enabled devices with no set-up required. Simply connect the single port adapter to your broadband modem/router and plug the 4-port adapter into a power point of your choice to create an instant online connection point for multiple entertainment devices.

Multi-device connectivity.

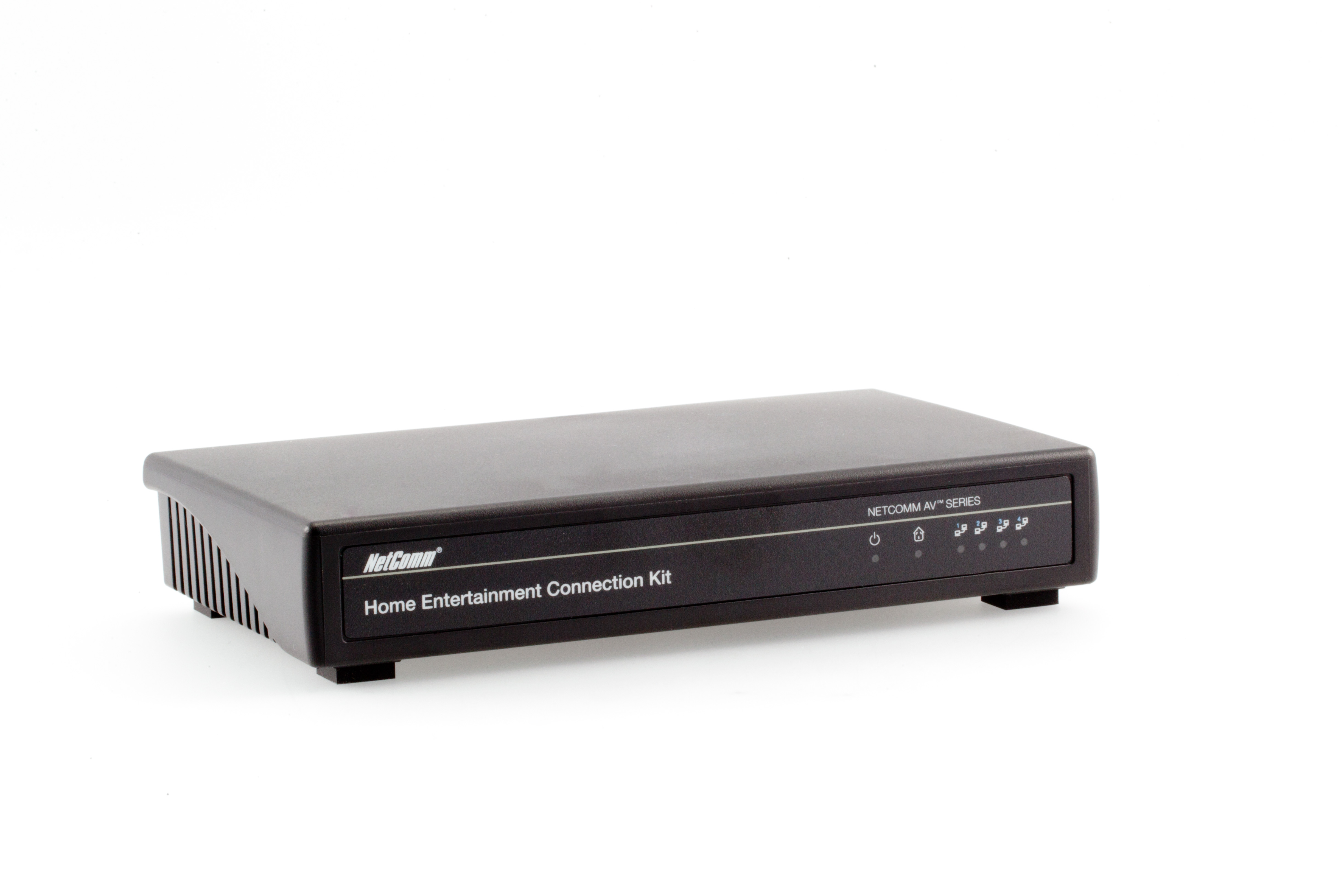

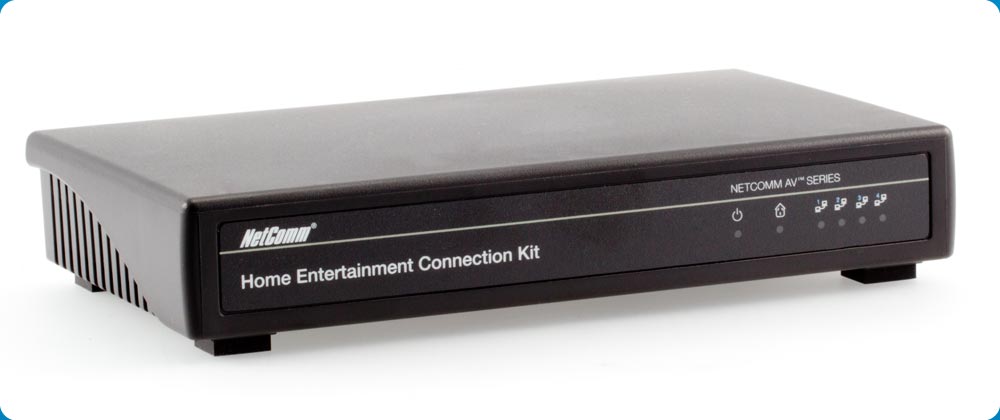

Create an Internet connection for up to 4 home entertainment devices using the 4-port desktop Powerline adapter and maximise your broadband plan with the simultaneous connection of your Internet enabled TV, Blu-ray player, gaming console, personal video recorder, digital set-top box or Internet radio on a single account.
NP203
NP203

Share the power.

Both devices connect off the wall with a standard power cable so other electrical devices can share the same double power point.

Plug and play.

Establish a simple, reliable and secure whole house connection straight out of the box regardless of the size or layout of your home.  The Kit is easily installed and requires no technical knowledge so you can get straight to enjoying your movies, music and gaming.
NP203

Technical Specifications

MAIN CHIPSET

  • Intellon INT6400

COMPUTER INTERFACE

  • IEEE802.3; IEEE802.3u

STANDARDS

  • HomePlug AV

NETWORK INTERFACE

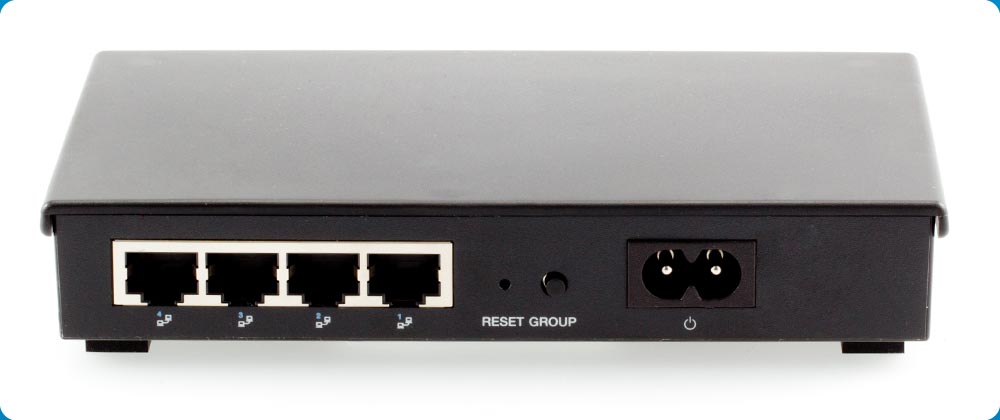

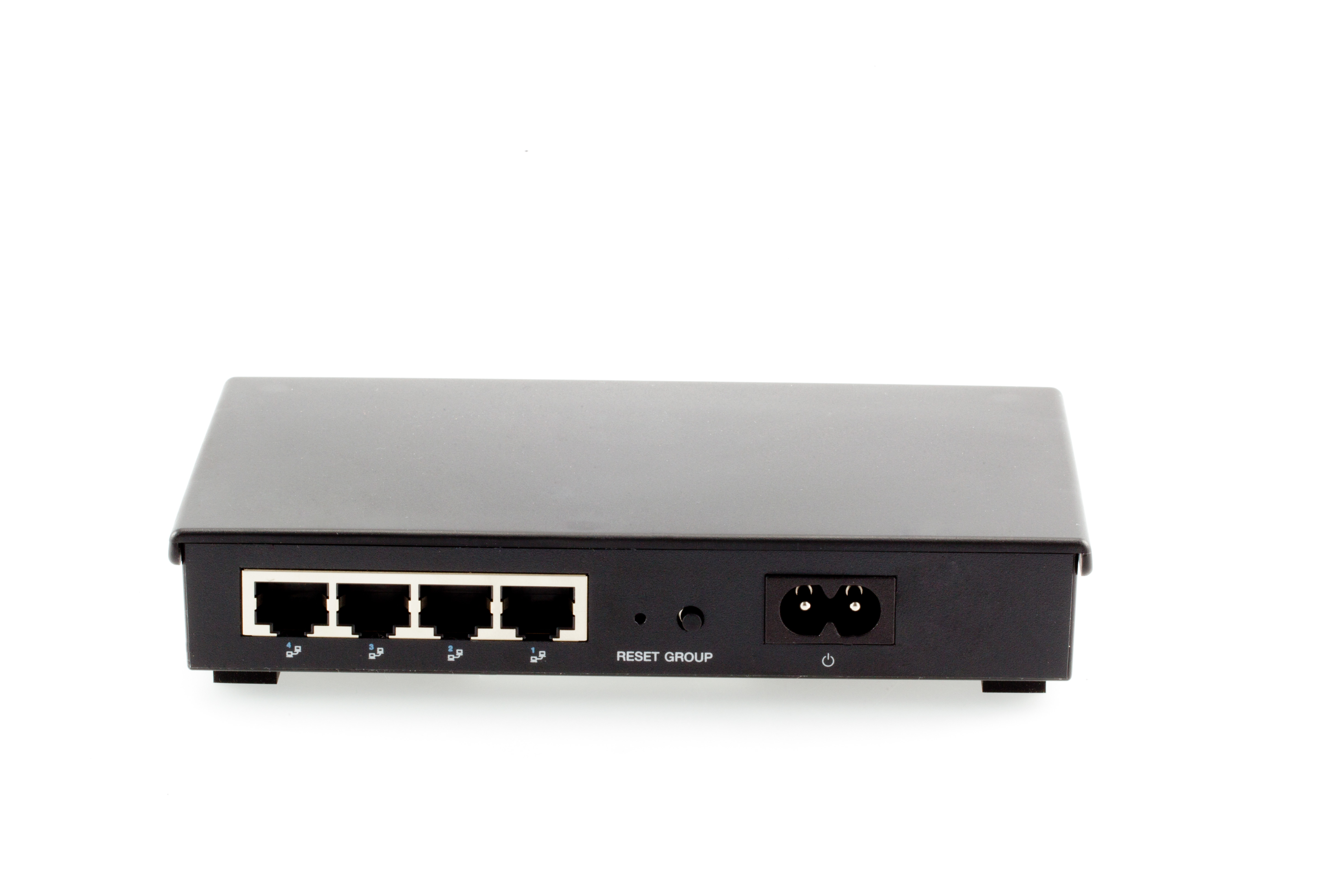

  • Four RJ-45 (10/100Base-T Ethernet)/One RJ-45 (10/100Base-T Ethernet)
  • One 200Mbps Power Line Port supporting co-existence with 14/85Mbps HomePlug

SECURITY

  • 128-bit AES Link Encryption with Key Management

DATA TRANSFER RATE

  • 200 Mbps over Powerline and 10/100Mbps over Ethernet

MODULATION SCHEMES

  • OFDM Symbol Modulation on Line synchronization 1024/256/64/16/8 - QAM, QPSK, BPSK, ROBO Carrier Modulation

FREQUENCY BAND

  • 2 ~ 28 Mhz

ADDITIONAL PROTOCOLS

  • Mix of TDMA and CSMA/CA channel access scheme; CO device generates a periodic beacon carrier for channel access scheme

OPERATION RANGE

  • Estimated range of 300m in wall power lines

CABLING

  • 100Base-T; Cat. 5 UTP Cable

OPERATING TEMPERATURE

  • 0°C to 40°C ambient temperature

STORAGE TEMPERATURE

  • -20°C to 70°C ambient temperature

HUMIDITY

  • 10 to 90% maximum (non-condensing)

POWER INPUT

  • 100 ~ 240V @ 50/60Hz Internal

POWER CONNECTOR

  • 6 ft AC power cord/Embedded AU Housing Plastic

SOFTWARE UTILITY

  • Device Detect/Diagnostic, NEK Password Setup for Local and Remote Device Windows 2000, ME, NT, XP, or Vista for Initial Setup

LED

  • Power; PL-Link/Act (with dual-color throughput function); ETH 1 thru 4 Link/Act

CERTIFICATIONS

  • C-Tick, CE
Specifications are subject to change without notice
