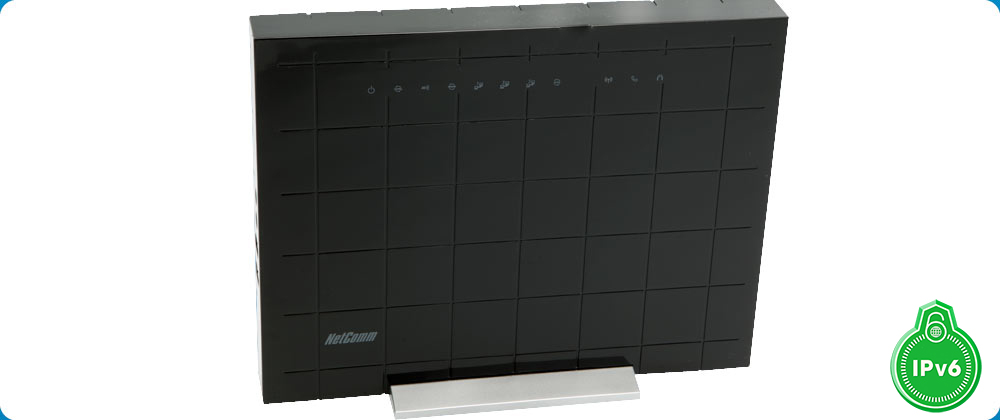

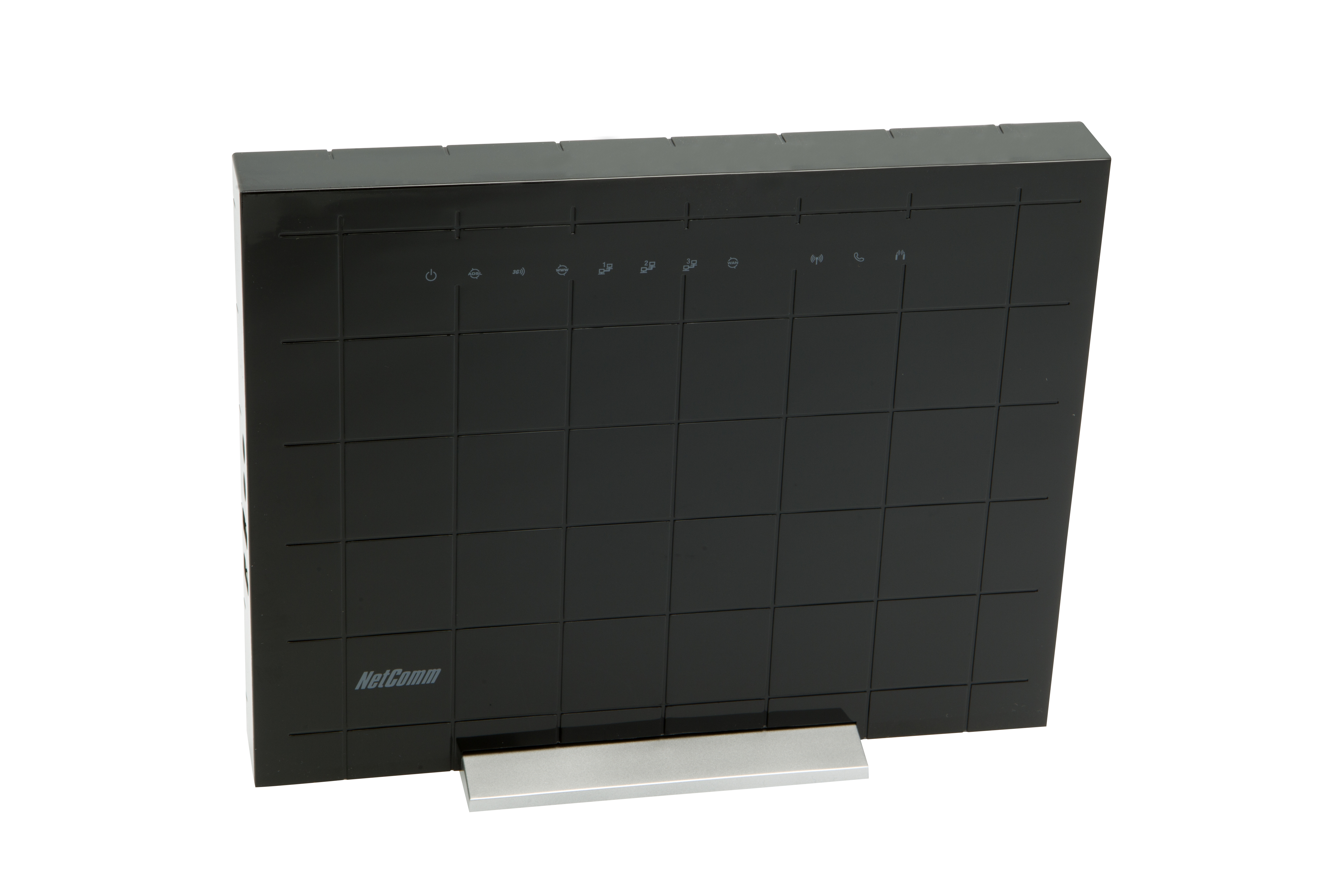

N900 Dual Band WiFi Gigabit Modem Router

Take advantage of what's on the horizon with the feature packed N900 Dual Band WiFi Gigabit Modem Router. Connect to high-speed broadband with your choice of an ADSL2+, fibre or 3G/4G USB connection and take wireless networking to a whole new level with frequency selectable super high-speed 900Mbps WiFi connectivity. The Gigabit Ethernet ports offer optimal wired device connectivity and the 2 USB 2.0 ports support the connection of a 3G/4G USB modem and external hard disk storage device.  With next generation IPv6 support and a host of energy saving features such as time of day LED dimming, WiFi power-save and sleep power-down functionality the WiFi Data and VoIP Gateway will act as the communications hub of your home or office well into the future.
NF3ADV
Nf3ADV

Powerful ADSL2+.

Create an instant ADSL2+ broadband Internet connection and enjoy your favourite social, communication, gaming and entertainment  activities right away. The N900 Dual Band WiFi Gigabit Modem Router supports the most popular broadband connection options of today while preparing you for what's around the corner.

Gigabit future.

Connect to a superfast fibre service via the Gigabit WAN port and ready yourself for a new world of network performance. The N900 Dual Band WiFi Gigabit Modem Router maximises fibre / NBN network speeds and capacity to dramatically enhance your online experience.
NF3ADV
NF3ADV

Portable VoIP.

Make inexpensive long distance calls using a VoIP service with the added benefit of an in-built DECT base station for calls using a portable DECT handset. The FXO port works to back up a landline connection and lets you replace your landline completely.

Shared USB.

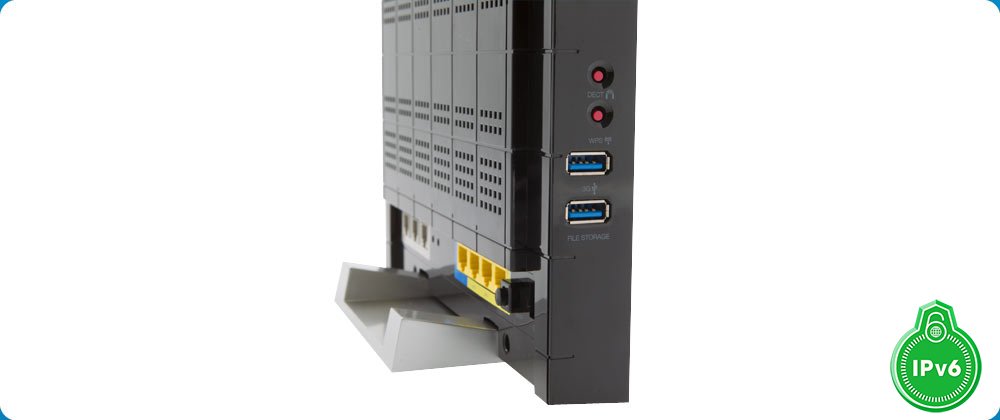

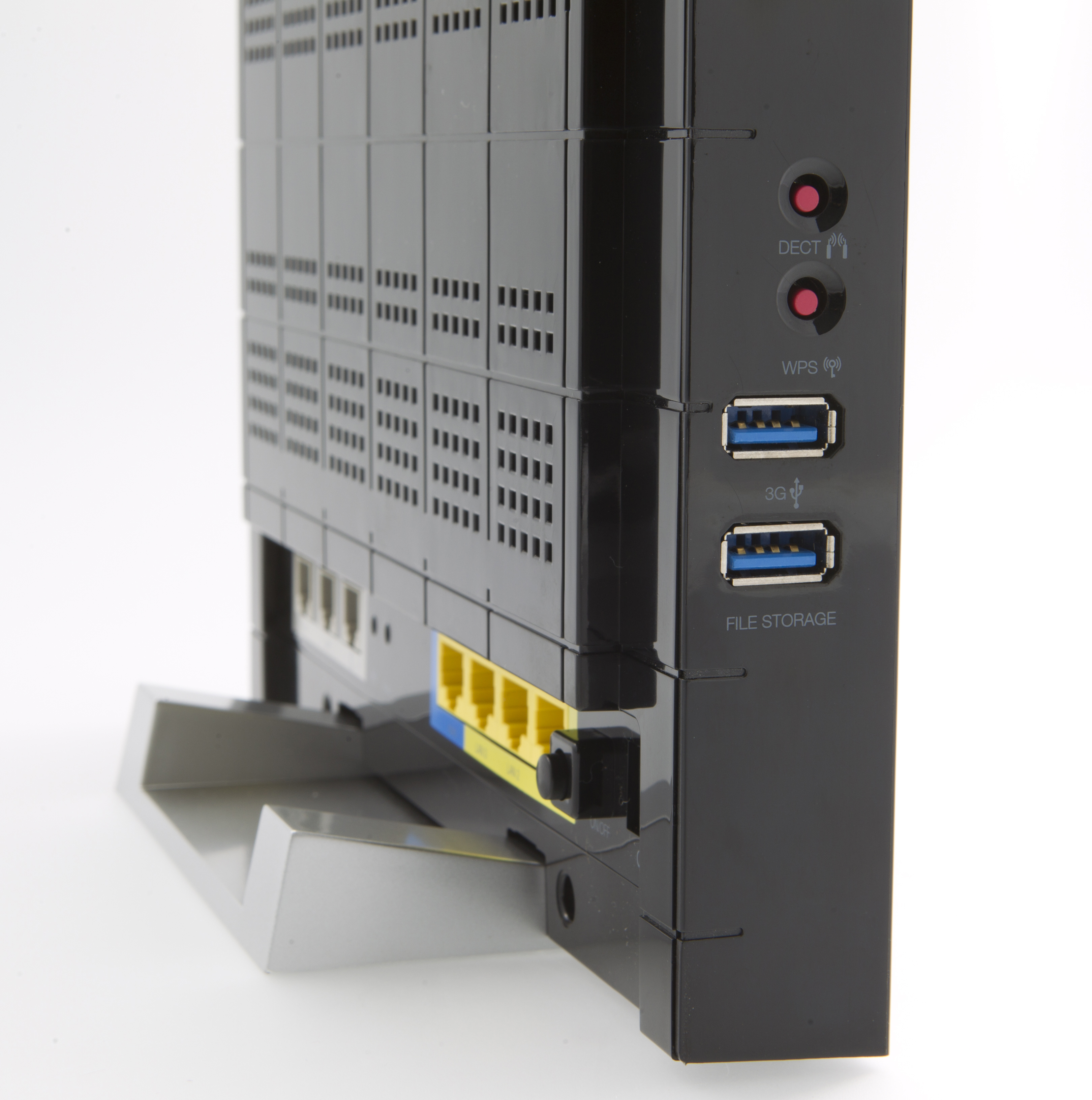

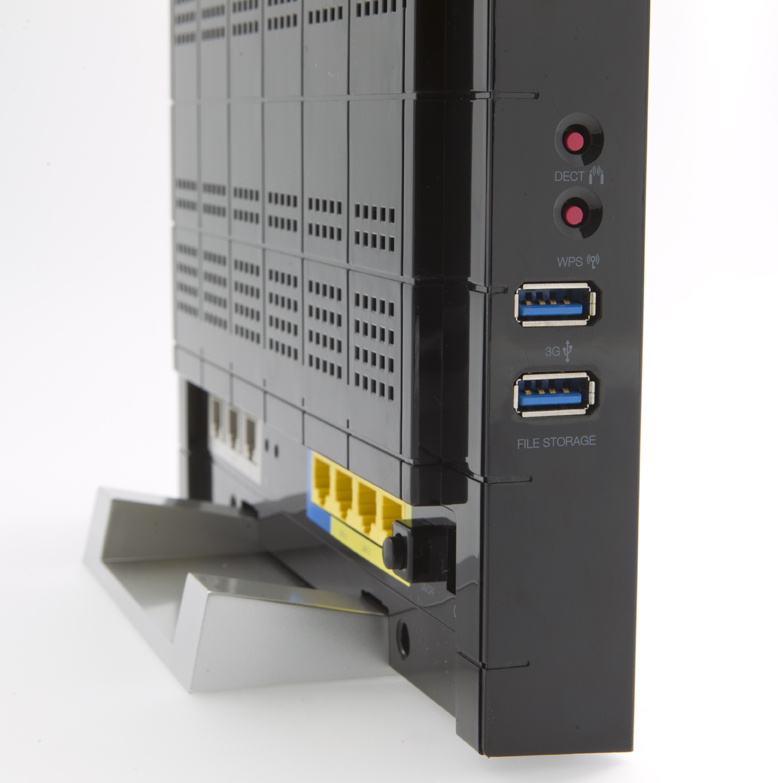

Take advantage of 3G/4G versatility using one of the 2 in-built USB ports to connect a 3G/4G USB modem. The USB ports also support shared access to password secure media and files stored on an external hard disk drive.
NF3ADV

Technical Specifications

PACKAGE INCLUDES

  • NetComm Wireless N900 Dual Band WiFi Gigabit Modem Router
  • Power Adapter
  • Printed Quick Start Guide
  • Ethernet Cable (RJ-45)
  • Phone Cable (RJ-11)
  • Wireless Security Card
  • Warranty Card

ENVIRONMENTAL AND PHYSICAL

  • Operating temperature: 0-40oC,
    Humidity: 10%-90% non-condensing
  • Storage temperature: -10-70oC,
    Humidity: 0%-95% non-condensing
  • DC Input Voltage 12V/3A

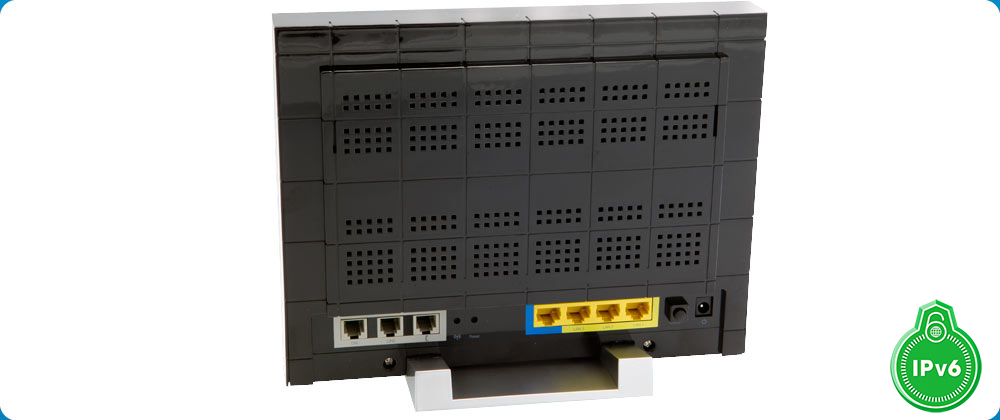

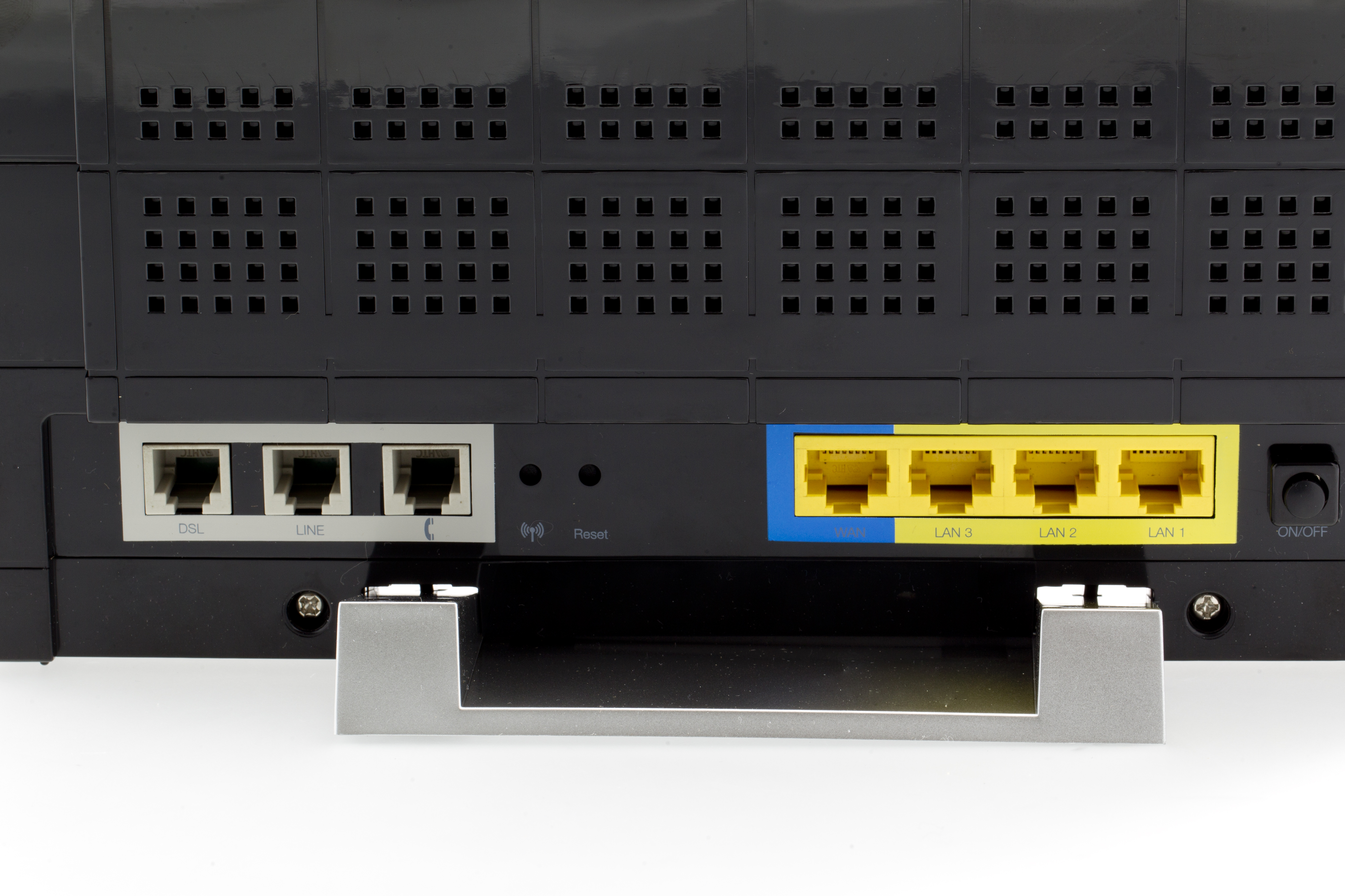

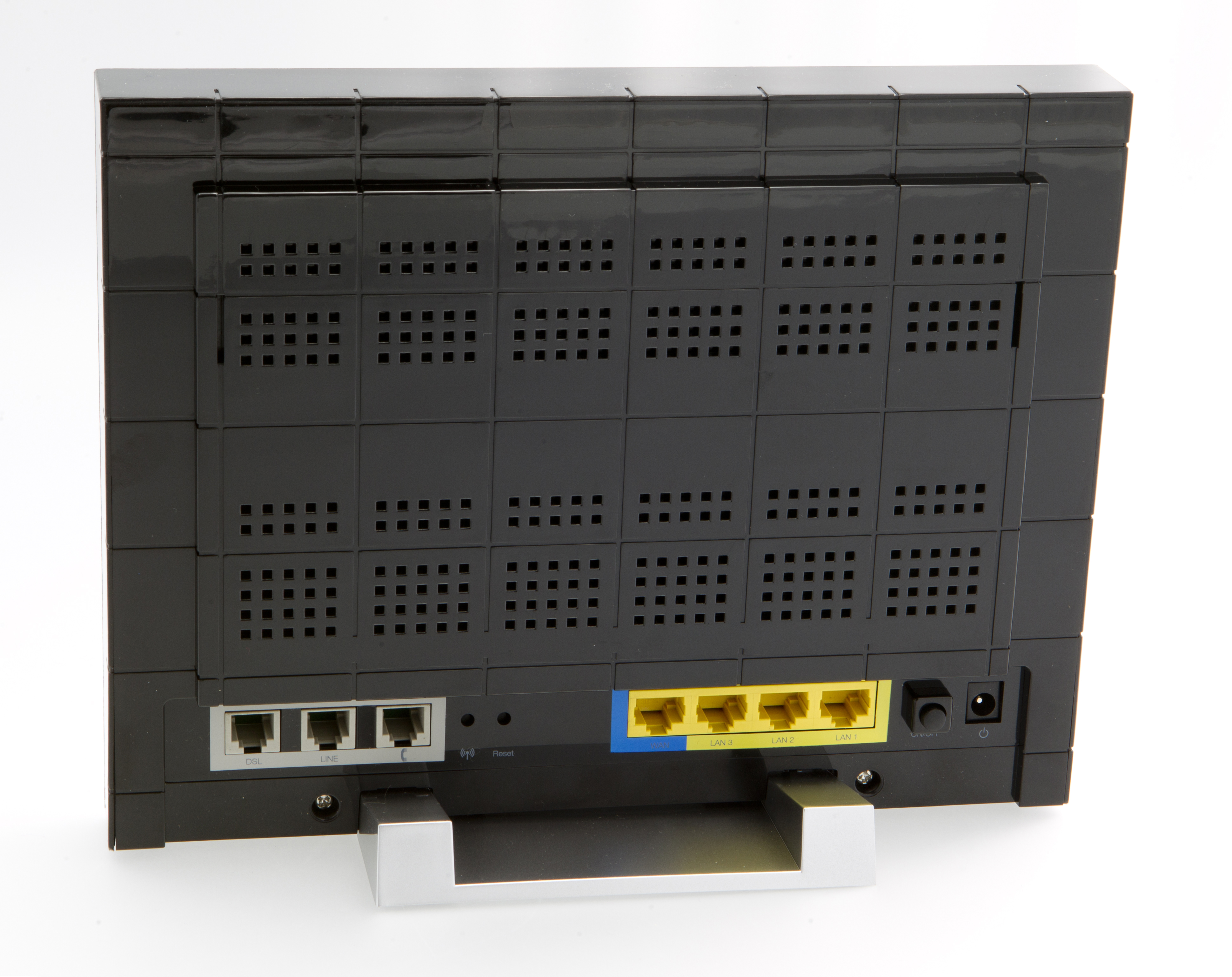

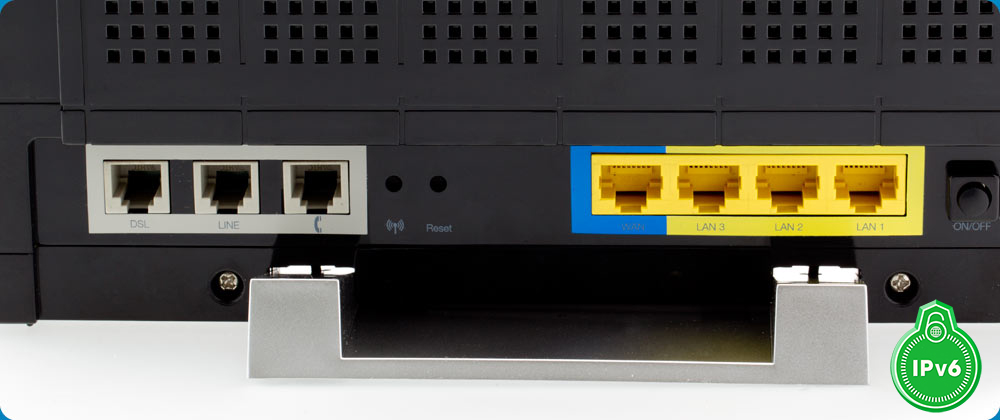

DEVICE INTERFACE

  • 3 x 10/100/1000Mbps LAN ports
  • 1 x 10/100/1000Mbps WAN port
  • 1 x FXO port
  • 1 x FXS port
  • 2 x USB 2.0 ports – for 3G/4G USB modem and HDD storage
  • 1 x DECT module
  • 1 x WPS button
  • 1 x WiFi on/off button
  • 1 x Reset button
  • 3 x 3 internal WiFi antennas
  • LED – Power/ ADSL/ 3G Signal/ Internet/ LAN1~4/ WAN/ WiFi/ VoIP /DECT
  • Power Jack

ADSL2+

  • ITU 992.1 (G.dmt) Annex A
  • ITU 992.2 (G.lite)
  • ITU 992.3 ADSL2 (G.dmt.bis)
  • ITU 992.5 ADSL2+
  • PPPoE / PPPoA / IPoA / Static IP / Dynamic IP

ETHERNET WAN

  • PPPoE, DHCP client, Static IP, PPTP, L2TP
  • Auto-reconnect, dial-on demand, manual connect
  • Dual stack IPv6

WIRELESS

  • IEEE 802.11n. Backwards compatible with IEEE 802.11b/g/a
  • 2.4 GHz & 5 GHz Concurrent WiFi
  • SSID broadcast or in stealth mode
  • Auto/Manual Channel selection
  • WEP/WPA/WPA-PSK/WPA2/WPA2-PSK
  • WPS button (WiFi Protected Setup)

VOIP

PROTOCOL
  • SIP 2.0
VOICE COMPRESSION
  • G.711 – Alaw Voice compression
  • G.711- MuLaw Voice compression
  • G.726-32 Voice Compression
  • G.729AB Voice Compression
  • G.168 116 ms tail Line Echo Cancellation
CALL FUNCTION
  • Call Forward
  • Caller ID setting
  • Call Waiting
  • 3-way conference call
  • Hot line

DECT

  • CAT-iQ 2.0 base station
  • Easy pairing registration
  • Register up to 4 DECT handsets

NAS

  • File Sharing
  • iTunes Server
  • DLNA

SECURITY

  • IP/Service Filter
  • URL blocking
  • MAC control
  • DoS (Denial of Service) Protected


ROUTING

  • Static Route
  • Dynamic Route (RIP v1/v2)
  • DMZ

ADMINISTRATION

  • SNMP
  • UPnP
  • IGD
  • Syslog
  • Web-based UI
  • Remote Login
  • TR-069 Auto provisioning
  • Backup/Restore Settings

COMPLIANCE

  • A-Tick
  •
  •
Specifications are subject to change without notice

Downloads

Documentation

Images


Hi-Res - JPG
Lo-Res - JPG

Hi-Res - JPG
Lo-Res - JPG

Hi-Res - JPG
Lo-Res - JPG

Hi-Res - JPG
Lo-Res - JPG

Hi-Res - JPG
Lo-Res - JPG

Firmware

Drivers/Utilities

There are no drivers available for this product.

3G Modem Compatibility

We’re constantly upgrading our devices to support the latest 3G/4G modems, you can check if this device is compatible with your modem in the PDF list below. To ensure maximum compatibility, always make sure you have the latest firmware installed on your device.

Download

Available in selected regions.
