LTE WiFi Router

Take advantage of the power of 4G and enjoy wireless speeds of up to 100Mbps. The LTE WiFi Router also features a Gigabit WAN port for super high-speed fibre connectivity, so you can choose how you want to connect.

Share a 300Mbps WiFi network connection between up to 16 bandwidth-intensive devices while seamlessly connecting 3 wired devices via the Ethernet ports. The 4 internal antennas ensure the strongest possible wireless signal, and everyone on the network has easy access to mass storage devices via the 2 USB ports.

4G100w
4g100w

LTE. The pinnacle of performance.

Wirelessly stream videos, download music and play online games with the unmatched capabilities of LTE. The LTE WiFi Router optimises the speed and performance benefits of LTE while ensuring compatibility with existing 3G (HSPA+) networks. Fibre broadband equivalent LTE data speeds of up to 100Mbps downlink and 50Mbps uplink are enhanced  by 2 internal 4G antennas for an optimal wireless experience.

The Gigabit advantage.

The Gigabit WAN port offers fibre connectivity – the very latest in fixed line technology. The versatile LTE WiFi Router lets you alternate your fixed fibre and wireless LTE connection as required to ensure the best possible online experience. Extreme data-hungry applications are also supported with up to 3 wired connections to the Internet via the 10/100 Ethernet port.
4g100w
4g100w

WiFi. Extending reach.

Gain the fastest WiFi speeds available with the added benefit of 2 internal antennas for maximum reach– particularly in homes or offices with heavy walls and complex layouts. Simultaneously connect up to 16 laptops, smart phones, iPads, gaming consoles, computers, digital TV's and more on a single broadband account to save time and money. The powerful LTE WiFi Router handles the load of multiple devices with ease, making it ideal for use in locations without ADSL or cable access.

USB. Peripheral connections.

Achieve your storage objectives with shared access to mass storage devices via the 2 USB ports. All users connected to the network can store and share photos, music files and documents without moving.
4g100w

Technical Specifications

HARDWARE SPECIFICATIONS

  • Chipset: Qualcomm MDM9200



LTE

LTE FDD Cat 3 (DL 100Mbps / UL 50Mbps) bands:
  • 4G100W-01
    • Band 4 (AWS 1700/2100)
    • Band 17 (700)
  • 4G100W-02
    • Band 1 (2100)
    • Band 3 (1800)
    • Band 7 (2600)
    • Band 8 (900)
    • Band 20 (DD800)
  • 4G100W-03
    • Band 13 (700)
  • Up to 100 Mbps downlink
  • Up to 50 Mbps uplink



DC-HSPA+

  • Up to 42 Mbps downlink
  • Up to 5.67 Mbps uplink
  • Quad-band EDGE/GPRS/GSM
  • 4G100W-01
    • Band 1 (2100)
    • Band 2 (1900)
    • Band 5 (850)
    • Band 6 (800)
  • 4G100W-02
    • Band 1 (2100)
    • Band 8 (900)
  • 4G100W-03
    • Band 1 (2100)
    • Band 2 (1900)
    • Band 5 (850)
    • Band 8 (900)
  • GSM / GPRS / EDGE bands: 850 / 900 / 1800 / 1900



WWAN INTERFACE

  • 4G x 1



WAN INTERFACE

  • Gigabit Ethernet x 1 (Configurable WAN/LAN)



LAN INTERFACE

  • 10/100 Ethernet x 3

USB HOST

  • USB host ports x 2 (USB storage)

WLAN

  • MAC Address Filtering, WEP, WPA, IEEE 802.1X
Standard
  • IEEE802.11n, backward compatible with 802.11b/g
Encryption
  • WEP, WPA, WPA2
Channels
  • 11 Channels (US, Canada)
  • 13 Channels (Europe, Australia)
  • 14 Channels (Japan)
WLAN Data Rate
  • Up to 300Mbps
  •

WAN CONNECTION

PPP/IP
  • Yes



ANTENNA

  • Internal 4G Antennas x2

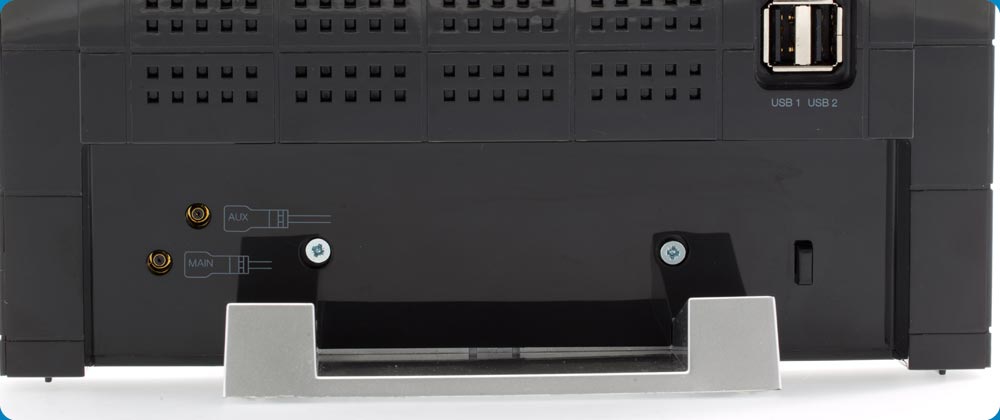

  • External MS-147 switching antenna connectors



MANAGEMENT

  • SNMP, SNTP, Web-based management, Configuration backup and restoration
  • Firmware upgrade via HTTP



SECURITY FUNCTIONS

  • Stateful Packet Inspection, Packet filtering, Denial Of Service protection, Management
Authentication protocols
  • PAP, CHAP
VPN
  • PPTP/L2TP/IPSec pass-through



LEDS

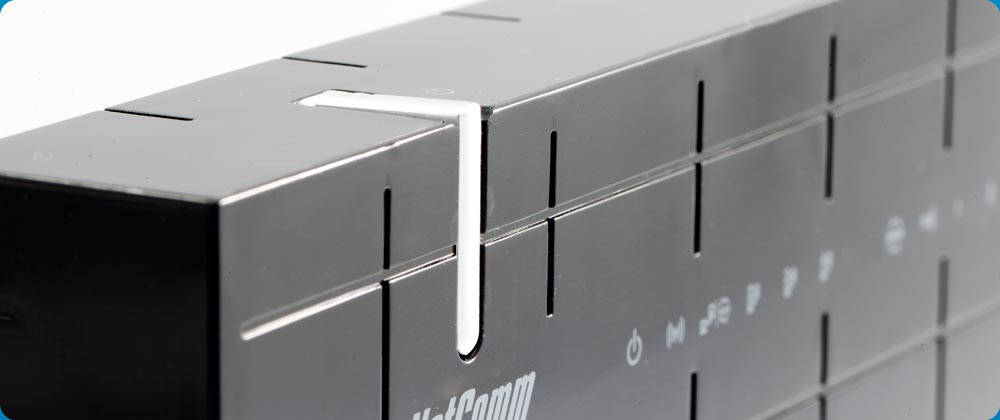

  • Power, LAN 4, LAN 3, LAN2, LAN 1, WLAN, Internet, 4G, Signal Strength for Low, Mid and High LEDs



POWER

  • External power adapter
  • 100-240VAC  to  12VDC/1.5A



ENVIRONMENTAL CONDITIONS

Operating temperature
  • 0 ~ 50 degrees Celsius
Relative humidity
  • 5 ~ 90% (non-condensing)
  •

DIMENSIONS

  • 205 mm (W) x 175 mm (H) x 31 mm (D)
Specifications are subject to change without notice
