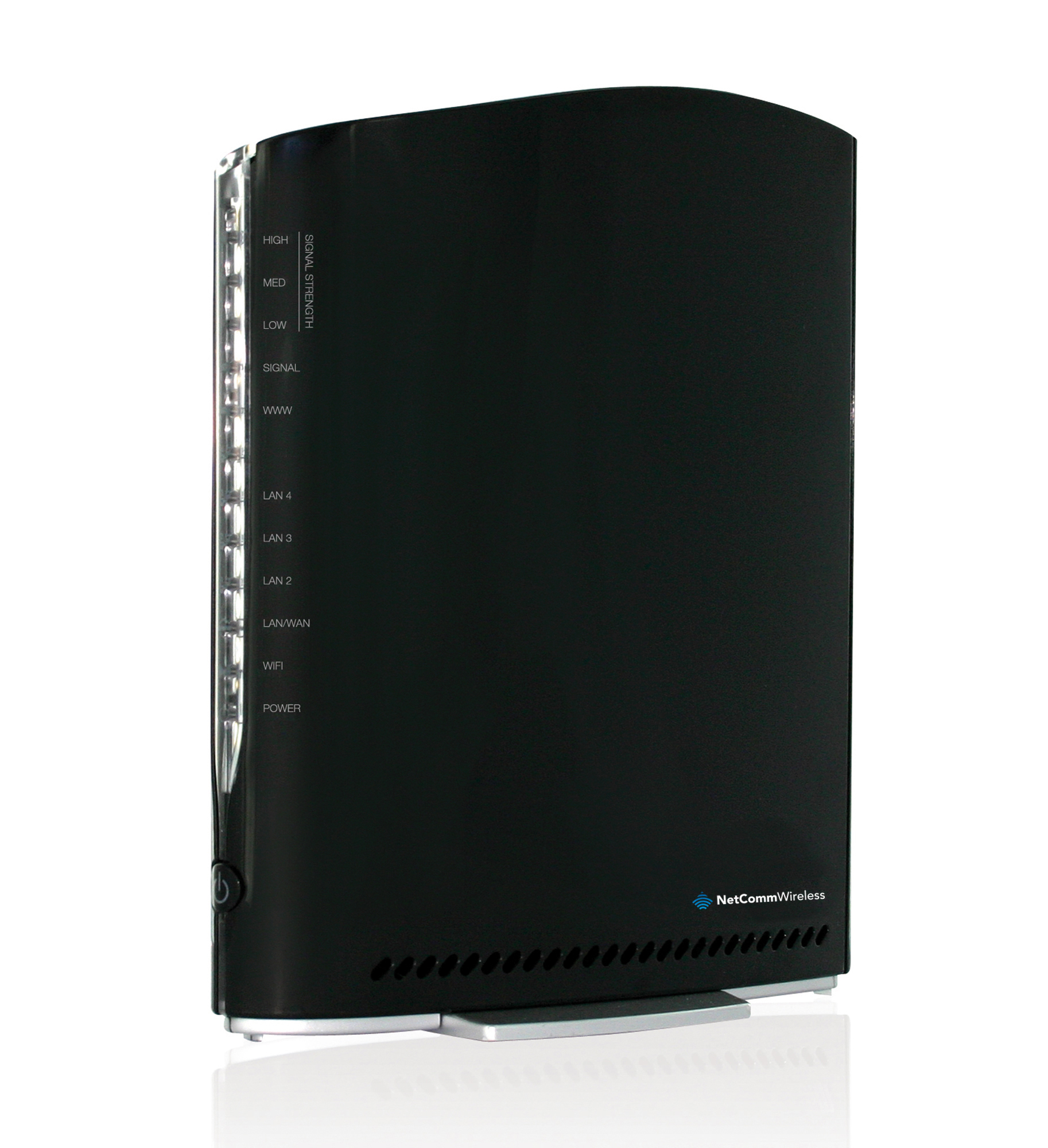

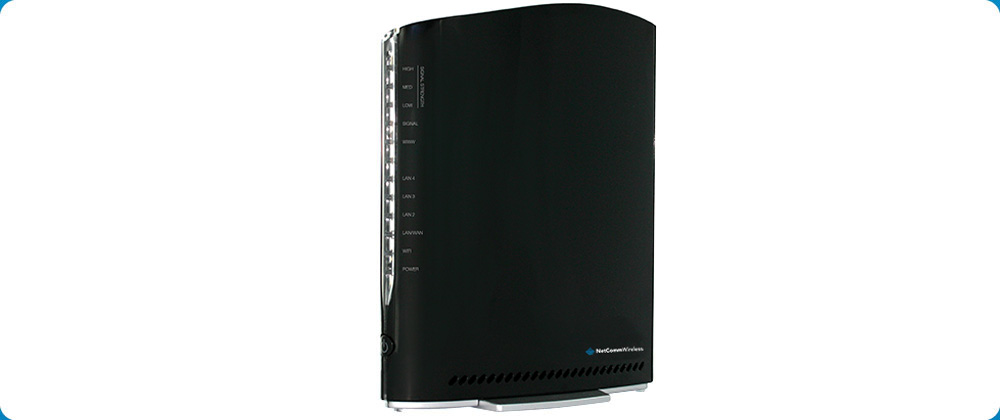

3G / 4G USB Gateway

Transform your 3G/4G USB modem into a powerful all-in-one gateway that delivers reliable broadband Internet connectivity to multiple wired and wireless devices wherever network coverage exists. The future-proof device works with most USB modems to support simultaneous multi-device access to your choice of a fixed (ADSL or fibre) or mobile (3G / 4G LTE) broadband connection.

Create a high-speed 300Mbps wireless network for multiple WiFi devices, connect a wired device via the Gigabit LAN port and network a mass storage device via the additional USB port.

3g41wt
3g41wt

USB Compatibility.

The 3G/4G USB Gateway works with most leading 3G USB modems and 4G/LTE dongles to offer maximum choice. Use your existing USB modem to connect multiple devices to broadband Internet, or select from a range of leading providers.

Shared WiFi.

Maximise your mobile broadband connection and reduce costs by sharing a superfast 300Mbps WiFi connection between multiple devices such as laptops, tablet computers and smart phones on a single data plan.
3g41wt
3g41wt

Alternate Gigabit.

Future-proof your fixed connection options using a fibre connection to the Gigabit WAN port which can also be used as a Gigabit LAN port to support wired connections for super high-bandwidth activities such as high-definition streaming, multimedia and online gaming.

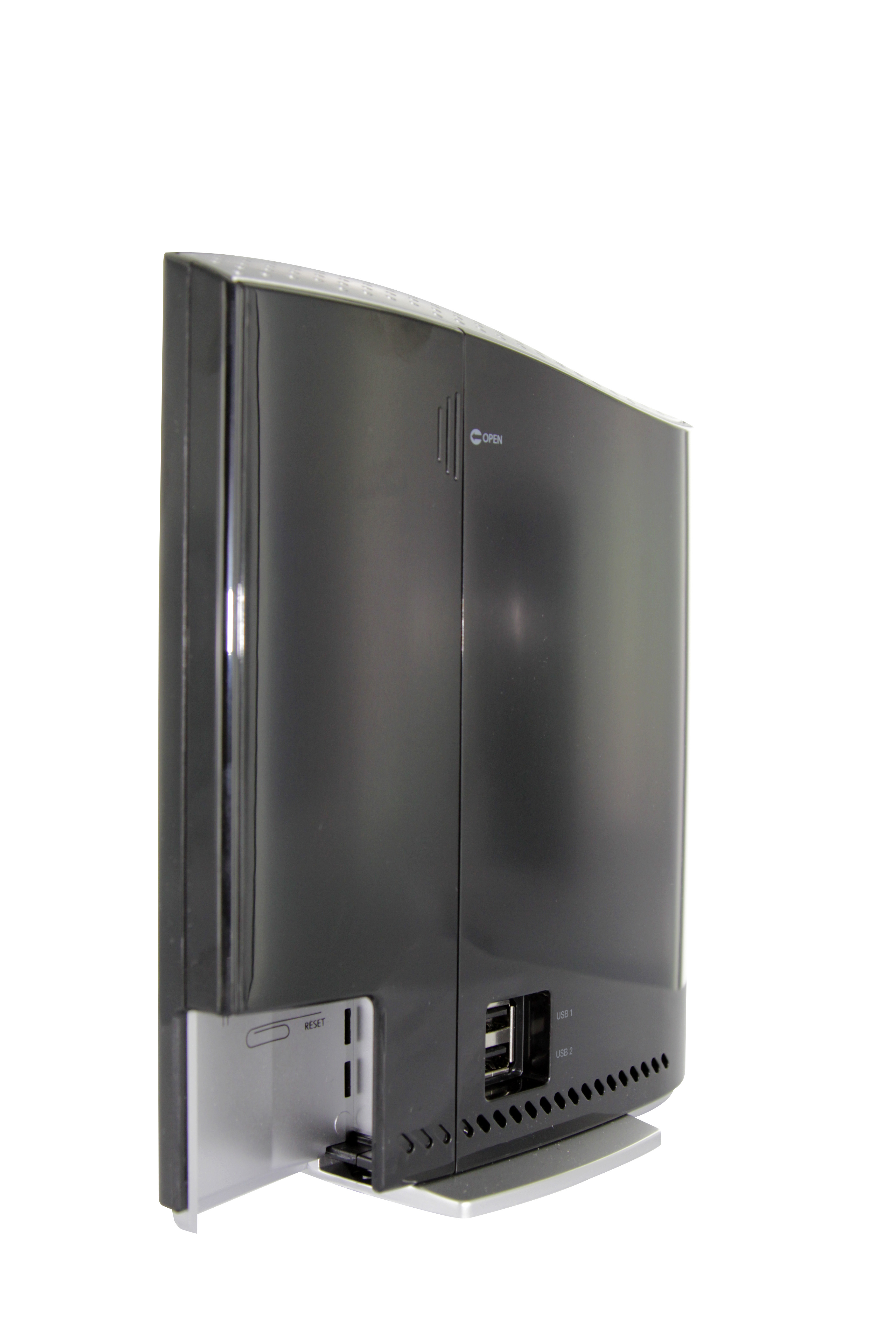

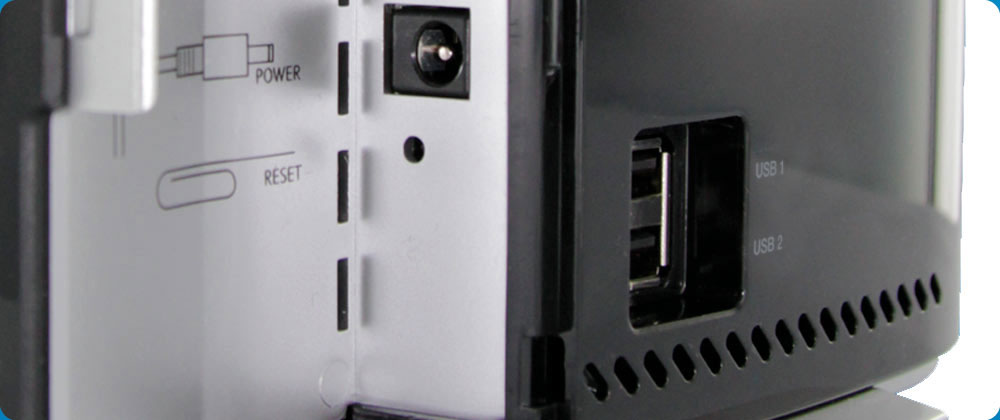

Additional USB.

Ideal for business users, the 3G/4G USB modem features an extra USB port for the connection of a USB mass storage device to support your file sharing needs.
3g41wt

This device may be restricted to certain networks and USB modems. Please see 3G compatibility list

Technical Specifications

USB INTERFACE

  • 2 x USB 2.0 including;
  • 1 x USB for 3G/4G modems
  • 1 x USB for external hard drives

WAN INTERFACE

  • Gigabit Ethernet x 1 (configurable as WAN/LAN)

LAN INTERFACE

  • 10/100 Ethernet x 3

WLAN

  • MAC Address Filtering, WEP, WPA, IEEE 802.1X
  • 10, 25, 50, 100mW @ 22MHz channel bandwidth Output power level can be selected according to the environment
Standard
  • IEEE802.11n, backward compatible with 802.11b/g
Encryption
  • 64, 128-bit Wired Equivalent Privacy (WEP) Data Encryption, WPA-PSK, WPA2-PSK
Channels
  • 11 Channels (US, Canada)
  • 13 Channels (Europe, Australia)
  • 14 Channels (Japan)
WLAN Data Rate
  • Up to 300Mbps

MANAGEMENT

  • SNMP, SNTP, Telnet, Web-based management, Configuration backup and restoration
  • Firmware upgrade via HTTP, TFTP client and server, or FTP server

ROUTING FUNCTIONS

  • Static route, NAT/PAT, DMZ, DHCP Client/Server/Relay, DNS Proxy, DDNS

SECURITY FUNCTIONS

  • Stateful Packet Inspection, Packet filtering, Denial Of Service protection, Management
Authentication protocols
  • PAP, CHAP
VPN
  • PPTP/L2TP/IPSec pass-through

LED

  • Power, LAN 4, LAN 3, LAN2, WAN/LAN, WIFI, Internet, 4G, Signal Strength for Low, Mid and High LEDs

POWER

  • External power adapter
  • 100-240VAC  to  12VDC /1.5A

ENVIRONMENTAL CONDITIONS

Operating temperature
  • 0 ~ 50 degrees Celsius
Relative humidity
  • 5 ~ 90% (non-condensing)

DIMENSIONS

  • 65 mm (W) x 195 mm (H) x 160 mm (D)
Specifications are subject to change without notice

Downloads

Documentation

Images


Hi-Res - JPG
Lo-Res - JPG

Hi-Res - JPG
Lo-Res - JPG

Hi-Res - JPG
Lo-Res - JPG

Hi-Res - JPG
Lo-Res - JPG

Firmware

Drivers/Utilities

There are no drivers available for this product.

3G Modem Compatibility

We’re constantly upgrading our devices to support the latest 3G/4G modems, you can check if this device is compatible with your modem in the PDF list below. To ensure maximum compatibility, always make sure you have the latest firmware installed on your device.

Download

Available in selected regions.
