3G WiFi Router with Voice

The 3G WiFi Router with Voice combines 3G (HSPA+) broadband, 300Mbps WiFi and mobile telephony to bring simple all-in-one Internet and telephone connectivity to your home or office. Broadcast a high-speed WiFi connection to up to 10 devices simultaneously wherever a power outlet and 3G reception exists; and connect up to 2 wired devices via the Ethernet LAN port. The 3G WiFi Router with Voice also offers an alternate fixed line (ADSL2+ or cable) connection to the Internet via Ethernet WAN if needed.
3G38WV
3G38WV

Broadband without boundaries.

Create an instant Internet and telephone connection with the flexibility of 3G. The 3G WiFi Router with Voice handles all of your communication needs without fixed line limitations, and comes equipped with a powerful antenna system to ensure optimal access to 21Mbps HSPA+ mobile broadband – the most extensive network available.
Ideal for reliable connectivity in areas beyond the reach of ADSL, the powerful and versatile 3G WiFi Router with Voice benefits mobile businesses, temporary office setups and renters. Simply insert a 3G SIM card and plug the Router into a power outlet for a fast, reliable and secure Internet and phone connection.

Ordinary phone. Extraordinary potential.

Replace your landline completely by making standard phone calls over the 3G network. The HSPA+ WiFi Router with Voice includes 2 RJ11 voice ports for the convenience of standard / cordless phone connectivity without the expense of telephone line rental.
3G38WV
3G38WV

A shared connection

With wireless N speeds of up to 300Mbps, multiple devices such as desktop computers, laptops, smart phones, tablet computers and landline phones can share access to the fastest WiFi speeds available. The 3G WiFi Router with Voice comes equipped with the latest antenna technology to deliver the best possible wireless signal to up to 10 devices while protecting your network with the latest WiFi security.

The wired alternative.

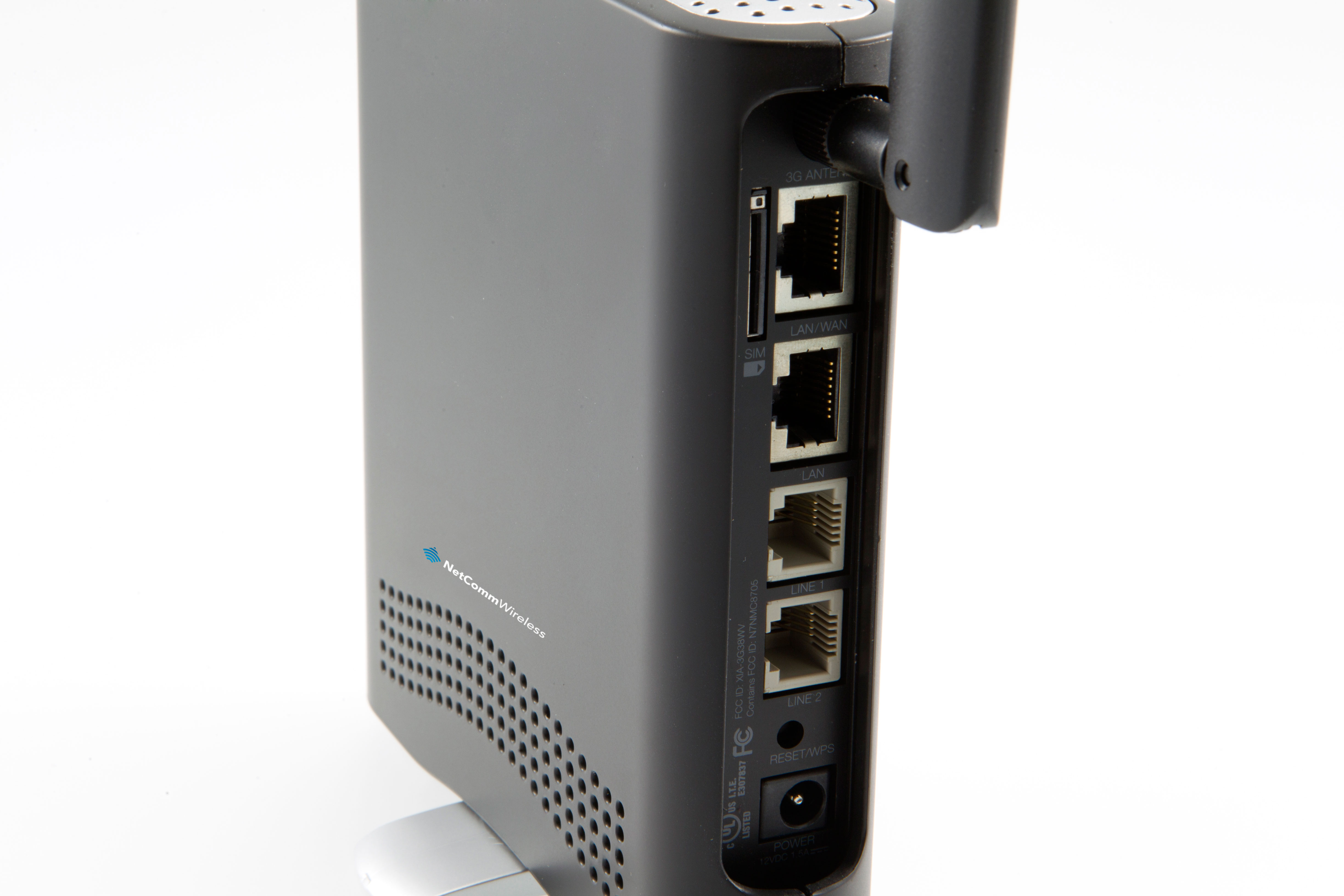

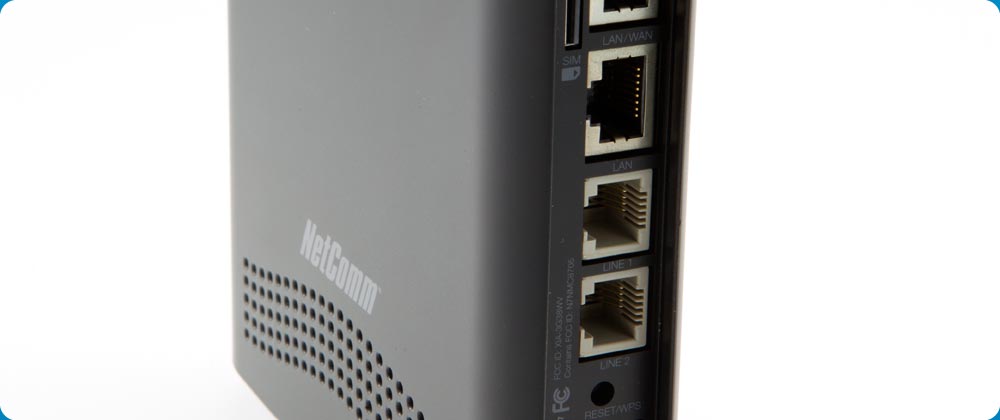

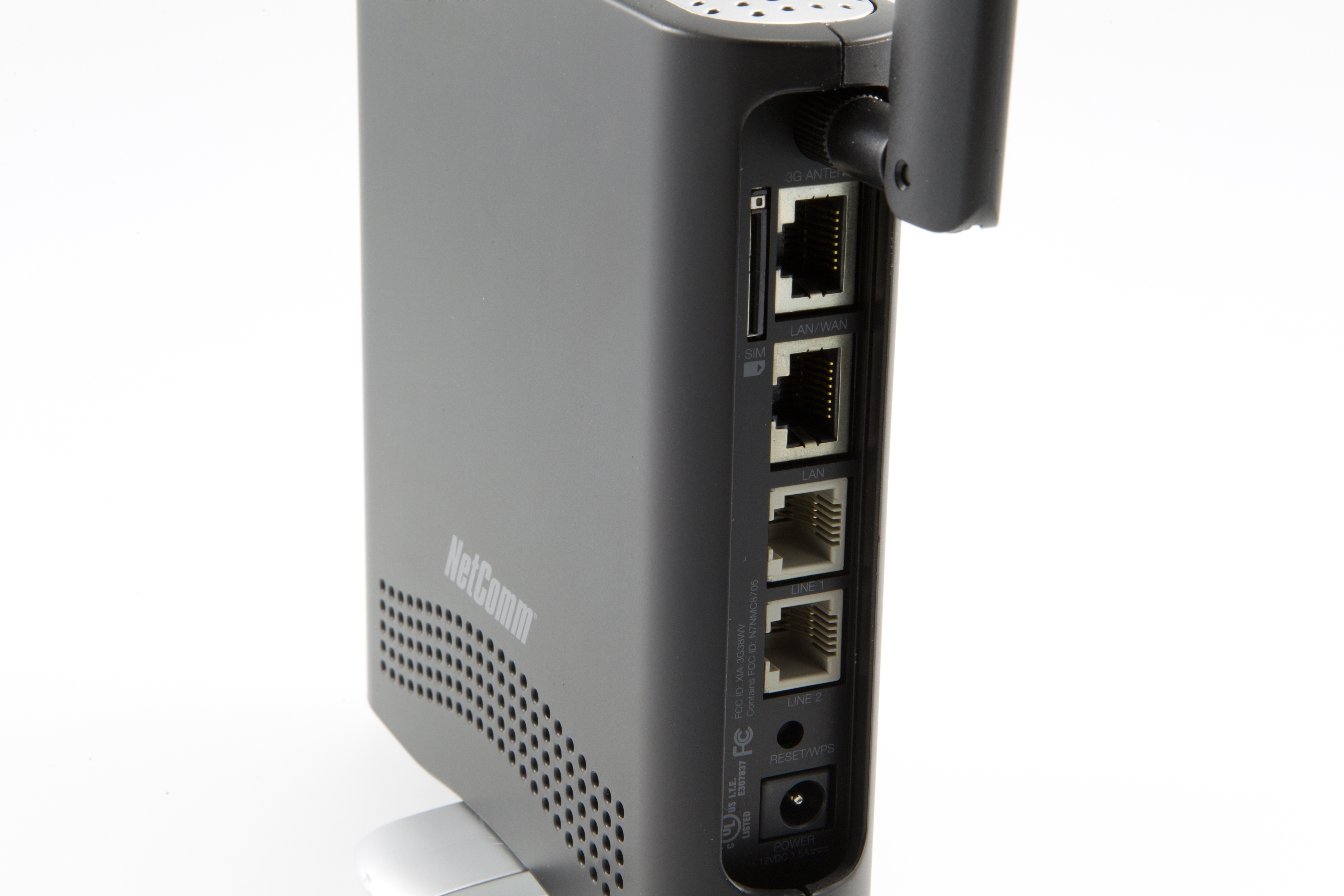

For super high-bandwidth activities, such as movie or music streaming, the 3G WiFi Router with Voice lets you make up to 2 wired connections via the LAN 10/100 Ethernet LAN ports. Offering a new level of versatility, one of the Ethernet LAN ports can be transformed into an Ethernet WAN port to enable a fixed line connection to the Internet in the case of poor 3G reception.
3G38WV

Technical Specifications

HSPA+

  • 850/900/1900/2100 MHz UMTS/HSDPA/HSUPA
  • Up to 21 Mbps downlink (HSDPA Cat 14)
  • Up to 5.76 Mbps uplink (HSUPA Cat 6)
  • Quad-band EDGE/GPRS/GSM

WWAN INTERFACE

  • 3G x 1

LAN INTERFACE

  • 10/100 Ethernet x 2

PHONE INTERFACE

  • RJ-11 FXS Phone Port (optional) x 2

WLAN

STANDARD
  • IEEE802.11n, backward compatible with 802.11b/g
ENCRYPTION
  • WEP, WPA, WPA2
WLAN DATA RATE
  • Up to 300Mbps

ANTENNA SYSTEM

  • 1 x External cellular main - removable multi-band 2dBi gain terminal mount omni antenna
  • 1 x Internal cellular diversity antenna
  • 2 x Internal 2.4GHz antennas for 802.11n WiFi

WAN CONNECTION

PPP/IP
  • Yes
ANTENNA TYPE
  • Internal 3G Antennas

MANAGEMENT

  • Web based user interface (HTTP), Firmware upgrade via LAN, System Monitoring, Diagnostic Log Viewer

ROUTING FUNCTIONS

  • WWAN (3G), PPPoE, DHCP Server/Client, Static Route, Dynamic DNS, NAT - Port Forwarding, DMZ, DNS Masquerading, RIP, PPP with PAP/CHAP, NTP

SECURITY FUNCTIONS

  • Stateful Packet Inspection, Packet filtering, Denial Of Service protection, Management
AUTHENTICATION PROTOCOLS
  • PAP, CHAP
VPN
  • Pass-through PPTP, IPSec, SSL

LED

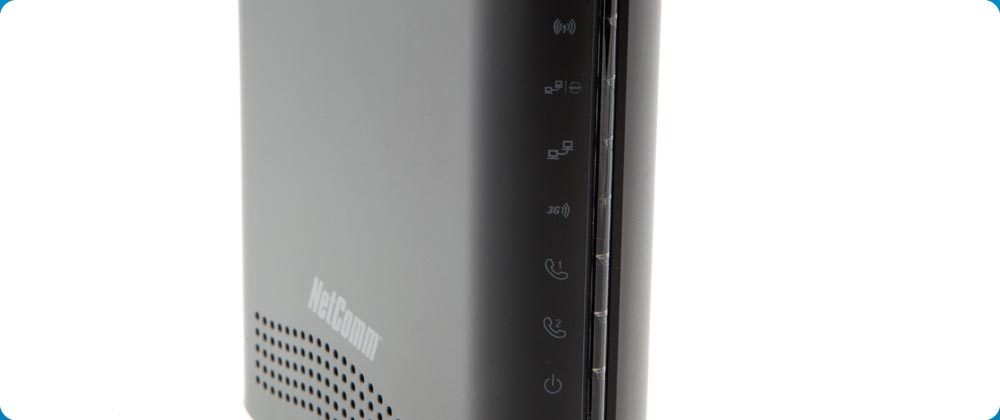

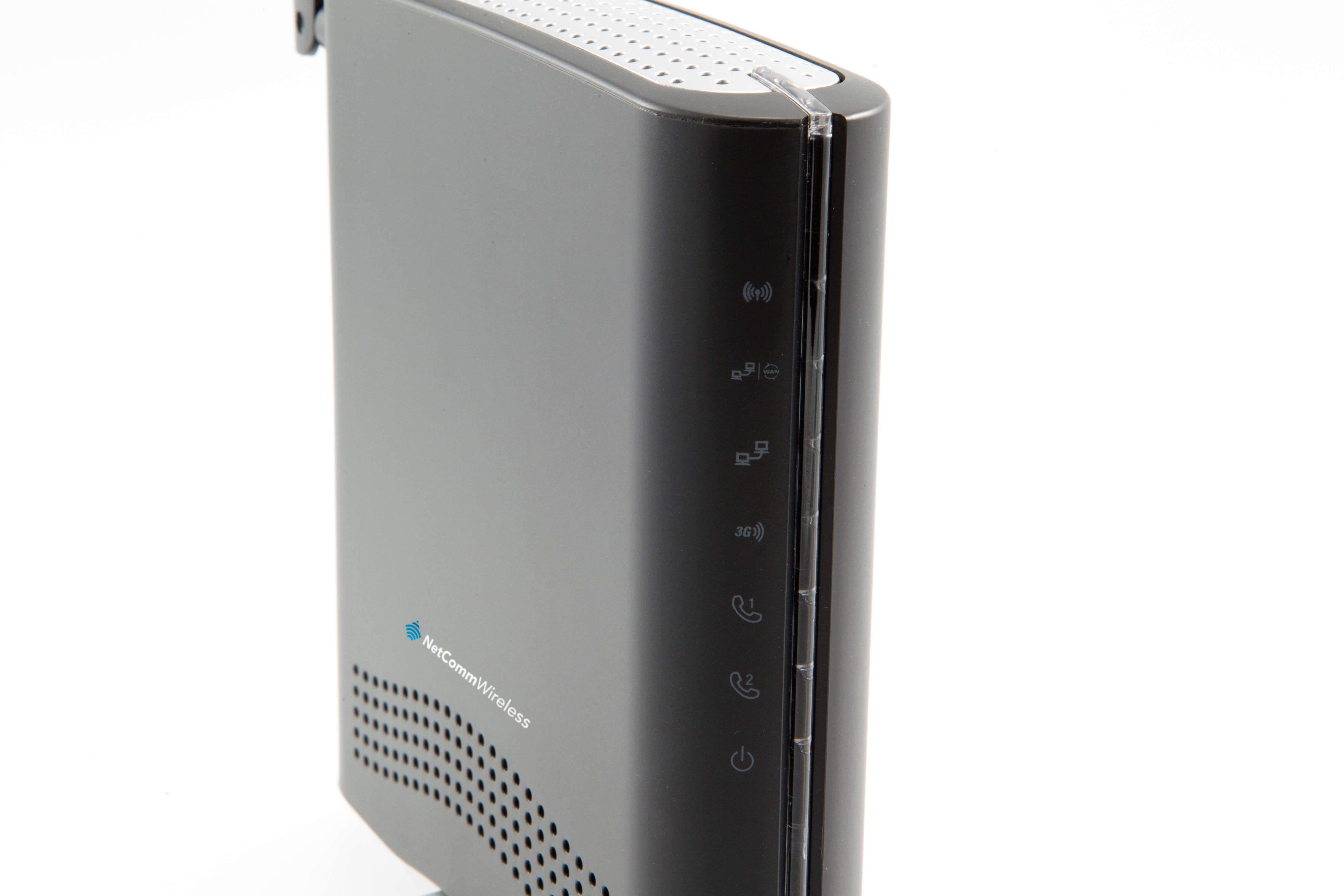

  • Power, 3G, WiFi, Internet/WAN, LAN, Phone 1, Phone 2

POWER

  • External power adapter
  • DC in port: 12VDC


ENVIRONMENTAL CONDITIONS

OPERATING TEMPERATURE
  • 0 ~ 50 degrees Celsius
RELATIVE HUMIDITY
  • 5 ~ 90% (non-condensing)

DIMENSIONS AND WEIGHT

  • 140 mm (L) x 132 mm (W) x 34 mm (H)
  • 240 grams

REGULATORY COMPLIANCE

  • RoHS
  • IC
  • FCC
  • PTCRB
  • A-Tick

PACKAGE INCLUDES

  • 3G38WV Gateway
  • 1 x 1.5M Ethernet cable
  • 1 x external antenna
  • 1 x 2M telephone (RJ-11) cable
  • DC power adapter
  • Quick start guide
Specifications are subject to change without notice
