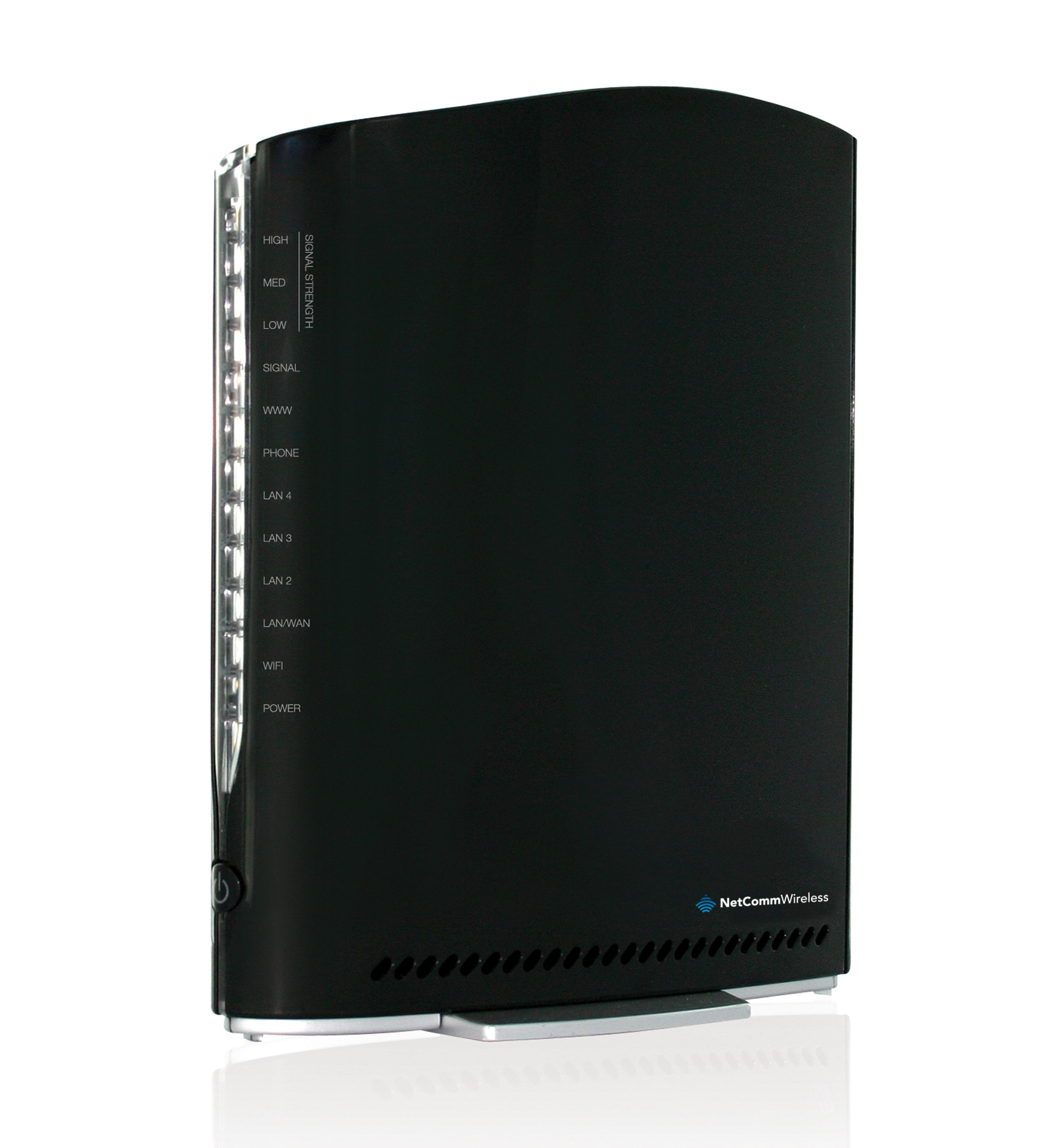

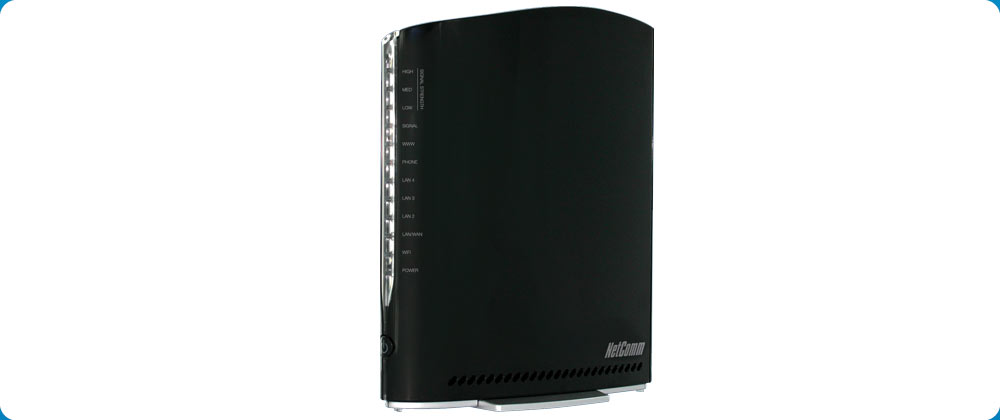

3G WiFi Router with Voice

Connect to 3G networks worldwide and create an instant local area network that supports reliable Internet and telephone connectivity wherever you are. The high-performance 3G WiFi Router with Voice transmits a high-speed WiFi connection to as many as 16 devices simultaneously; connects up to 4 wired devices and includes 2 USB 2.0 ports to connect and share USB hard drives. Use a standard analogue telephone to make calls over 3G and benefit from an alternate fixed line connection to the Internet via the Gigabit WAN port.
3G22WV
3g22wv

Global 3G connectivity.

Ideal for use in areas without ADSL, cable or fibre, the 3G WiFi Router with Voice integrates a powerful module for universal 3G/HSPA+ connectivity.  With peak speeds reaching 21Mbps you can enjoy an optimal online experience in any location.

Superfast Wireless N.

Create and share a mighty 300Mbps WiFi network with up to 16 wireless devices such as laptops, gaming consoles, iPads and smart phones. The cost-effective 3G Router lets multiple users share the one data bundle to reduce connection costs.
3g22wv
3g22wv

Online voice.

Avoid landline limitations and benefit from the flexibility of making calls over the 3G network by simply connecting a standard analogue telephone to the RJ-11 voice port.

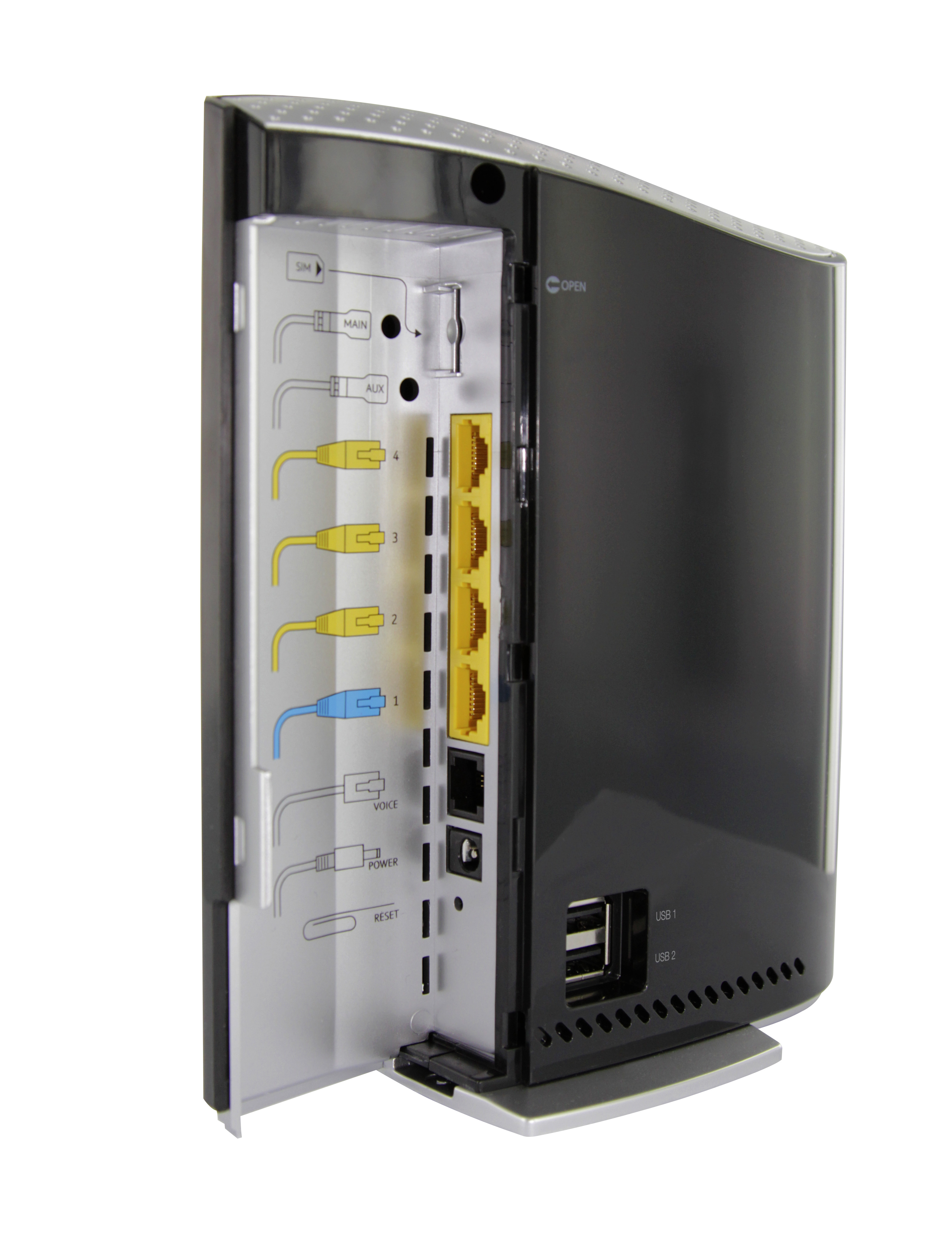

Advanced Gigabit.

Make use of the Gigabit WAN / LAN port to establish an alternate fixed line (ADSL2+, cable or fibre) Internet connection if needed. The same port can also be used to connect a high-speed wired device such as a network-attached storage (NAS) device for easy file sharing among multiple computers.
3g22wv
3g22wv

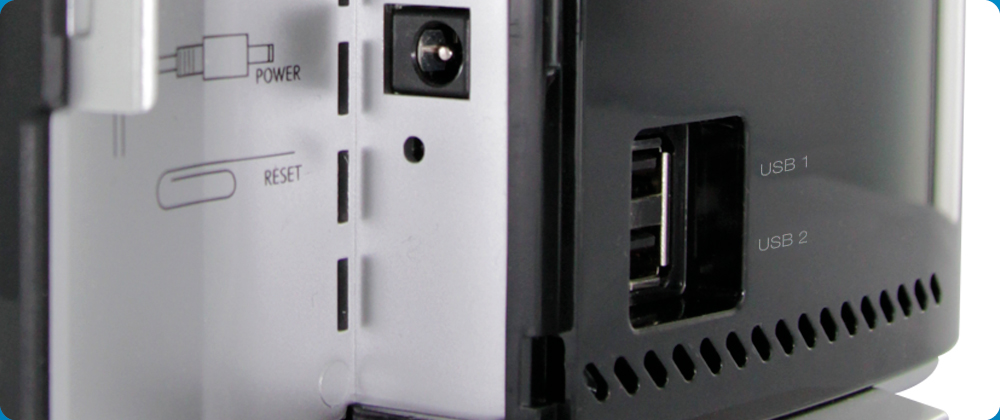

Practical USB.

With 2 in-built USB ports the 3G WiFi Router with Voice has your file sharing needs covered. Everyone on the network can share access to a connected external hard drive to share files or stream movies and music to other connected devices.

Technical Specifications

HSPA+

  • 850/900/1900/2100 MHz
  • Up to 21 Mbps downlink
  • Up to 5.67 Mbps uplink
  • Quad-band EDGE/GPRS/GSM

WWAN Interface

  • 3G x 1

WAN Interface

  • Gigabit Ethernet x 1 (WAN/LAN)

LAN Interface

  • 10/100 Ethernet x 3
  • 10/100/1000 Ethernet x 1 (WAN/LAN)

USB Host

  • USB host ports x 2

Telephony

  • RJ-11 FXS port x 1
  • Circuit switched voice calling

WLAN

  • MAC Address Filtering, WEP, WPA, IEEE 802.1X
Standard
  • IEEE802.11n, backward compatible with 802.11b/g
Encryption
  • WEP, WPA, WPA2
Channels
  • 11 Channels (US, Canada)
  • 13 Channels (Europe, Australia)
  • 14 Channels (Japan)
WLAN Data Rate
  • Up to 300Mbps

WAN Connection

PPP/IP
  • Yes
Antenna Type
  • Internal 3G antennas

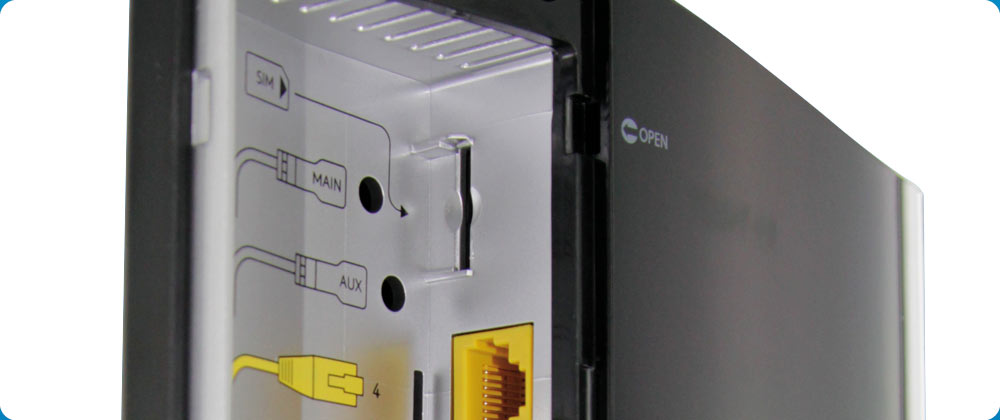

  • External MS-147 antenna connectors for optional connection to high gain 3G antennas

Management

  • SNMP, SNTP, Web-based management, Configuration backup and restoration
  • Firmware upgrade via HTTP

Routing Functions

  • Static route, NAT/PAT, DMZ, DHCP Client/Server/Relay, DNS Proxy, DDNS

Security Functions

  • Stateful Packet Inspection, Packet filtering, Denial Of Service protection, Management

Authentication protocols

  • PAP, CHAP

VPN

  • PPTP/L2TP/IPSec pass-through

LED

  • Power, LAN 4, LAN 3, LAN2, LAN 1, WLAN, Internet, 3G, Voice, Signal Strength for Low, Mid and High LEDs

Power

  • External power adapter
  • 100-240VAC  to  12VDC /1.5A

Environmental Conditions

Operating temperature
  • 0 ~ 50 degrees Celsius
Relative humidity
  • 5 ~ 90% (non-condensing)

Dimensions

  • 191 mm (W) x 166 mm (H) x 31 mm (D)
  •
Specifications are subject to change without notice
