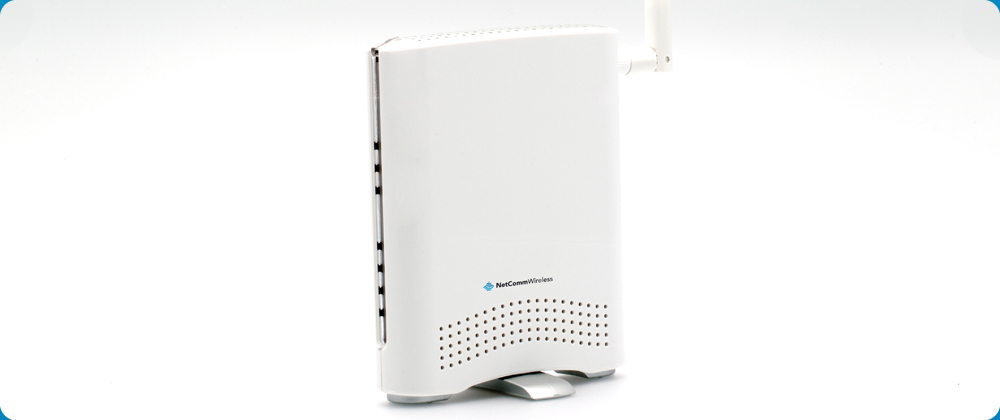

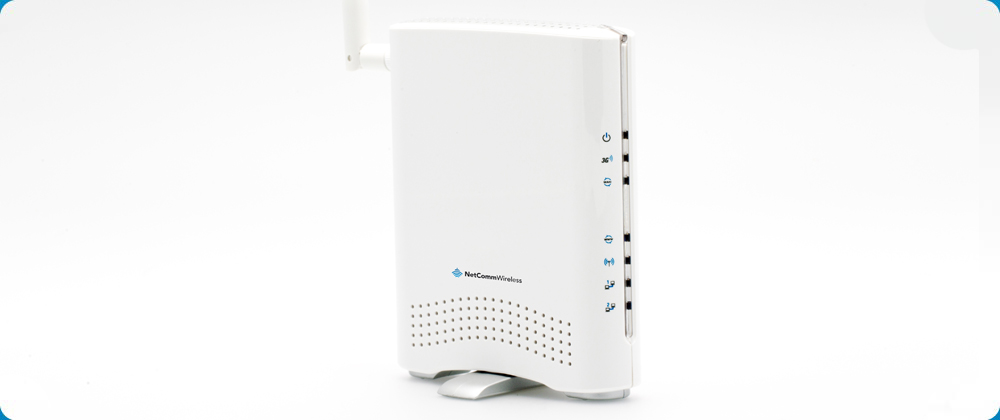

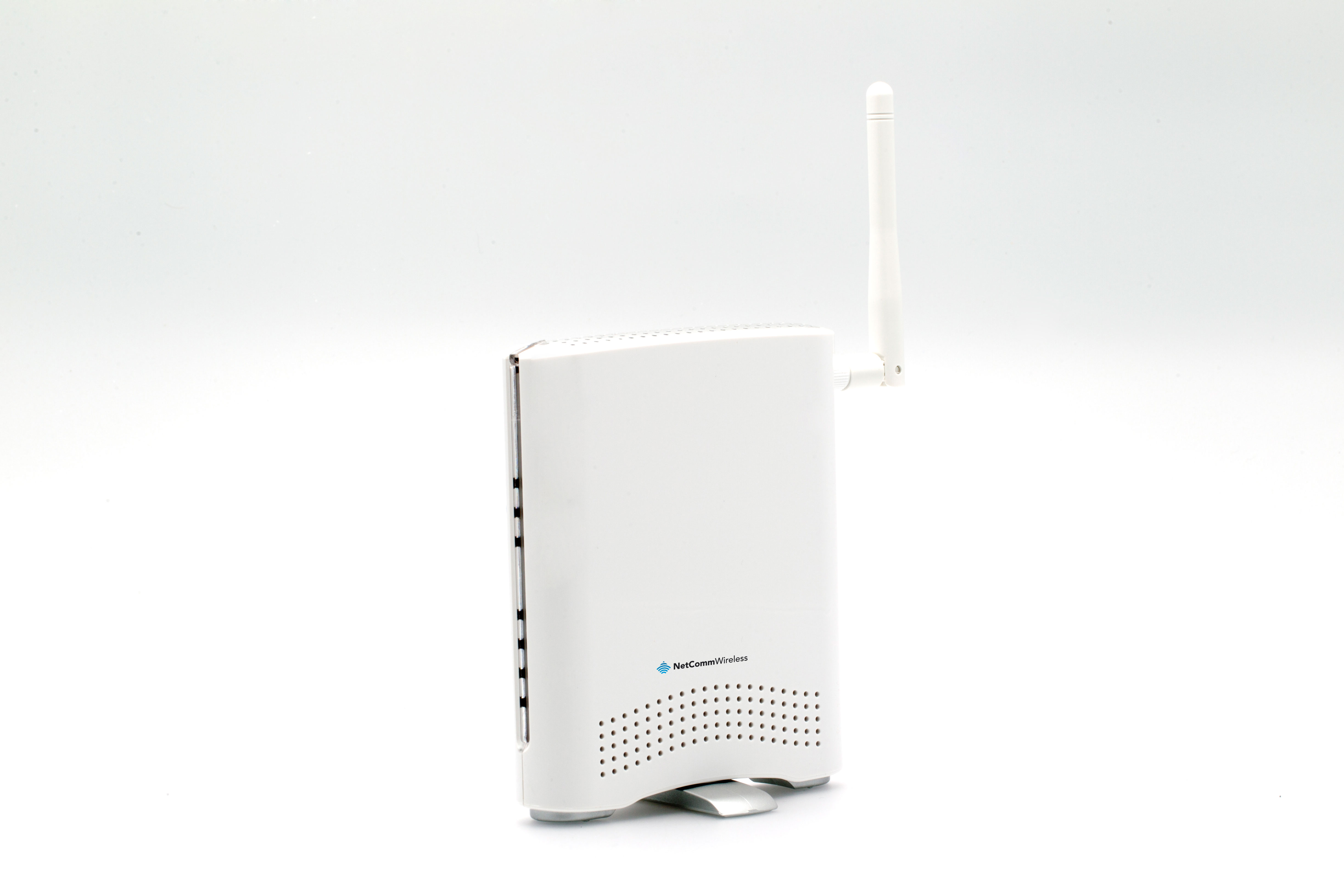

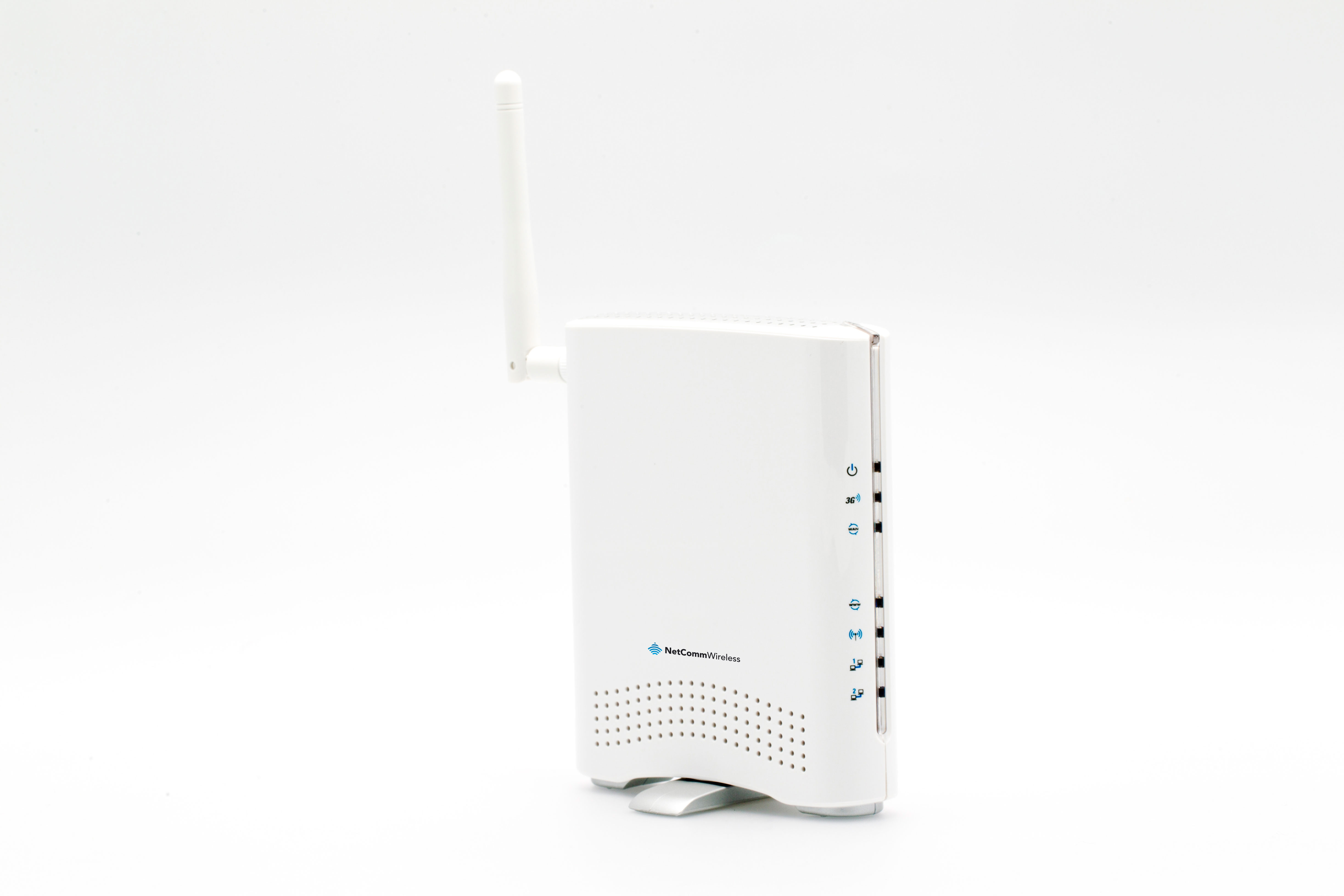

3G Wireless N150 Router

Access fast and reliable anywhere, anytime Internet connectivity using your choice of a 3G USB modem or a fixed line xDSL/cable connection. Share a single mobile broadband plan between multiple wireless and wired devices to save time and money, and with automatic failover to 3G you'll benefit from an undisrupted connection. The 3G Wireless N150 Router also offers variety of advanced security features for maximum networked device protection.
3G17WN
3G17WN

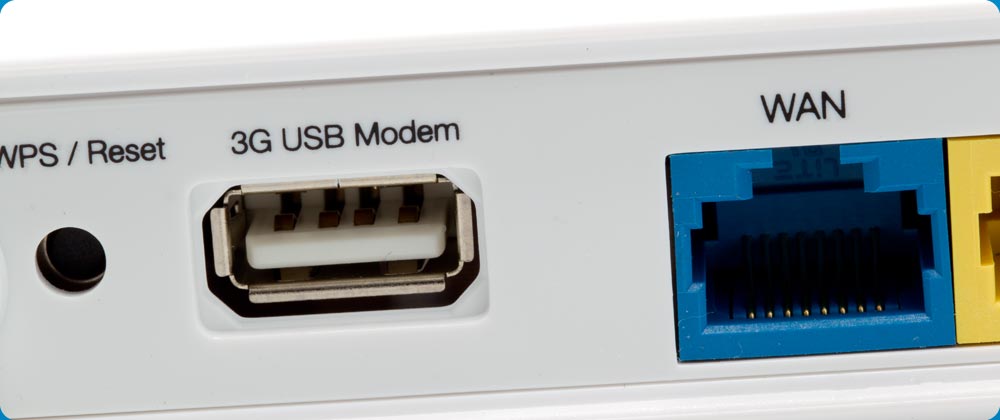

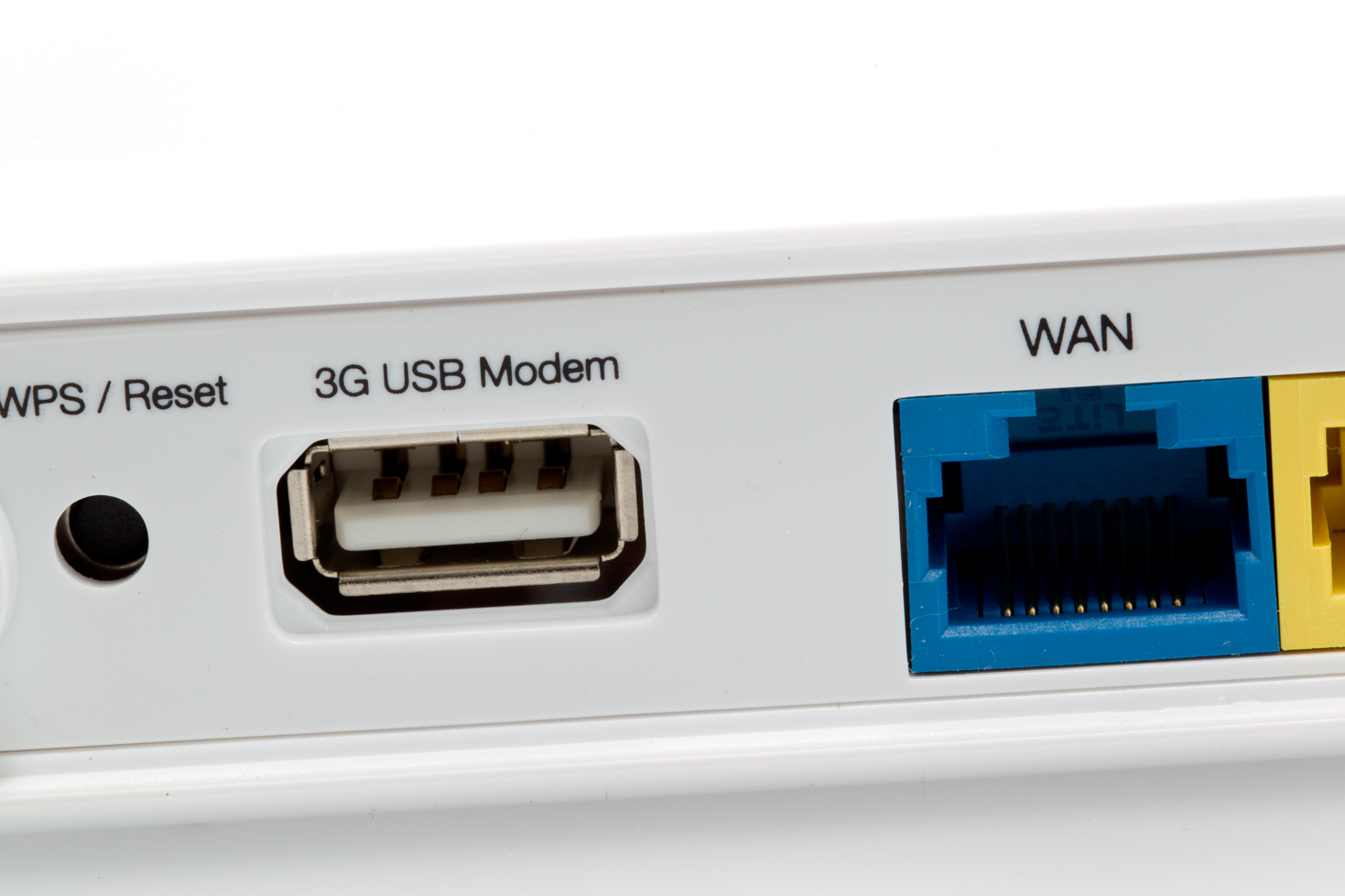

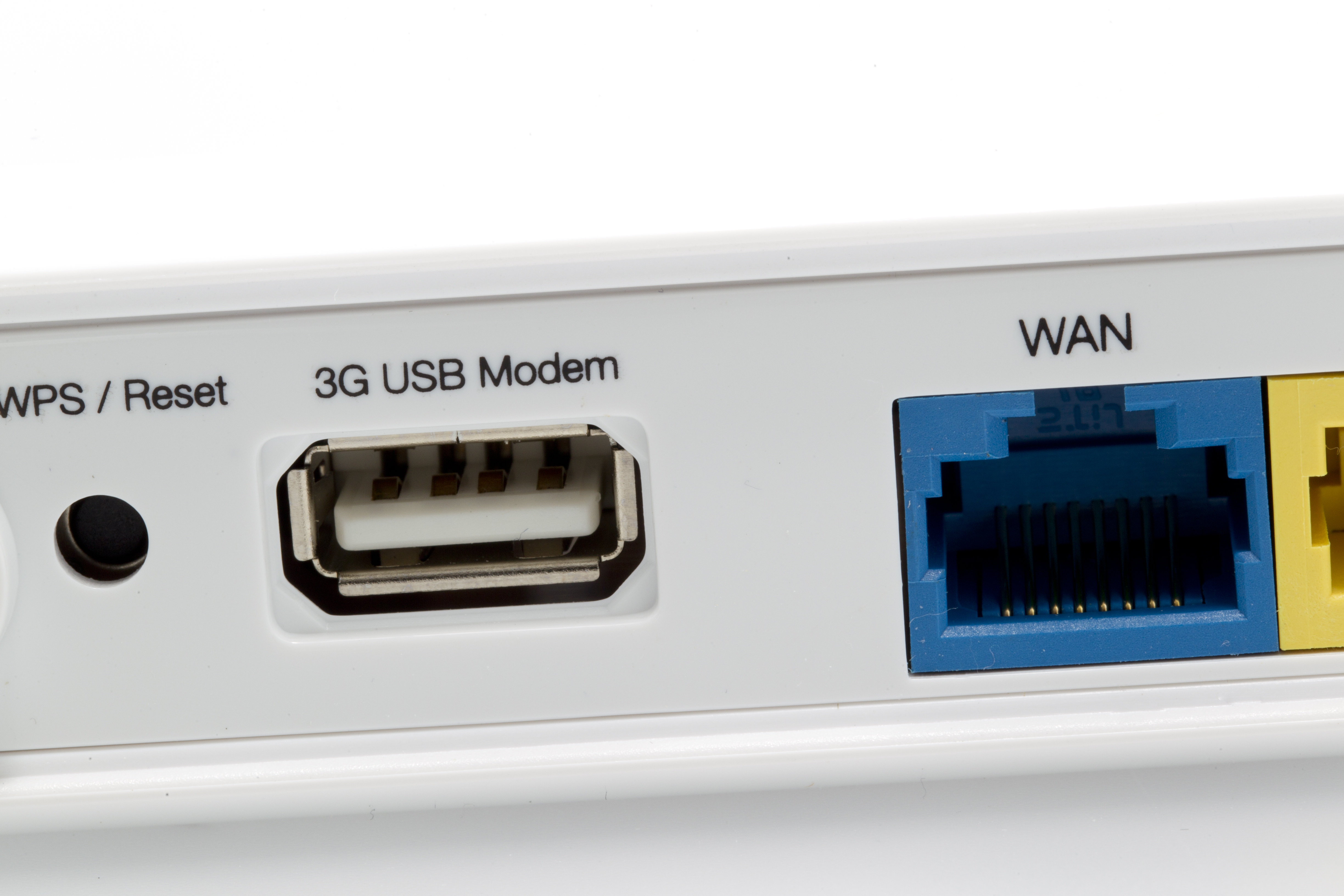

Extensive USB.

Simply plug a 3G USB modem into the USB port for a simple to setup Internet connection that you can take with you. Compatible with all leading USB modems, the 3G Wireless N150 Router gives you the opportunity to select the Internet provider and broadband plan of your choice.

WiFi anywhere.

Whether you're at home or working from a temporary location or a remote office, the 3G Wireless N150 Router lets you create and share a secure 150Mbps personal WiFi network between multiple users and devices on a single broadband account.
3G17WN
3G17WN

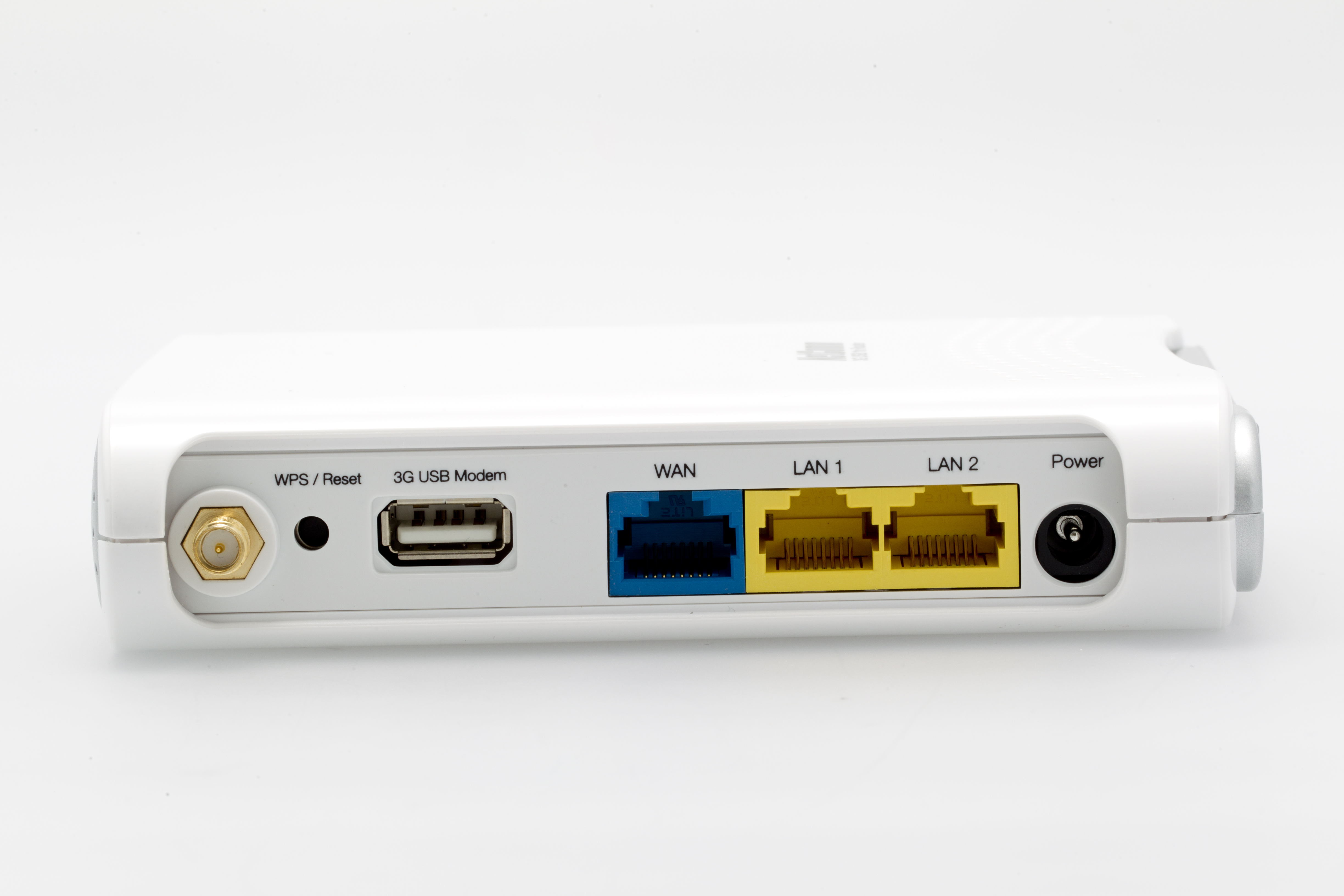

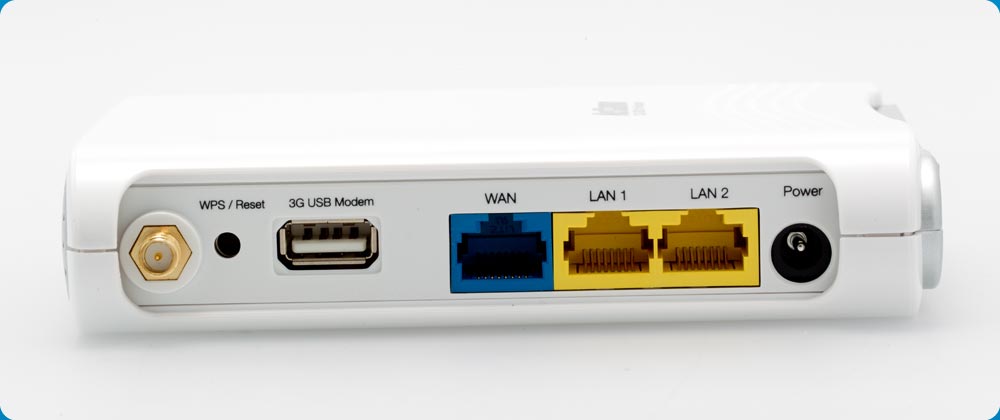

Wide and local Ethernet.

Establish an alternate connection to a fixed line xDSL or cable Internet service via the Ethernet WAN port in areas with a weak 3G signal and enjoy high-bandwidth activities such as video and music streaming using the 2 Ethernet LAN ports for wired device connectivity.

Technical Specifications

HARDWARE

  • MCU – RT3050, 320MHz embedded RF/MAC/BBP
  • Memory – Flash 8MB, SDRAM 32MB
  • WAN Port – 1x 10/100 Fast Ethernet port
  • LAN Port – 2x 10/100 Fast Ethernet port
  • USB 2.0 Port (for 3G USB Data Modem)
  • WPS / Reset Button
  • Detachable Antenna
  • LED – Power/3G/WAN/Internet/Wireless/LAN1/LAN2

WIRELESS

Standard
  • IEEE 802.11b/g/n compliant
Frequency
  • 2.400~2.484 GHz
Antenna
  • 2dBi Detachable Antenna with SMA connector
Security
  • WEP 64/128 bit
  • WPA/WPA2
  • 802.1x authentication
  • MAC address filtering

SOFTWARE FEATURES

Operation Mode
  • Access Point
  • Router
LAN
  • DHCP Server
  • Static Routing Table
  • UPnP
WAN
  • PPTP
  • PPPoE
  • Static IP
  • DHCP Client
  • Clone MAC
  • 3G
Router
  • Supports xDSL and 3G WAN Access and Auto Fail Over
  • Supports UMTS/HSPA Mobile Internet Service
  • NAT/NAPT IP Sharing
  • Supports DDNS (DynDNS, TZO)
  • DHCP Server
  • Static Routing
  • Dynamic Route
  • Virtual Server mapping
Firewall
  • Anti-DoS Firewall
  • MAC/IP/packet filtering
  • DMZ
  • Port Forwarding
  • Supports Special Applications (Port Triggers)
VPN
  • VPN Pass Through (IPSec/PPTP)
Wireless Features
  • Power Saving (Green technology)
  • Multiple SSID
  • WPS (Wi-Fi Protected Setup)
  • Speed/Bandwidth Monitor
  • WMM
Management
  • Web-based configuration
  • Firmware Upgradeable
  • Administration Password Change
  • System Status and Security Logs
  • NTP server

ENVIRONMENTAL AND PHYSICAL

  • Temperature Range: 0-45°C – Operating, -10-70°C – Storage
  • Humidity (non-condensing): 15%~95%
  • Dimensions: 130mm (L) x 110mm (W) x 28mm (H)
Specifications are subject to change without notice

Downloads

Documentation

Images


Hi-Res - JPG
Lo-Res - JPG

Hi-Res - JPG
Lo-Res - JPG

Hi-Res - JPG
Lo-Res - JPG

Hi-Res - JPG
Lo-Res - JPG

Hi-Res - JPG
Lo-Res - JPG

Firmware

Drivers/Utilities

There are no drivers available for this product.

3G Modem Compatibility

We’re constantly upgrading our devices to support the latest 3G/4G modems, you can check if this device is compatible with your modem in the PDF list below. To ensure maximum compatibility, always make sure you have the latest firmware installed on your device.

Download

Available in selected regions.
